2.5 x 14 1000 PSI FRP Fiberglass Pressure Vessel Membrane Housing + Seawater Membrane SET ( PV-2514SW-SET )
-
Hydrocomponents & Technologies Inc. Seawater membranes and vessels are Made in USA.
-
1 Year Manufacturer's Warranty
-
International Shipping Available!
Please reference table below.

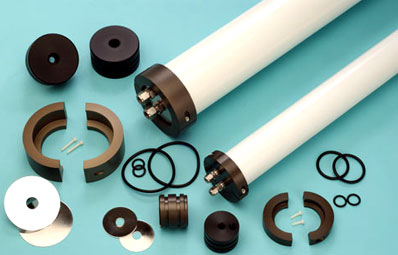

- Durable non-corrosive fiberglass housing in Natural color. (white color finish optional)
- End entry feed and brine ports are standard on all models.
- Anodized Aluminum Retaining Clamp locking devices for easy installation.
- Flush mount Anodized Aluminum or optional Acetal co-polymer end plugs with SS backing plates make fitting installation effortless. Adder applies.
- Maximum separation between permeate port and feed/concentrate port allows the use of large fittings.
- Ethylene propylene FDA approved “O” rings are standard. Silicon and other compounds available upon request.
- Universal style models also manufactured to fit membrane of your choice.
- Other lengths available upon request.
- 2.5 inch Fiberglass vessels (2.5"ID, 2.85"OD, max 1000PSI)
- 4.0 inch Fiberglass vessels (4.0"ID, 4.75"OD, max 1000PSI)
| Model # |
Membrane size |
# of membranes |
OAL (in) |
Feed |
Brine |
Permeate |
| PV-2514SW |
2.5"x14" |
1 |
17" |
1/4" |
1/4" |
1/4" |
| PV-2521SW |
2.5"x21" |
1 |
24" |
1/4" |
1/4" |
1/4" |
| PV-2540SW |
2.5"x40" |
1 |
43" |
1/4" |
1/4" |
1/4" |
| PV-2580SW |
2.5"x40" |
2 |
83" |
1/4" |
1/4" |
1/4" |
| PV-25120SW |
2.5"x40" |
3 |
123" |
1/4" |
1/4" |
1/4" |
| PV-4014SW |
4.0"x14" |
1 |
17" |
1/2" |
1/2" |
1/2" |
| PV-4021SW |
4.0"x21" |
1 |
24" |
1/2" |
1/2" |
1/2" |
| PV-4040SW |
4.0"x40" |
1 |
43" |
1/2" |
1/2" |
1/2" |
| PV-4080SW |
4.0"x40" |
2 |
83" |
1/2" |
1/2" |
1/2" |
