LC LE PRO-4040 FilmTec™ DOW / DuPont 150 PSI 2,750 GPD 4 x 40 inch Membranes
LC LE PRO-4040 FilmTec™ DOW / DuPont 150 PSI 2,750 GPD 4 x 40 inch Membranes
-
FREE SHIPPING to the Continental United States!
-
For Quantity Discounts Contact Us for a Quote!
-
For International Shipping Contact Us for a Quote!
-
Call: 1 (760) 598-0189
-
Email: hctivista@gmail.com
PLEASE REFERENCE DATA SHEET & TABLES BELOW
💧 DuPont FilmTec LC LE PRO-4040 Low Energy RO Membrane
🌟 Product Description & Key Benefits
The DuPont FilmTec LC LE PRO-4040 is a premier, high-surface-area Low Energy (LE) Brackish Water (BWRO) membrane element. It is engineered to deliver high-quality permeate water at a significantly reduced operating pressure, making it the ideal choice for new and existing commercial systems focused on maximizing energy efficiency and lowering operational costs.
-
Low Energy (LE) Performance: Tested and rated at only 150 PSI (10.3 bar), it provides exceptional flow and rejection while using less power than standard BWRO elements (225 PSI).
-
High Flow Output: With a nominal flow rate of 2,750 GPD, this 4-inch element offers a high-productivity solution for light commercial and industrial applications.
-
Superior Rejection: Utilizes FilmTec's advanced technology to achieve a stabilized 99.5% salt rejection, ensuring high-quality purified water output.
-
Standard Size: Fits all standard 4-inch diameter membrane housings.
⚙️ Technical Specifications
| Parameter | Value | Units | Notes |
| Model | LC LE PRO-4040 | N/A | Low Energy, High Productivity |
| Dimensions | 4" Dia. x 40" L | Inches | Standard Commercial Size |
| Active Area | 90 | sq ft | Large surface area for high flow |
| Permeate Flow Rate (Nominal) | 2,750 | GPD | Nominal output at test conditions. |
| Stabilized Salt Rejection | 99.5 | % | Excellent water quality assurance. |
| Test Conditions | 2,000 | ppm NaCl | Standard for Brackish Water RO. |
| Test Pressure | 150 | PSI | Critical: Defines Low Energy (LE) classification. |
⚠️ Critical Operating Limits
| Parameter | Limit | Units |
| Maximum Applied Pressure | 600 | PSI |
| Maximum Operating Temp | 113 | deg F |
| pH Range, Continuous | 2 – 11 | pH |
| Maximum Feed Water SDI15 | 5.0 | N/A |
| Maximum Chlorine Conc. | < 0.1 | ppm |

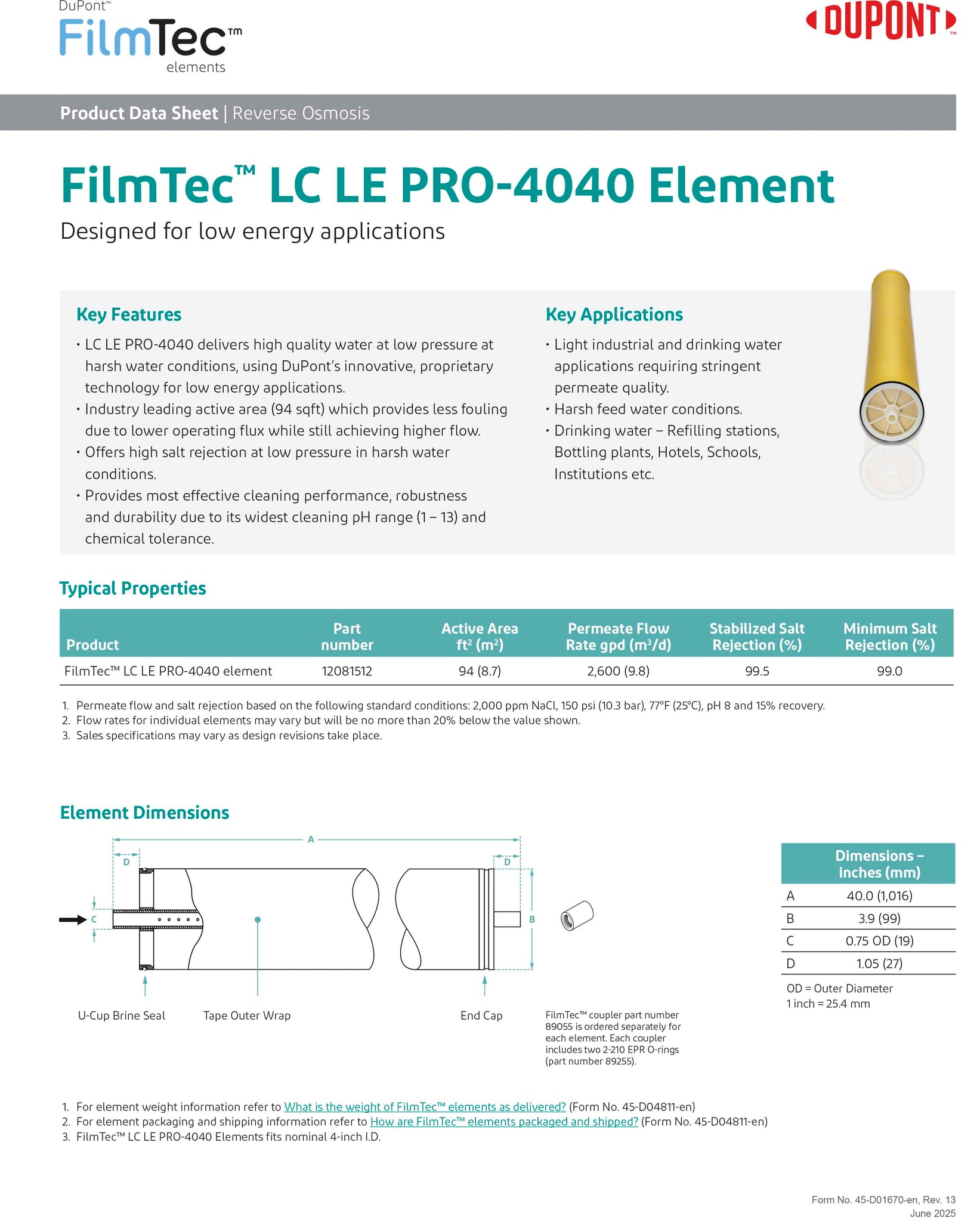

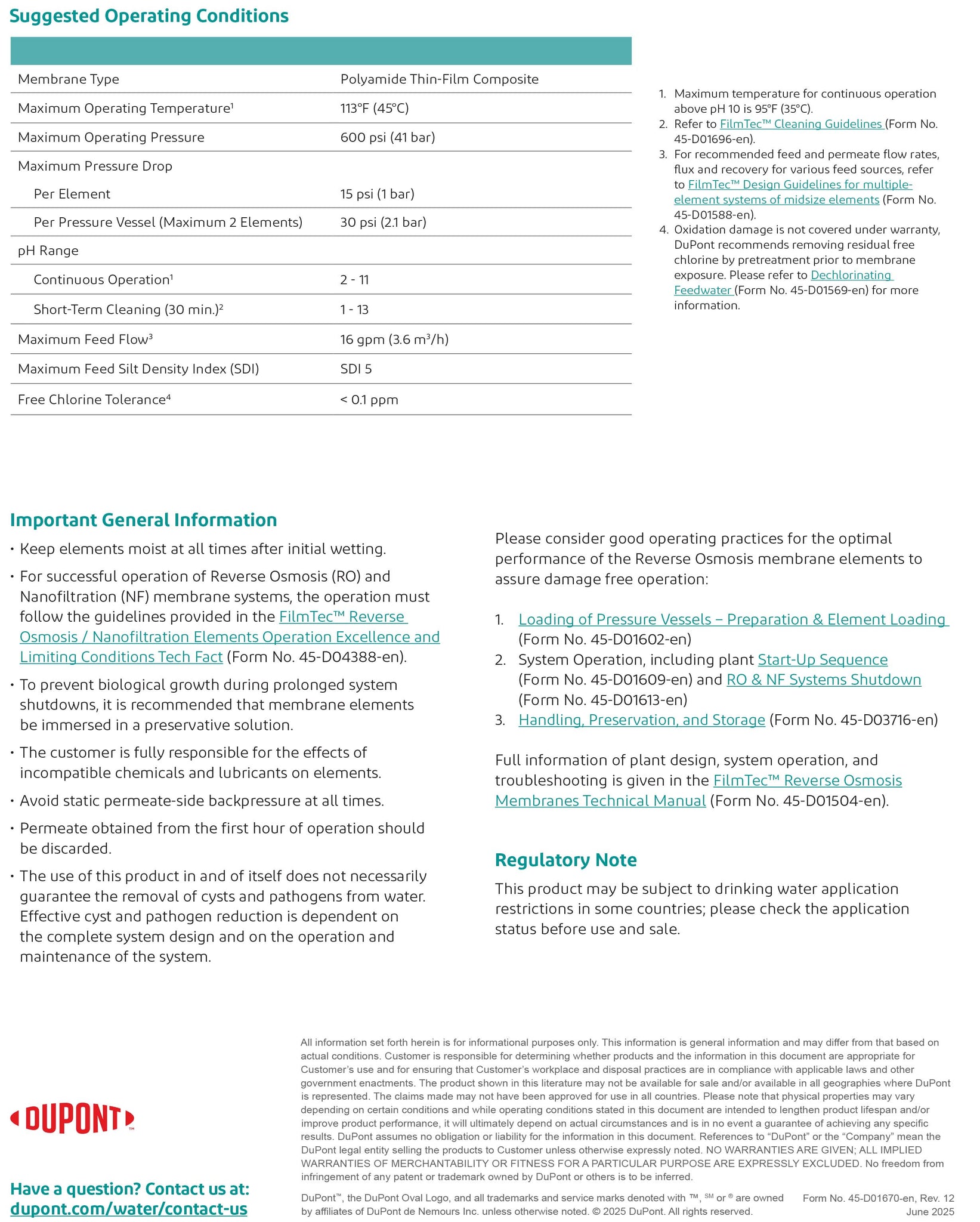

To View Data Sheet Larger, Right Click Data Sheet and Select "Open Image in New Tab"
