230 Cat Pump 2.3 gpm / 8.7 lpm 1500 PSI 1/2" NPT(F) Inlet Port Size 3/8" NPT(F) Discharge Port Size 1725 RPM Belt, Clutch, Flexible Coupling and Bellhousing Drive Type(s) Brass

🛠️ CAT 230 Brass Plunger Pump

🌟 Product Description

The CAT Pump Model 230 is a highly popular, dependable triplex (three plunger rods) Plunger Pump designed for continuous, industrial-duty operation across various applications including medium-capacity Reverse Osmosis (RO), pressure cleaning, and industrial lubrication. This pump is constructed with a durable Forged Brass manifold, 304 stainless steel valve assemblies, and solid ceramic plungers, providing a robust solution where high flow rates and high pressure are required. The triplex design ensures smooth, low-pulsation flow, extending seal life and minimizing system wear.

• High-Pressure Capability: Capable of generating up to 1,500 PSI, suitable for a wide range of commercial and industrial processes.

• Reliable Flow: Delivers a maximum flow rate of 2.3 GPM, balancing power and efficiency for commercial systems.

• Proven Durability: Features a corrosion-resistant brass manifold and precision-machined solid ceramic plungers.

• Installation Flexibility: The 1725 RPM speed is compatible with multiple drive options, including belt-drive and direct-drive setups (with coupling).

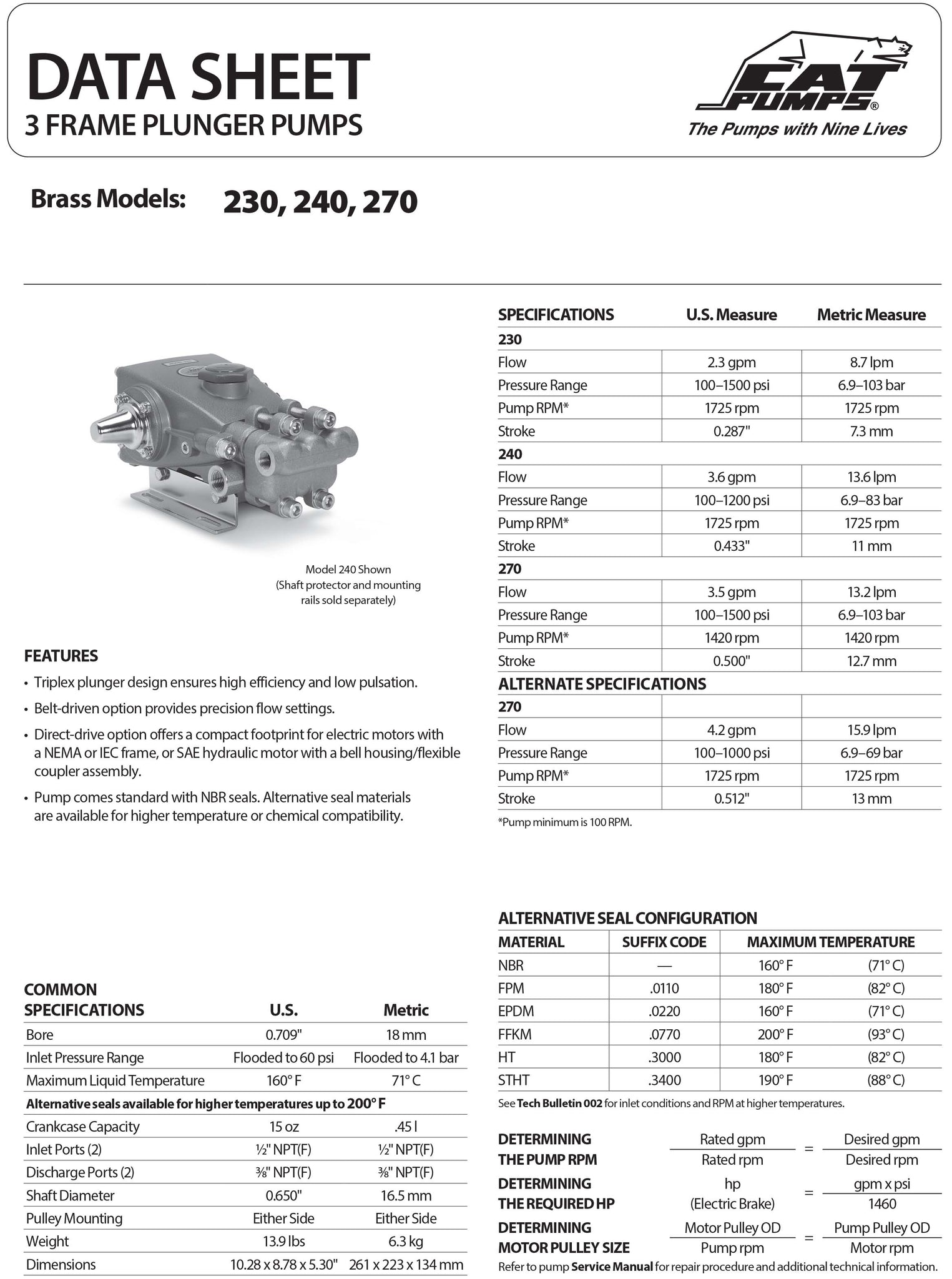

⚙️ Technical Specifications
