2SF25SEEL Cat Pump 2.5 GPM / 9.5 LPM 1200 PSI 3/8" NPT(F) 1725 RPM Direct Drive 316 Stainless Steel

🛠️ CAT 2SF25SEEL 316SS Direct Drive Plunger Pump

🌟 Product Description

The CAT 2SF25SEEL is a robust, standard-flow triplex Plunger Pump end, featuring the corrosion-resistant 316 Stainless Steel manifold ideal for use in harsh environments such as high-salinity brackish water and standard seawater Reverse Osmosis (RO) systems. This pump is a workhorse for mid-size commercial applications, providing reliable pressure up to 1,200 PSI. Its innovative hollow-shaft design allows for direct mounting onto a 56C-face electric motor, resulting in a compact, reliable, and space-saving power unit for demanding industrial and water treatment installations.

• Commercial Standard: Delivers a reliable flow rate of 2.5 GPM, suitable for standard commercial systems up to approximately 1,200 GPD RO output.

• High-Pressure Durability: Rated for maximum pressure of 1,200 PSI, perfect for both BWRO and SWRO requirements.

• Corrosion Protection: Constructed with a 316 Stainless Steel fluid end and solid ceramic plungers to ensure maximum lifespan when handling corrosive feedwater.

• Simplified Installation: Direct-drive capability eliminates the need for complex belt or pulley systems.

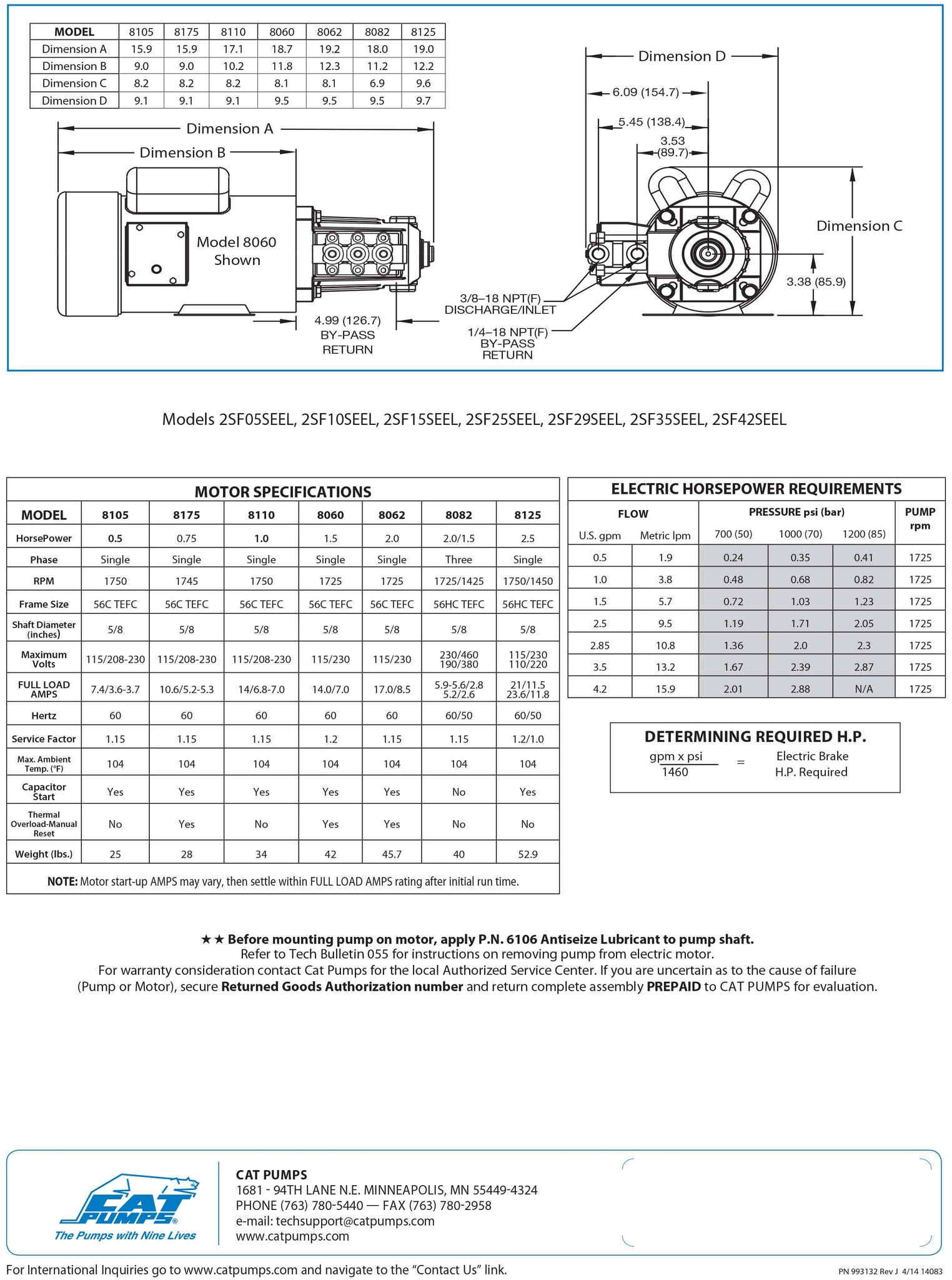

⚙️ Technical Specifications
