3531CHS CAT Pump 36 gpm / 136 lpm 1200 PSI 800 RPM Belt, Flexible Coupling and Bellhousing Drive(s) 316 Stainless Steel 1 1/2" NPT(F) Inlet Port Size 1" Discharge Port Size
3531CHS CAT Pump 36 gpm / 136 lpm 1200 PSI 800 RPM Belt, Flexible Coupling and Bellhousing Drive 316 Stainless Steel 1 1/2" NPT(F) Inlet Port Size 1" Discharge Port Size
-
FREE SHIPPING to the Continental United States!
-
For Quantity Discounts Contact Us for a Quote!
-
For International Shipping Contact Us for a Quote!
-
Call: 1 (760) 598-0189
-
Email: hctivista@gmail.com

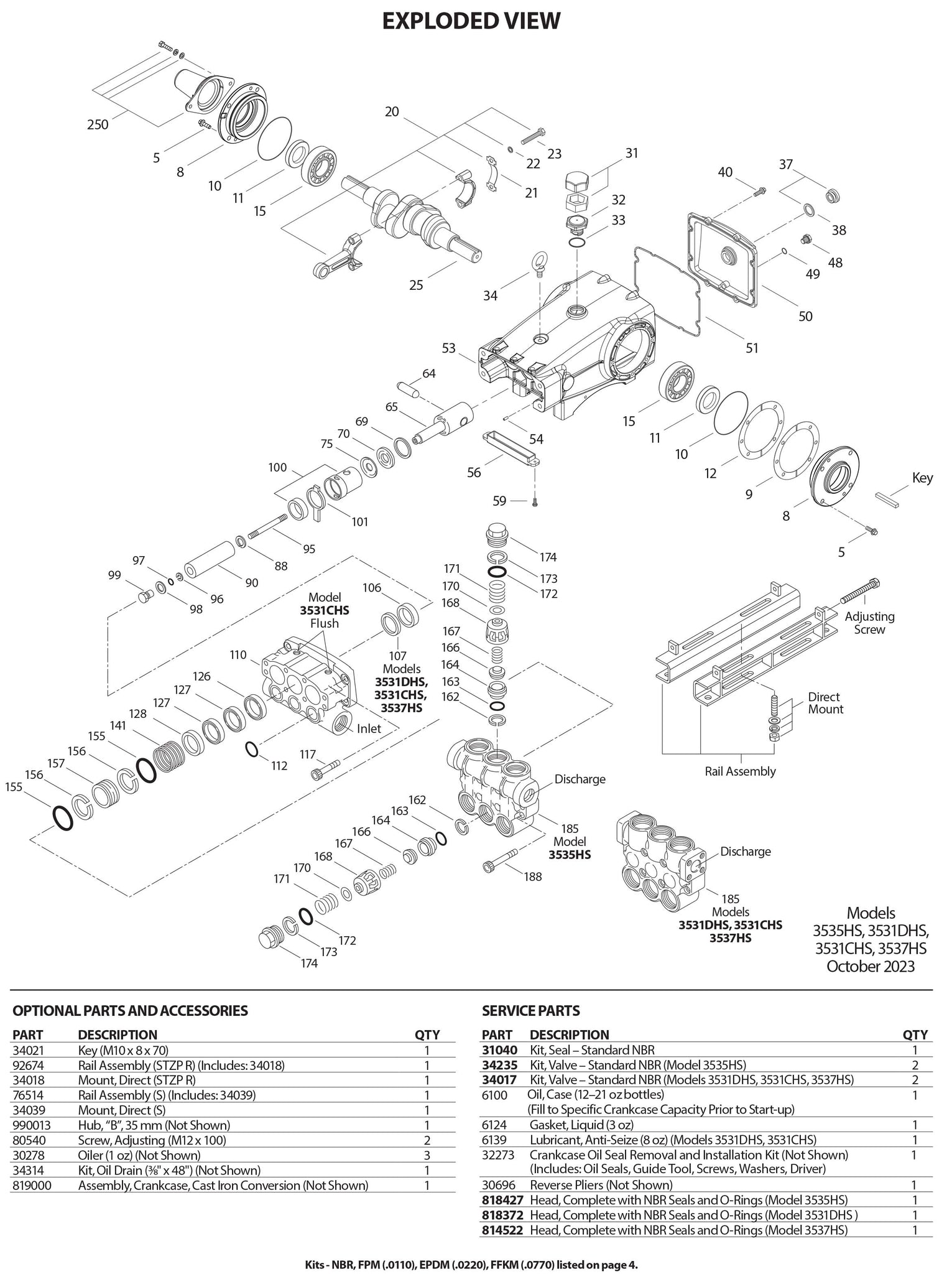

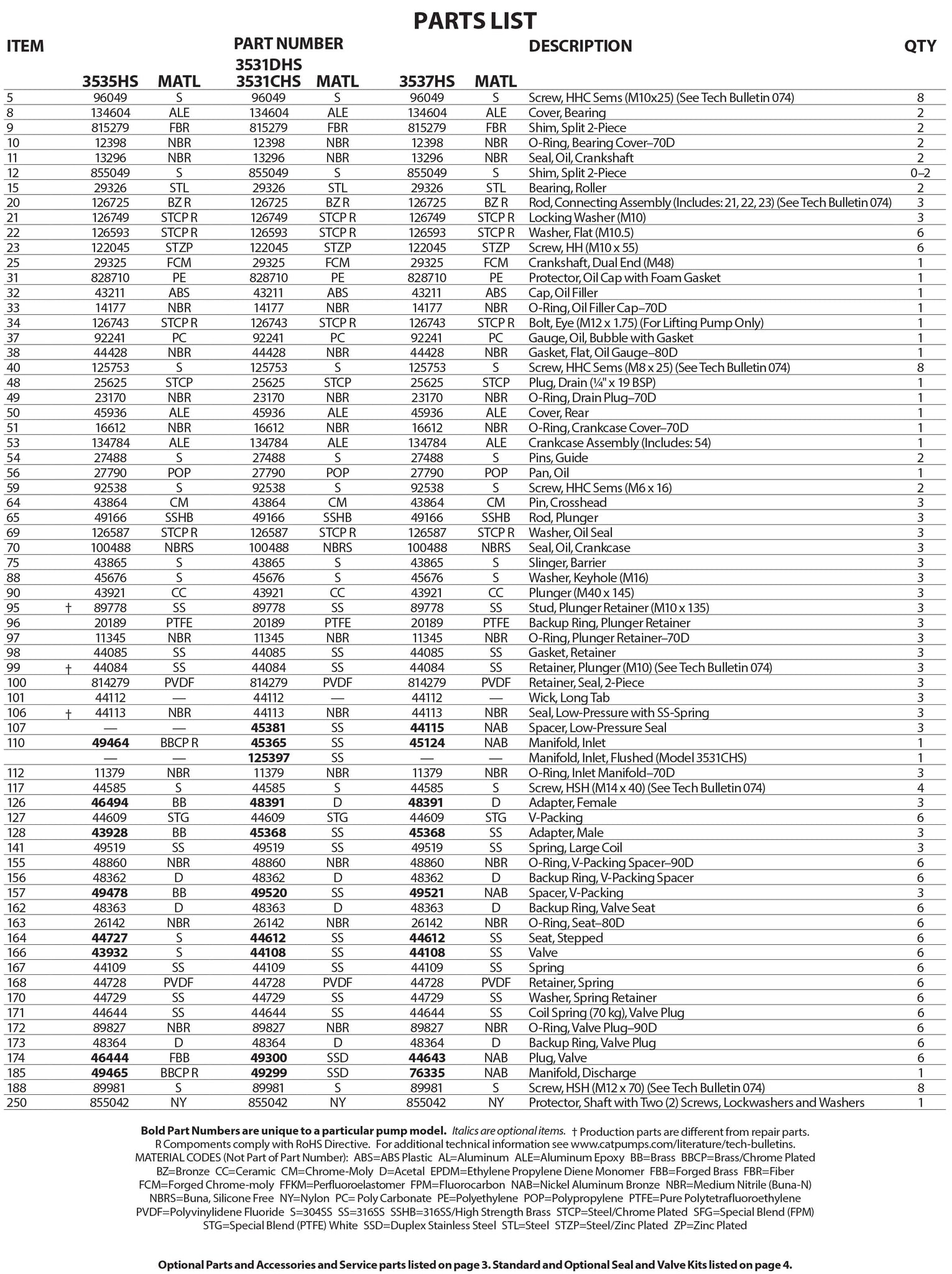

PLEASE REFERENCE DATA SHEETS & TABLES BELOW
CAT 3531CHS (Flushed Stainless Steel Plunger Pump)
📝 Product Description
The CAT Pumps Model 3531CHS is an industrial-grade, 35-Frame triplex plunger pump designed for high-capacity, heavy-duty applications. It is constructed with a durable 316 Stainless Steel manifold and solid ceramic plungers, providing superior corrosion resistance for demanding tasks like high-volume reverse osmosis, saltwater injection, and chemical processing.
The key feature of the 3531CHS is its flushed inlet manifold (indicated by the 'C'), which allows for an external liquid source to provide added lubrication and cooling to the seals when pumping low-lubricity liquids (like deionized water) or high-temperature fluids. Rated for a maximum continuous flow of 36 GPM and pressure up to 1,200 PSI, this pump ensures high efficiency, low pulsation, and extended seal life, making it a reliable choice for continuous industrial operation.
📋 Specifications Table

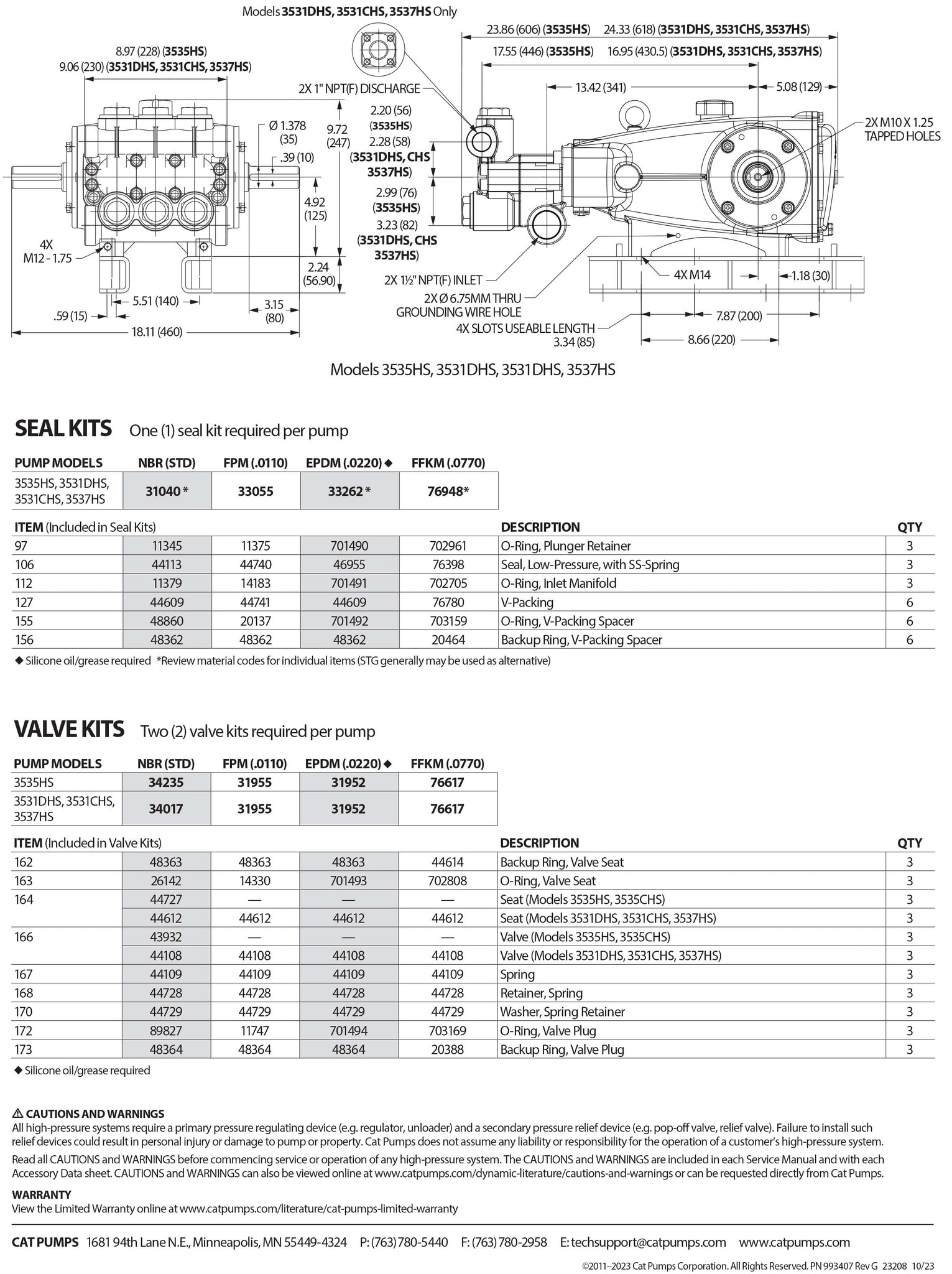

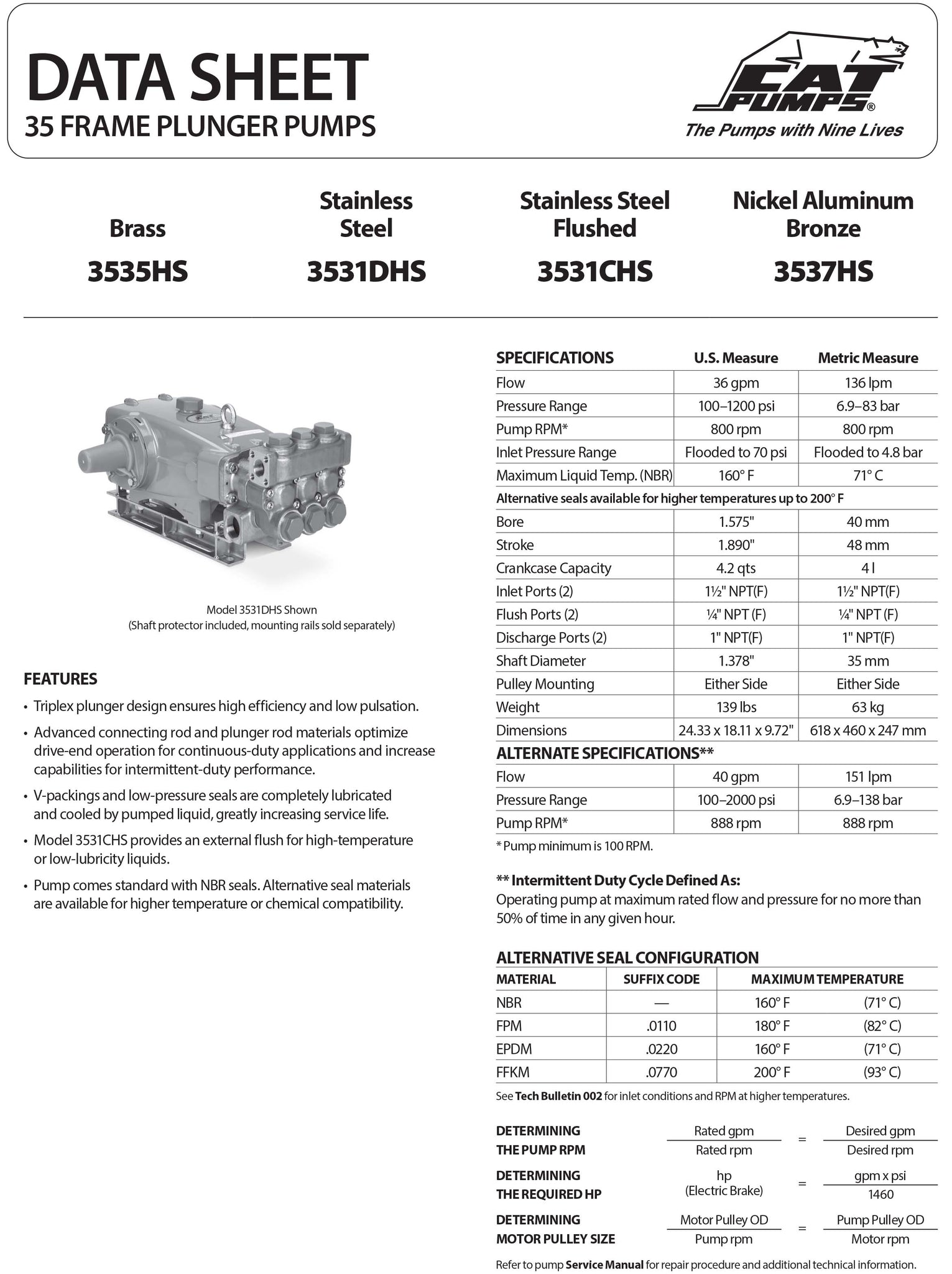

To View Data Sheet Larger Right Click Sheet and Select Open Image in New Tab
