BW30-2540 FilmTec™ DOW / DuPont 225 PSI 1000 GPD 2.5 x 40 membranes

Hydrocomponents & Technologies Inc.

$207.00

Description

Description

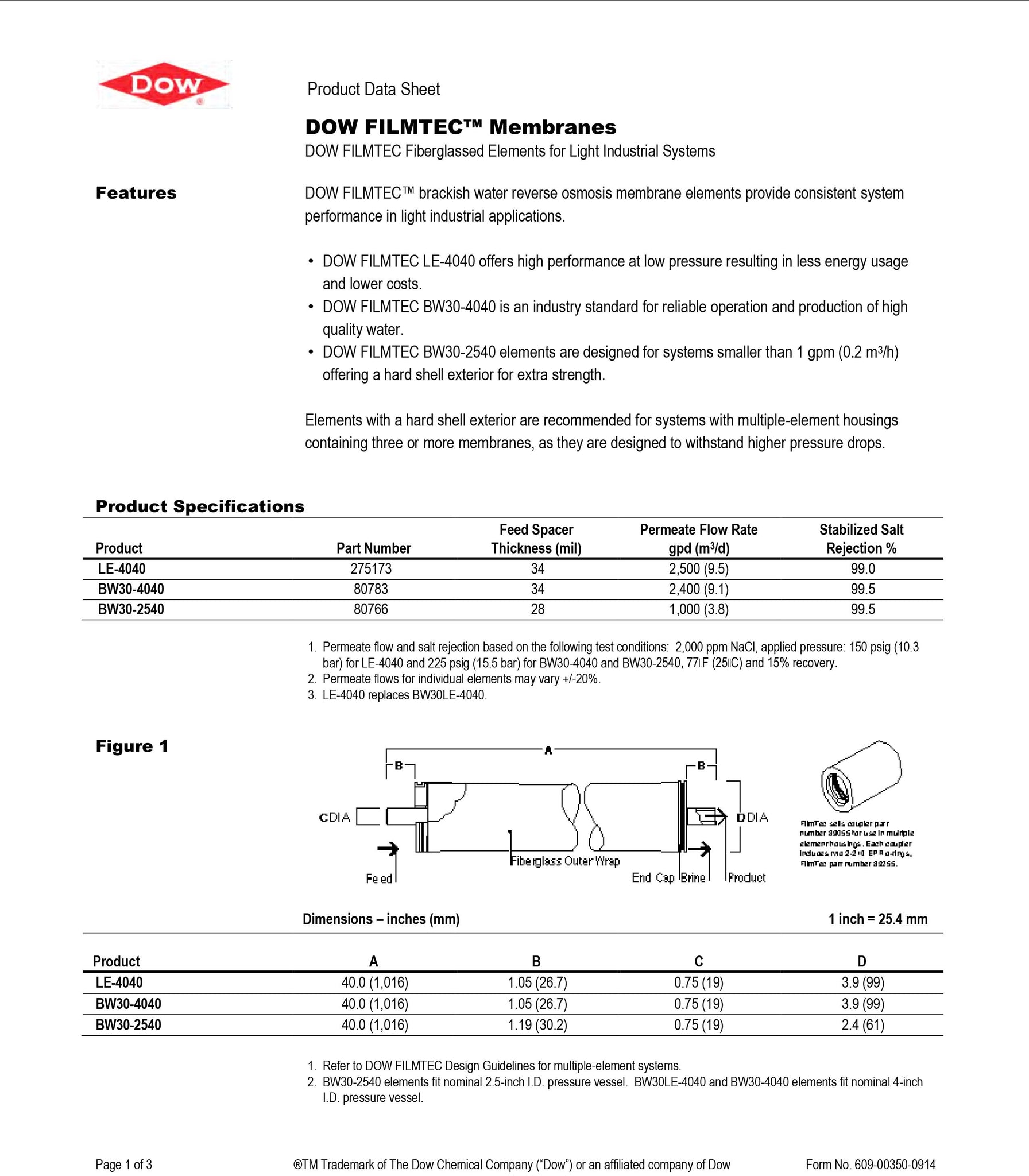

PLEASE REFERENCE DATA SHEETS AND TABLE BELOW

💧 DuPont FilmTec™ BW30-2540 Brackish Water RO Element

Product Description

The DuPont FilmTec™ BW30-2540 is a reliable, high-rejection Brackish Water Reverse Osmosis (BWRO) element engineered for commercial and light industrial applications. This standard $2.5 \text{ inch} \times 40 \text{ inch}$ element utilizes FilmTec's proprietary thin-film composite (TFC) membrane.

The element delivers a nominal permeate flow of $1,000 \text{ Gallons Per Day (GPD)}$ with a stabilized salt rejection rate of $99.5\%$ (tested against $2,000 \text{ ppm NaCl}$ at $225 \text{ PSI}$ ). The BW30-2540 is suitable for smaller systems, offering a durable hard shell exterior for extra strength in systems with multiple elements per housing.

Specifications Table

Characteristic	Specification	Units / Notes
Model	BW30-2540	Brackish Water RO (BWRO)
Manufacturer	DuPont FilmTec™	-
Membrane Type	Polyamide Thin-Film Composite	TFC
Element Dimensions (Nominal)	$2.5 \times 40$	inches (Diameter x Length)
Active Area	28 (2.6)	sq ft (sq m)
Permeate Flow Rate (Nominal)	1,000 (3.8)	GPD (m³/day). $\pm 20\%$ tolerance
Stabilized Salt Rejection	$99.5$	$\%$ (Minimum $99.4\%$ )
Applied Pressure (Test)	225 (15.5)	PSI (Bar)
Max Operating Pressure	600 (41)	PSI (Bar)
Max Feed Flow Rate	6 (1.4)	GPM (m³/hr)

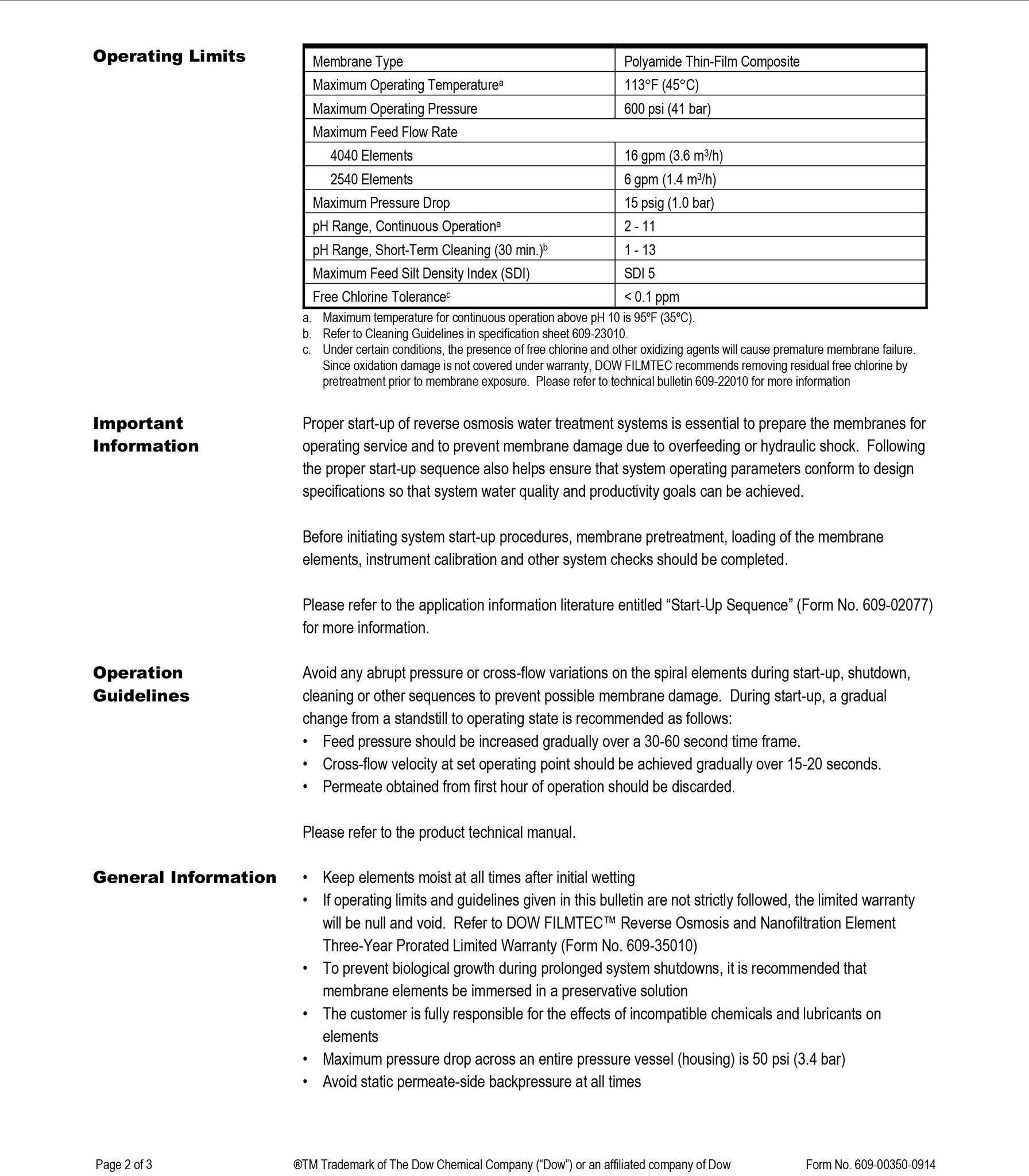

TO VIEW DATA SHEETS LARGER RIGHT CLICK SHEET AND SELECT OPEN IMAGE IN NEW TAB
