⚙️ CAT Pumps 2560BH Plunger Pump
The CAT Pumps 2560BH is a specialized industrial Triplex Plunger Pump designed for direct-drive applications using a bell housing. As a positive displacement pump, it ensures a consistent and reliable flow rate, critical for continuous-duty performance. Unlike the standard 2560, the 2560BH features a modified, unpainted bearing cover specifically machined to mate with an SAE C hydraulic bell housing, making it the ideal choice for compact, hydraulic-driven systems in High-Pressure Wash and hydro-excavating equipment.
Built for heavy-duty resilience, this model is constructed with a Forged Brass inlet manifold and a Brass block-style discharge manifold, along with 304 Stainless Steel valve assemblies for robust corrosion resistance. It utilizes high-density, polished solid ceramic plungers to minimize seal wear and extend maintenance intervals. With a substantial flow rate of 16 GPM and a pressure rating of 3,000 PSI, the 2560BH delivers the high-power performance required for demanding mobile and stationary industrial cleaning tasks.
| SPECIFICATION | DETAILS |
| Model Number | 2560BH |
| Manufacturer | CAT Pumps |
| Pump Type | Triplex Plunger Pump |
| Displacement Type | Positive Displacement |
| Material (Manifold) | Forged Brass (Inlet) / Brass (Discharge) |
| Material (Valves) | 304 Stainless Steel |
| Max Flow Rate | 16 GPM (60.5 LPM) |
| Applied Pressure (Test) | 3000 psi |
| Max Operating Pressure | 3000 psi |
| Max Liquid Temp | 140°F (60°C) |
| Inlet Port Size | 1 1/4" NPT(F) |
| Discharge Port Size | 3/4" NPT(F) |
| RPM | 1510 |

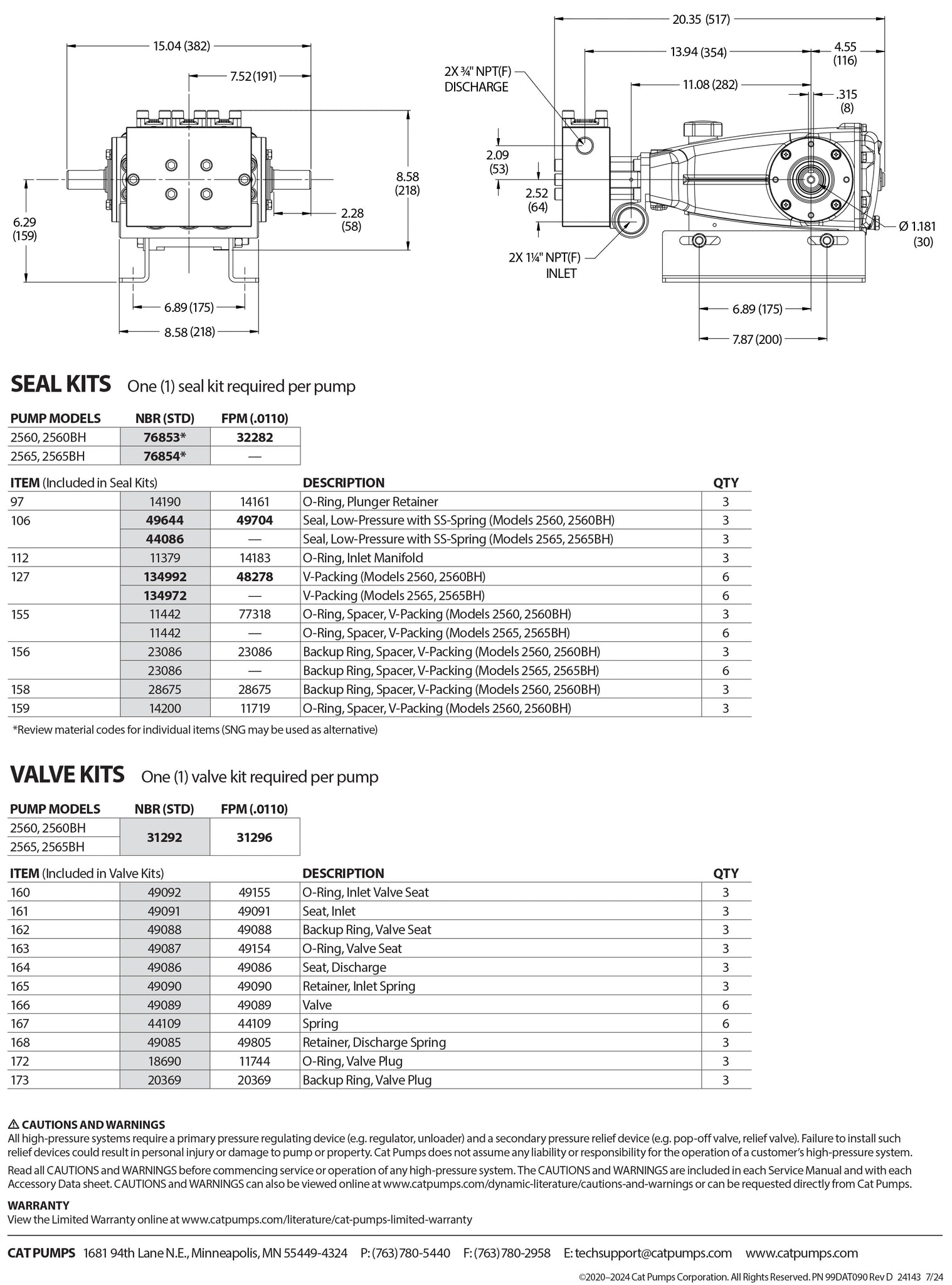

TO VIEW DATA SHEET LARGER RIGHT CLICK SHEET AND SELECT OPEN IMAGE IN NEW TAB
