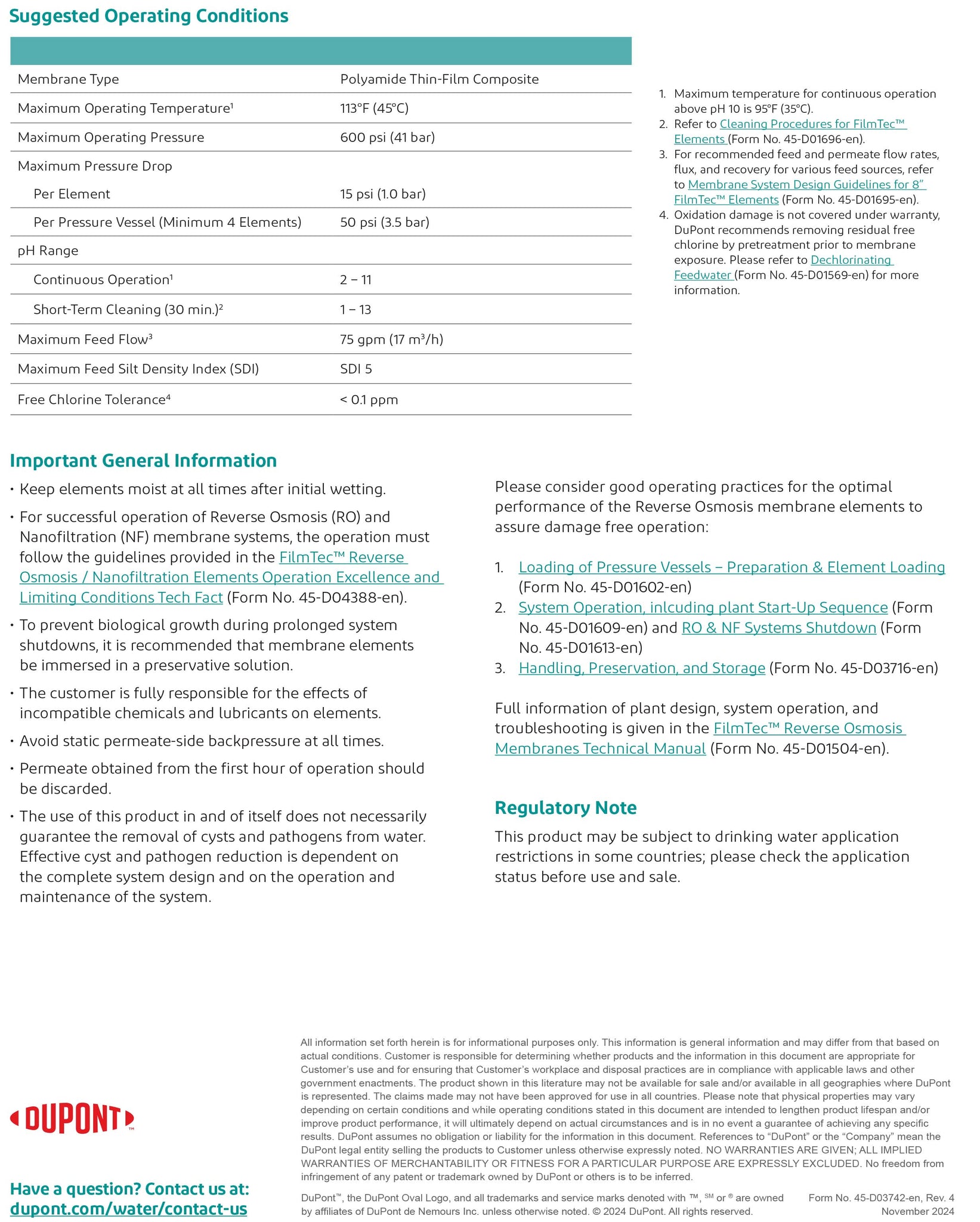

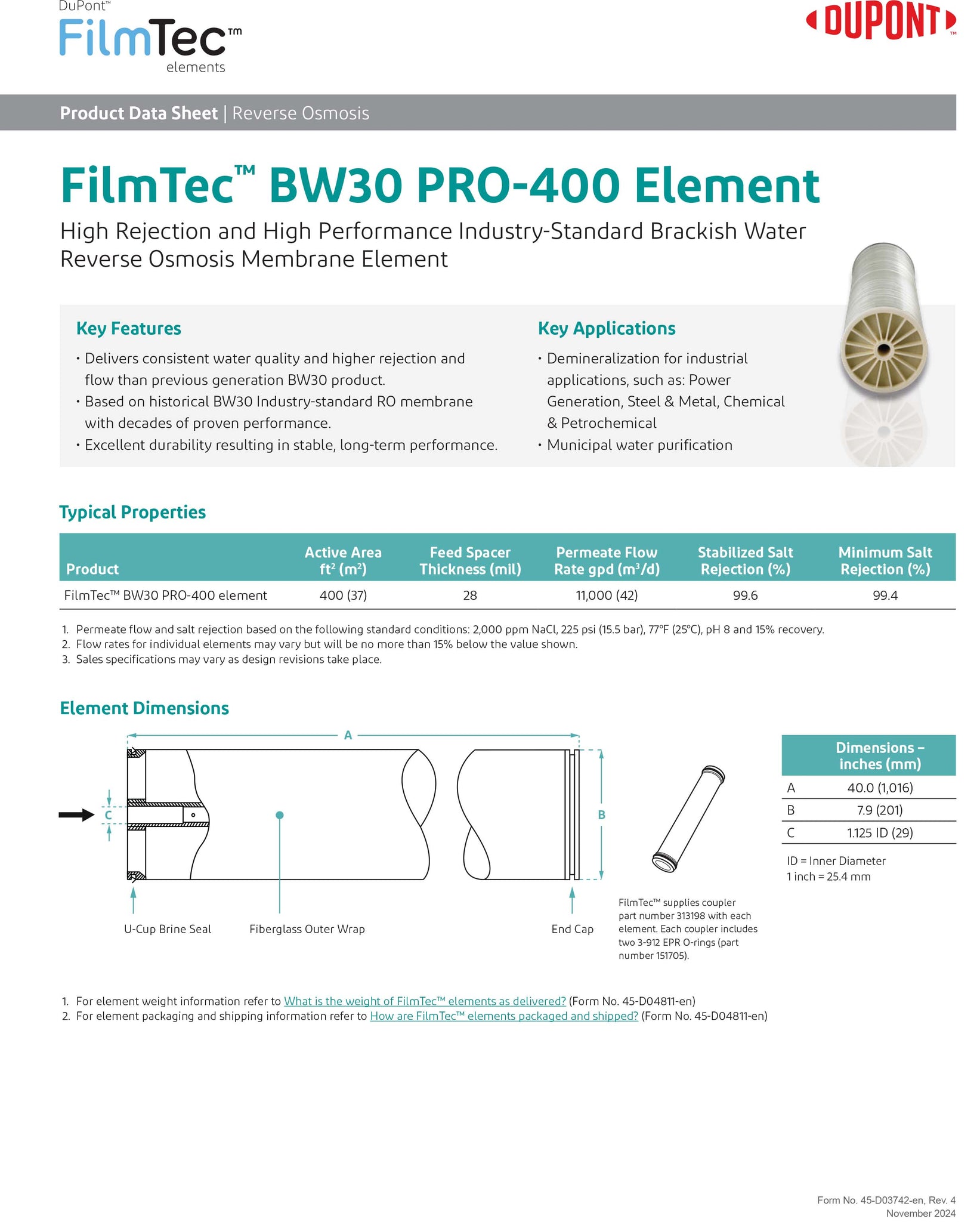

PLEASE REFERENCE DATA SHEETS AND TABLE BELOW

💧 DuPont FilmTec BW30 PRO-400 RO Membrane

Product Description

The DuPont FilmTec BW30 PRO-400 is an industry-standard 8-inch brackish water Reverse Osmosis (RO) element, representing the evolution of the classic BW30 series. Designed for large-scale industrial and municipal water treatment, the PRO-400 delivers high performance and robust durability for challenging feedwaters.

This high-rejection element provides a superior stabilized salt rejection of $99.6\%$ and a nominal flow rate of $11,000 \text{ GPD}$ when tested at $225 \text{ PSI}$ . The BW30 PRO-400 is constructed with a wide cleaning pH range tolerance (pH 1–13), giving operators maximum flexibility and confidence in cleaning procedures to maximize element longevity.

A key feature of the modern PRO series is the incorporation of the iLEC™ interlocking end caps (optional), which streamline element loading, reduce potential for O-ring leaks, and ultimately reduce operating costs and system downtime. The BW30 PRO-400 is ideal for plant managers seeking reliable, consistent water quality with the durability and performance trusted from decades of FilmTec development.

📋 Specifications Table

Characteristic	Specification	Units / Notes
Manufacturer	DuPont / FilmTec	-
Model Number	BW30 PRO-400	Brackish Water (BW)
Element Dimensions	8 x 40	Inch
Nominal Permeate Flow	11,000 (42)	GPD ( $m^3/\text{d}$ )
Stabilized Salt Rejection	99.6	$\%$
Minimum Salt Rejection	99.4	$\%$
Active Membrane Area	400 (37)	$\text{ft}^2 (\text{m}^2)$
Membrane Type	Polyamide Thin-Film Composite	-
Test Pressure	225 (15.5)	PSI (Bar)
Max Operating Pressure	600 (41)	PSI (Bar)
Max Feed Flow Rate	75 (17)	GPM ( $m^3/\text{h}$ )
Max Cleaning pH Range	1 – 13	Superior durability

TO VIEW DATA SHEET LARGER RIGHT CLICK SHEET AND SELECT OPEN IMAGE IN NEW TAB
