ESPA1-LD-4040 Hydranautics Nitto Membranes 150 PSI 2,450 GPD 4 x 40 Inch
ESPA1-LD-4040 Hydranautics Nitto Membranes 150 PSI 2,450 GPD 4 x 40 Inch

ESPA1-LD-4040 Hydranautics Nitto Membranes 150 PSI 2,450 GPD 4 x 40 Inch

Hydrocomponents & Technologies Inc.

Description

ESPA1-LD-4040 Hydranautics Nitto Membranes 150 PSI 2,450 GPD 4 x 40 Inch

  • Free Shipping to the Continental United States!

  • For Quantity Discounts Contact Us for a Quote!

  • For International Shipping Contact Us for a Quote!

  • Call: 1 (760) 598-0189

  • Email: hctivista@gmail.com

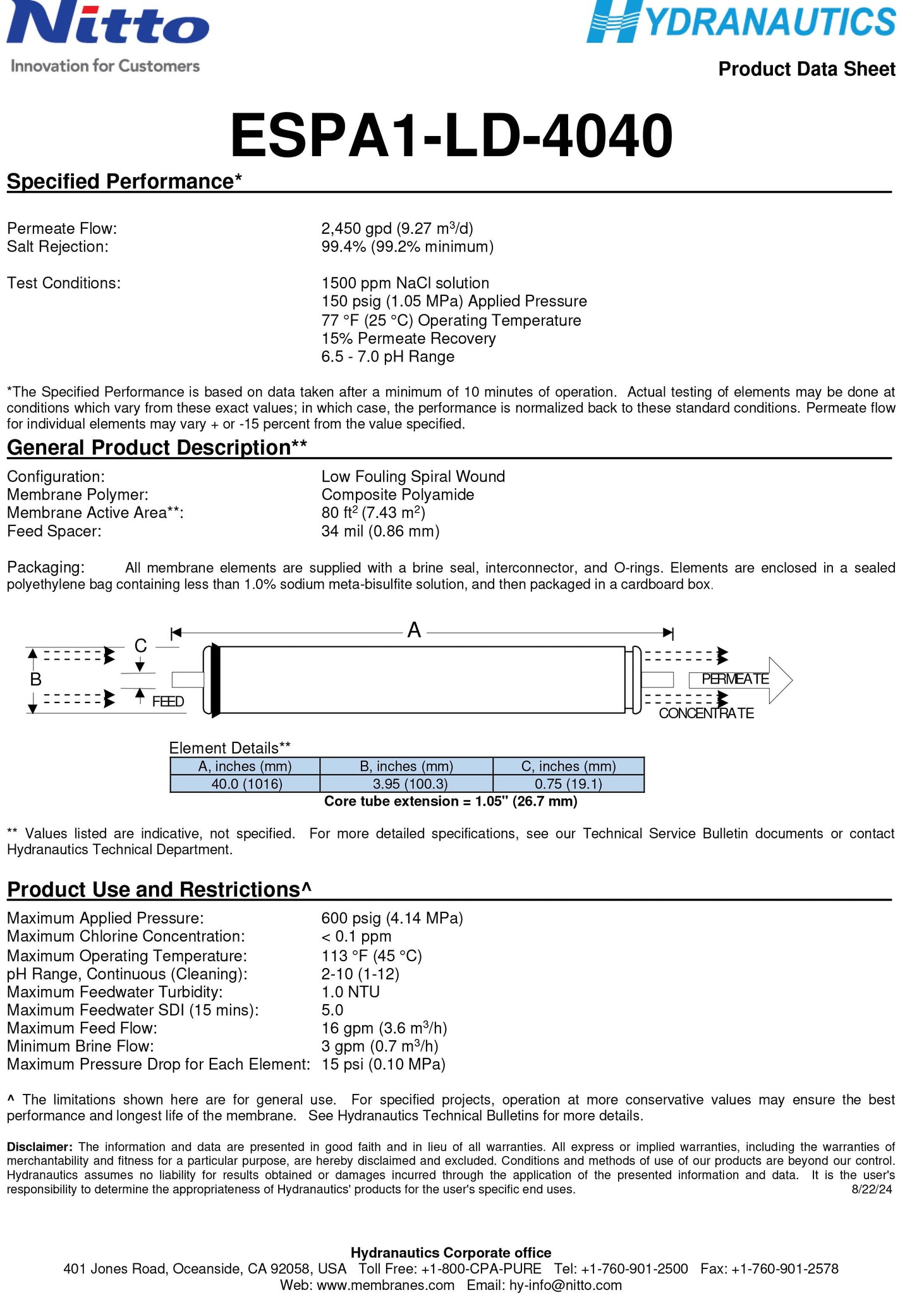

PLEASE REFERENCE DATA SHEET & TABLE BELOW


Product Description



The Hydranautics ESPA1-LD-4040 is a premier 4-inch by 40-inch commercial-grade Reverse Osmosis (RO) membrane element from the Energy-Saving Polyamide (ESPA) series. Designed by Hydranautics (a Nitto Group Company), this low-energy membrane is ideal for the treatment of low Total Dissolved Solids (TDS) brackish water, municipal drinking water, and light industrial applications where high productivity and exceptional energy efficiency are critical.

This membrane features Low Differential (LD) Technology, which utilizes a specialized feed spacer to minimize colloidal fouling. This patented technology helps to maintain consistently low operating pressures over time, extend the time between chemical cleanings, and prolong the overall lifespan of the element. With a high nominal salt rejection rate of and a specified permeate flow of at just test pressure, the ESPA1-LD-4040 delivers a high volume of high-quality permeate while requiring significantly less energy than conventional RO membranes.



Specifications Table



Characteristic Specification Units / Notes
Manufacturer Hydranautics (Nitto) -
Model Number ESPA1-LD-4040 -
Product Type Low-Energy Brackish RO Energy-Saving Polyamide (ESPA)
Size (Dia. x Length) 4 x 40 Inch
Nominal Permeate Flow 2,450 (9.27) GPD ()
Nominal Salt Rejection 99.4
Minimum Salt Rejection 99.2
Active Membrane Area 80 (7.4)
Membrane Polymer Composite Polyamide -
Technology Low Differential (LD) Minimizes colloidal fouling
Max Applied Pressure 600 (4.14) PSI (MPa)
Max Operating Temp 113 (45)
Test Pressure 150 (1.05) PSI (MPa)



TO VIEW DATA SHEETS LARGER RIGHT CLICK SHEET AND SELECT OPEN IMAGE IN NEW TAB






    Model # Diameter x Length GPD Rejection Typical Pressure
    ESPA1-LD-4040 4.0 x 40 2,450 99.% 150
