Description

TM710D Toray 225 PSI 2,600 GPD 4 x 40 inch membranes

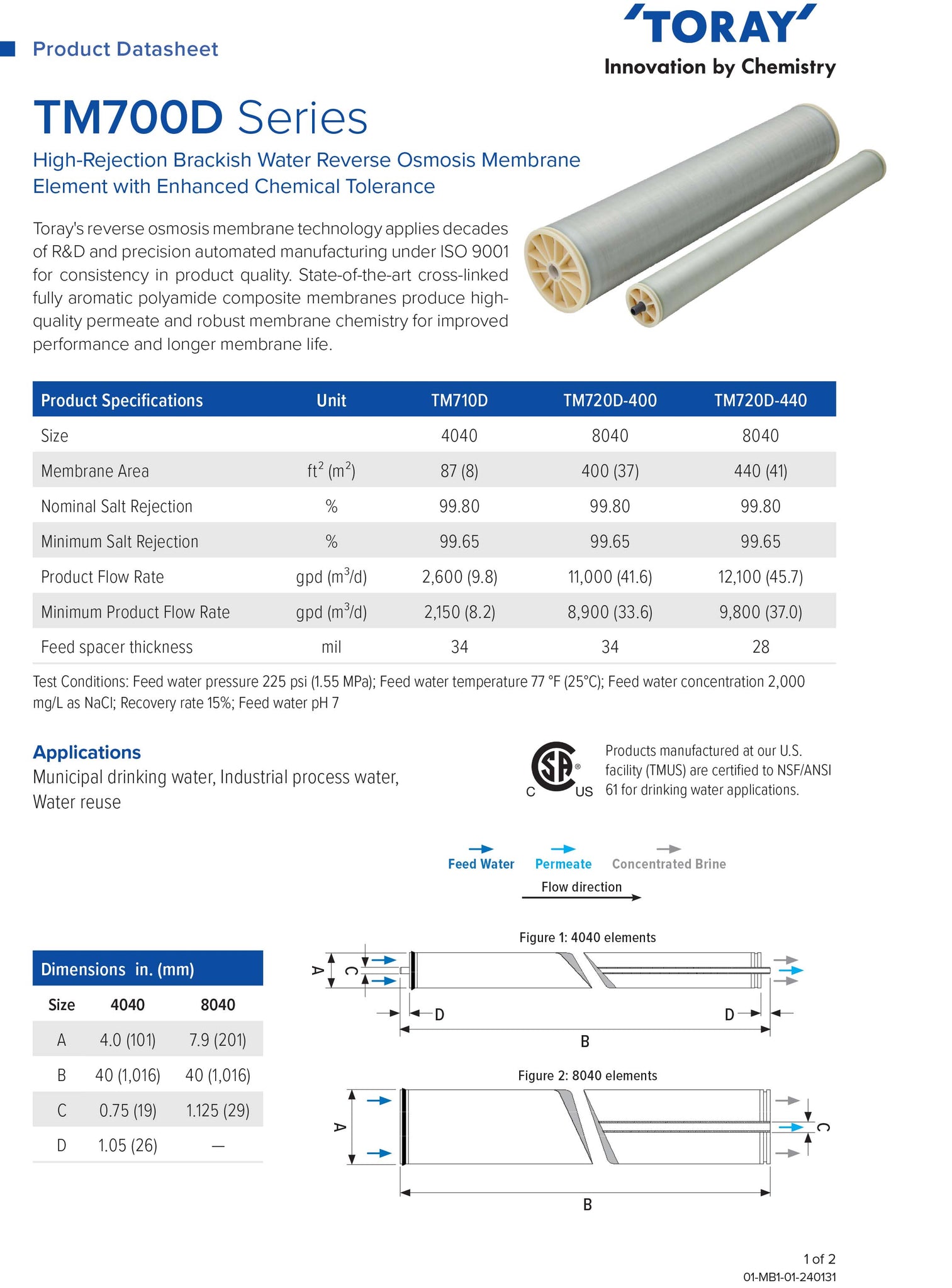

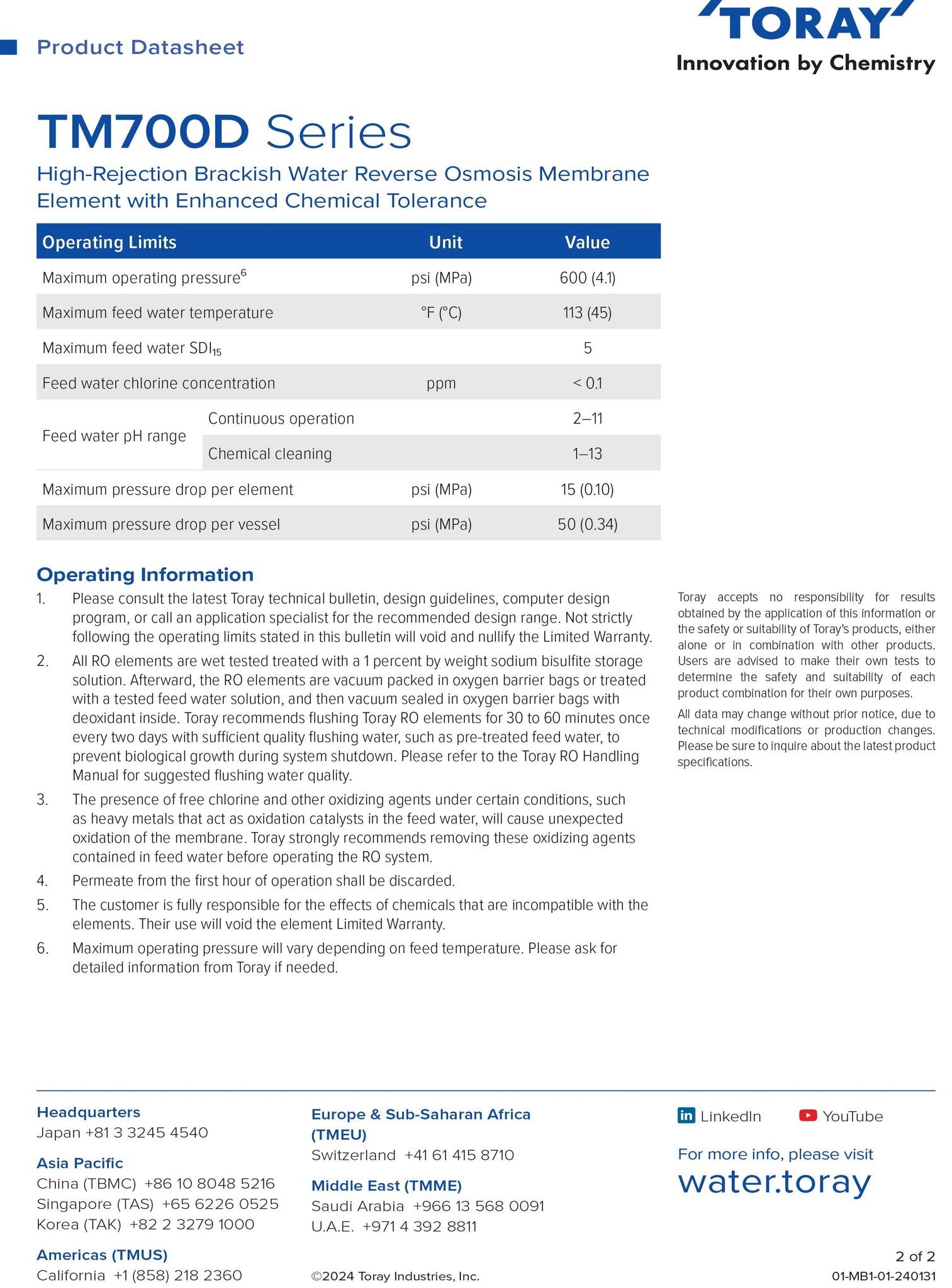

PLEASE REFERENCE DATA SHEETS AND TABLE BELOW



💧 Toray TM710D RO Membrane (4" x 40" / 2600 GPD)



Product Description



The Toray TM710D is a high-performance, high-rejection Brackish Water Reverse Osmosis (BWRO) Membrane Element designed for commercial and light industrial applications. This industry-standard 4-inch by 40-inch size (4040) element is ideal for treating feed water with medium salinity (brackish water), municipal water, and process water.

The membrane utilizes Toray's state-of-the-art Cross-Linked Fully Aromatic Polyamide Composite material, known for its enhanced chemical tolerance and superior durability. It boasts a nominal stabilized salt rejection rate of , ensuring exceptional water purity by removing dissolved solids, organics, and particulates.

Operating efficiently at a low applied pressure of , the TM710D delivers a high permeate flow rate of up to . With a maximum operating pressure of , it offers reliable performance and a long service life while reducing overall energy costs.


📋 Specifications Table



Characteristic Specification Units / Notes
Manufacturer Toray -
Model Number TM710D (TM700D Series) Brackish Water RO Element
Dimensions 4" x 40" Standard Commercial Size
Membrane Type Cross-Linked Aromatic Polyamide Composite Material
Nominal Permeate Flow 2,600 (9.8) GPD (m³/d)
Nominal Salt Rejection 99.80 Percent
Minimum Salt Rejection 99.65 Percent
Applied Test Pressure 225 (1.55) PSI (MPa)
Max Operating Pressure 600 (4.1) PSI (MPa)
Max Feed Water Temp 113 (45) Deg. F (Deg. C)
Active Area 87 (8) sq. ft. ()
Continuous pH Range 2 - 11 -


TO VIEW DATA SHEET LARGER RIGHT CLICK SHEET AND SELECT OPEN IMAGE IN NEW TAB
