TM820C-400 TORAY / CSM Salt Water Membranes 800 PSI 6,500 GPD 8 x 40 inch
TM820C-400 TORAY / CSM Salt Water Membranes 800 PSI 6,500 GPD 8 x 40 inch
-
For Quantity Discounts Contact Us for a Quote!
-
For International Shipments Contact Us for a Quote!
-
Call: 1 (760) 598-0189
-
Email: hctivista@gmail.com
PLEASE REFERENCE DATA SHEET AND TABLE BELOW

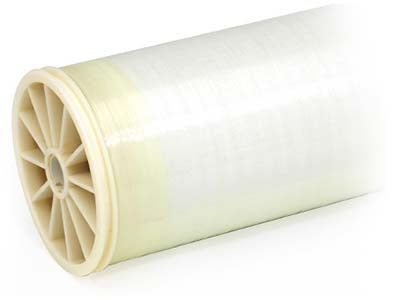

TORAY TM820C-400 (High Rejection Seawater RO Membrane)
📝 Product Description
The TORAY TM820C-400 is an industrial-grade Seawater Reverse Osmosis (SWRO) membrane element, designed for treating high-salinity water sources (typically ppm TDS) with a focus on high-quality permeate. This 8-inch diameter by 40-inch long element utilizes a cross-linked fully aromatic polyamide composite membrane to achieve an impressive stabilized salt rejection of .
📋 Specifications Table
| Characteristic | Specification | Units / Notes |
| Model | TM820C-400 | Seawater RO (SWRO) |
| Membrane Type | Cross-linked Polyamide Composite | Boron Rejection Optimized |
| Element Dimensions (Nominal) | inches | |
| Active Area | 400 (37) | sq ft (sq m) |
| Permeate Flow Rate (Nominal) | 6,500 (24.6) | GPD (m3/day). tolerance |
| Stabilized Salt Rejection | (Minimum ) | |
| Applied Pressure (Test) | 800 (55.2) | PSI (Bar) |
| Max Operating Pressure | 1,200 (83) | PSI (Bar) |
| Max Operating Temperature | 113 (45) | F (C) |
| Continuous pH Range | - | |
| Typical Boron Rejection | (at / 5 mg/L feed) |

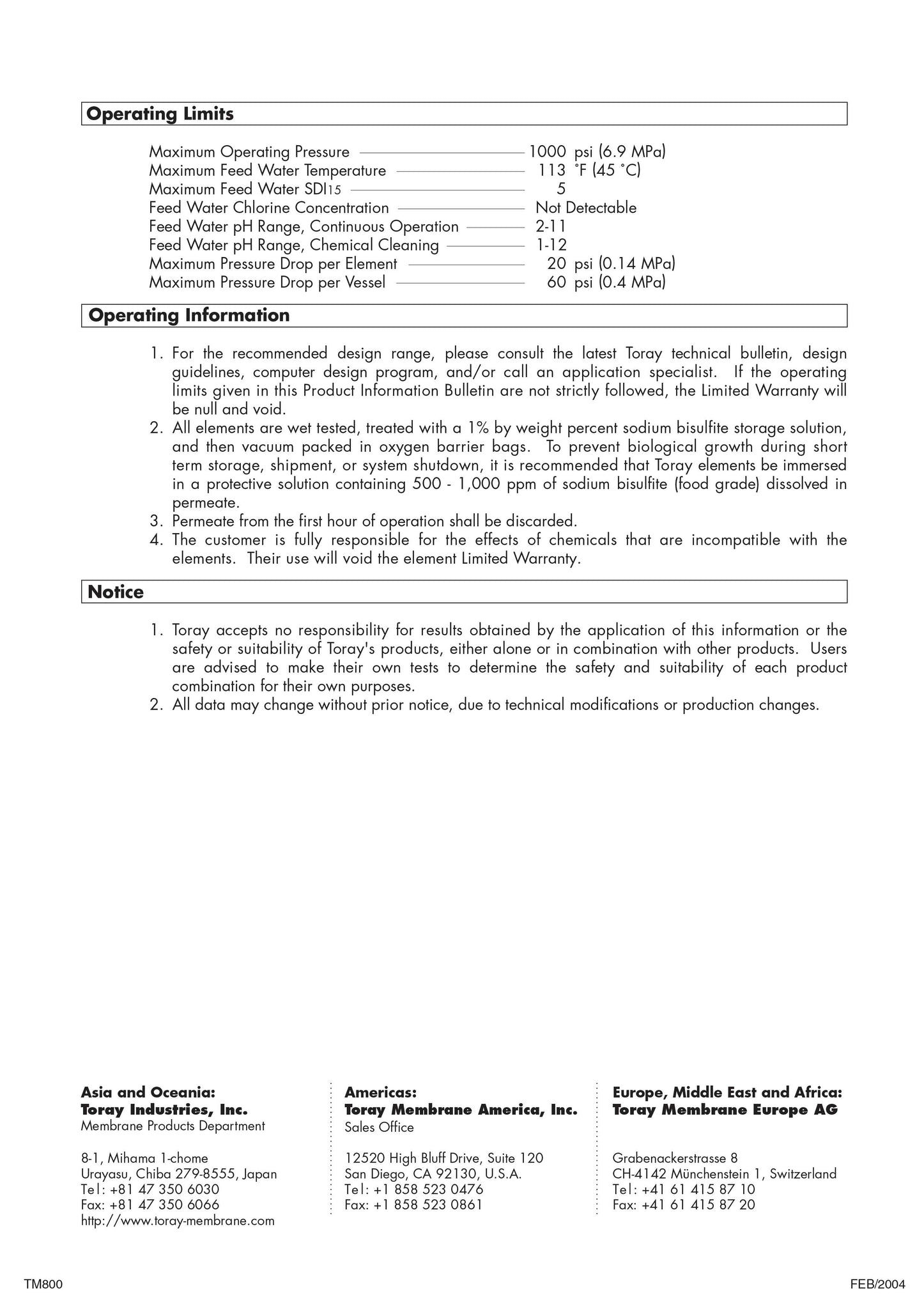

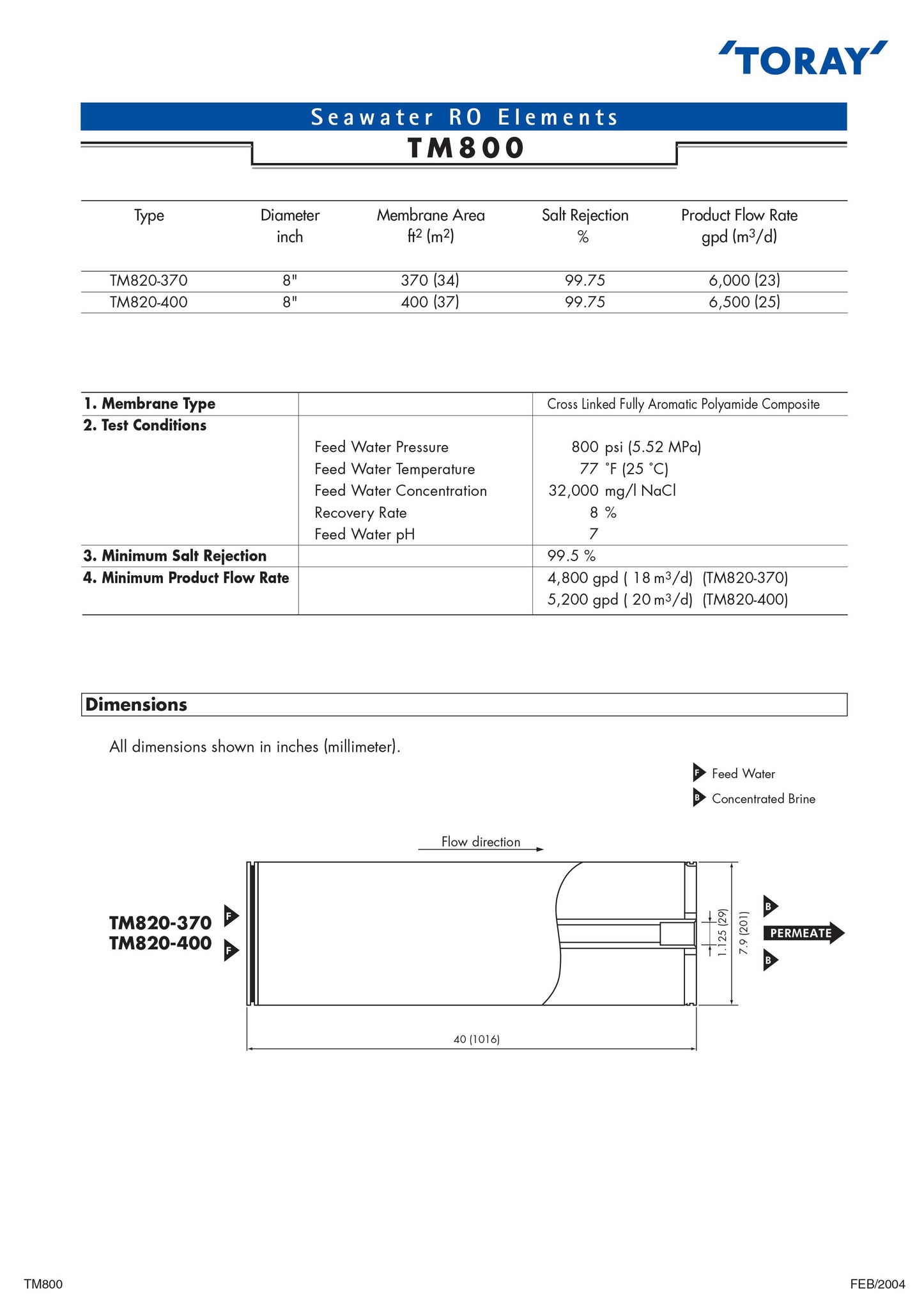

TO VIEW DATA SHEETS LARGER RIGHT CLICK SHEET AND SELECT OPEN IMAGE IN NEW TAB
Highest rejection in the marketplace. Stable performance and reliability.
| 8.0 inch seawater | |||||
| Model # | Flow | Rejection | Feed Spacer | Rated pressure | |
| TM820C-400 | 6500 | 99.75% | 34 | 800 psi(5.52MPa) | |
