TML20D-400 Toray 150 PSI 12,000 GPD 8 x 40 inch Membranes

Hydrocomponents & Technologies Inc.

$595.94

Description

Description

PLEASE REFERENCE DATA SHEETS AND TABLE BELOW

🌐 TORAY TML20D-400 Reverse Osmosis (RO) Membrane Element

The TORAY TML20D-400 is a standard 8-inch Reverse Osmosis (RO) element specifically engineered for treating low salinity brackish water and municipal water sources. Part of the TML (Toray Low Pressure Municipal) series, this element is optimized for excellent performance at ultra-low operating pressures, which drastically reduces energy consumption and operational costs.

This element is manufactured by TORAY Industries, Inc. and is not a CSM membrane. It utilizes a durable cross-linked aromatic polyamide composite material that provides high rejection of salts and organic matter (with 99.7% nominal NaCl rejection) while maintaining a high nominal flow of 12,000 GPD at an applied pressure of just 150 psi. The $400 \text{ft}^2$ of active surface area makes this a high-productivity element suitable for large commercial and industrial systems.

Technical Specifications Summary

SPECIFICATION	DETAILS
Model Number	TML20D-400
Manufacturer	TORAY
Membrane Type	Reverse Osmosis (RO), Low Pressure
Membrane Material	Cross-linked Aromatic Polyamide
Nominal Permeate Flow	12,000 GPD (45.4 $\text{m}^3/\text{d}$ )
Nominal Rejection ( $\text{NaCl}$ )	99.7% (Min 99.6%)
Test Conditions	2,000 ppm NaCl, 150 psi, $77^\circ\text{F}$
Active Area	$400 \text{ft}^2$ ( $37.1 \text{m}^2$ )
Element Size	8.0 in D x 40 in L
Max Applied Pressure	600 psi (4.1 MPa)
Max Operating Temp	$113^\circ\text{F}$ ( $45^\circ\text{C}$ )
Free Chlorine Tolerance	<0.1 ppm

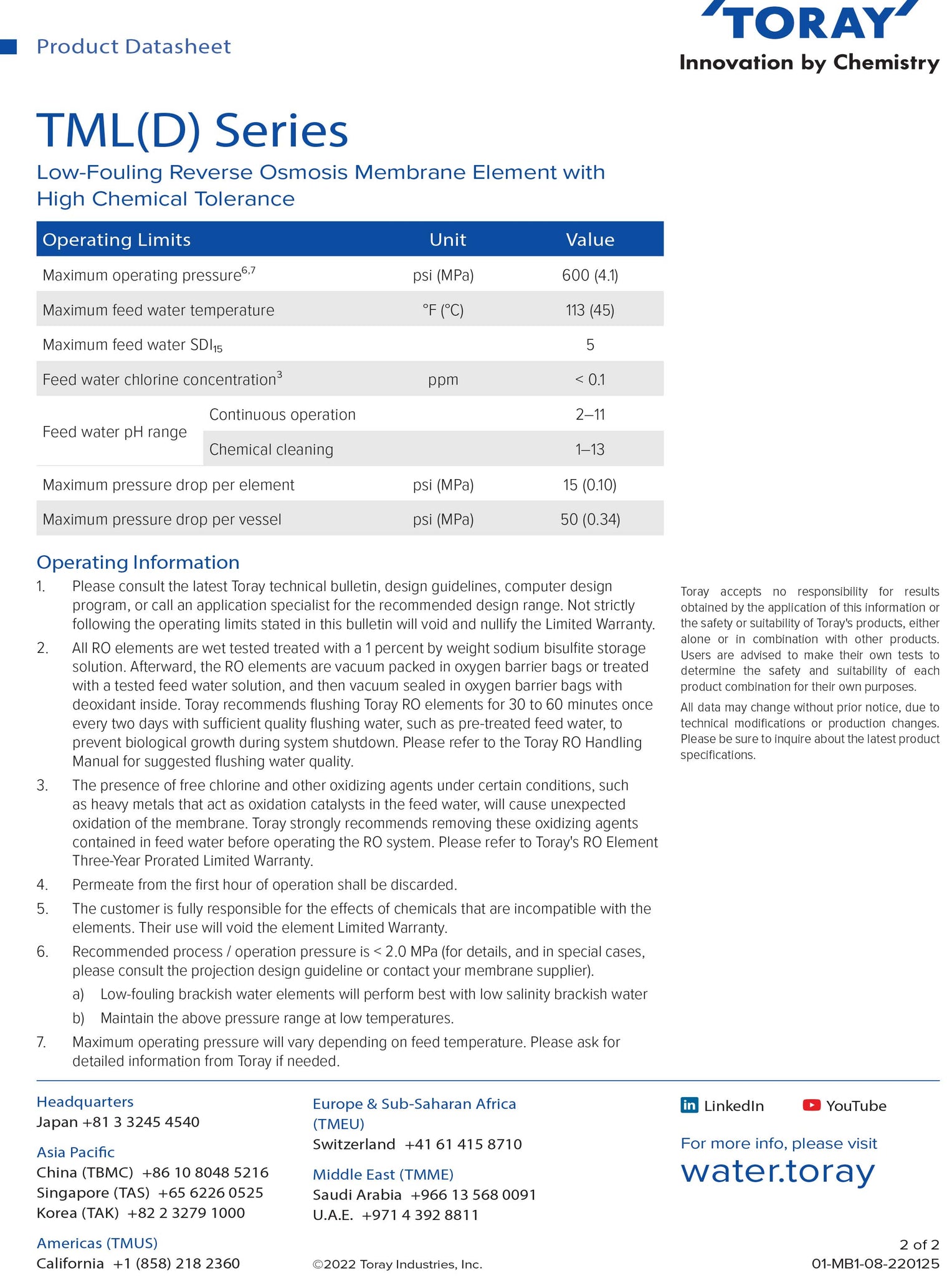

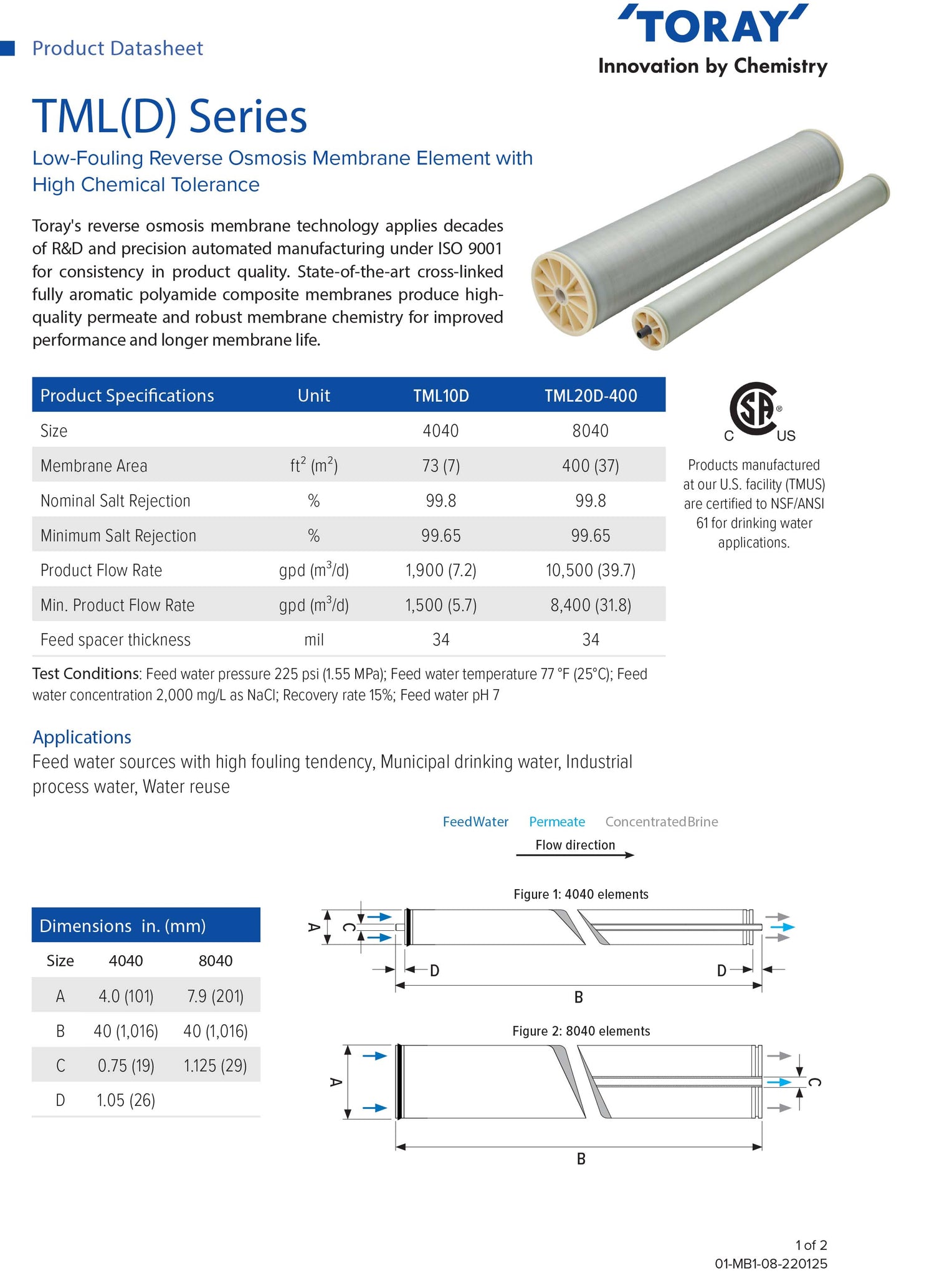

TO VIEW DATA SHEET LARGER RIGHT CLICK SHEET AND SELECT OPEN IMAGE IN NEW TAB
