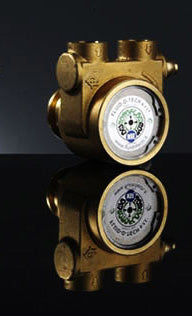

PA 500 Fluid-o-Tech 165 GPH 2.75 GPM No Bypass High Volume Brass Rotary Vane Pump PA0500AN0NN4700
PA 500 Fluid-o-Tech 165 GPH 2.75 GPM No Bypass High Volume Brass Rotary Vane Pump PA0500AN0NN4700
-
For International Shipments Contact Us for a Quote!
-
For Quantity Pricing Contact Us for a Quote!
-
Call: 1 (760) 598-0189
-
Email: hctivista@gmail.com
PLEASE REFERENCE DATA SHEETS & TABLE BELOW
The PO 500-1000 series positive displacement rotary vane pumps are available with brass or stainless steel housing with ½” GAS or NPT ports and internal relief valve. The nominal flow rates range between 500 and 1000 l/h at 1450 rpm. Any vane pumps of this series may be operated at 1725 rpm as well and will provide about 20% more capacity, with a maximum of 320 GPH. Maximum discharge pressure is 230 psi (16 bar). This series mounts directly to widely available NEMA 48Y motor by means of a v-band clamp and to M71, M80 IEC and NEMA 56C motors by means of an adapter and relevant coupling.
| Part # | Bypass | Mount | Body | 1450 RPM | 1725 RPM | Req. HP @ 200 PSI | ||||||
| 100 PSI | 200 PSI | 100 PSI | 200 PSI | |||||||||
| GPH | LPH | GPH | LPH | GPH | LPH | GPH | LPH | |||||
| PA 500 | No | Clamp | Brass | 139 | 526 | 134 | 507 | 165 | 625 | 159 | 602 | 3/4 |
To View Data Sheet Larger Right Click Sheet and Select Open Image in New Tab
