Description

290 CAT Pressure Washer Triplex Positive Displacement Pump 3.5 GPM 1200 PSI , 3 Frame , Brass Block Chrome Plated , Standard Buna-N seals and O-rings

  • Financing Options Available at Checkout via Shop Pay & Paypal!

  • For International Shipments Contact Us for a Quote!

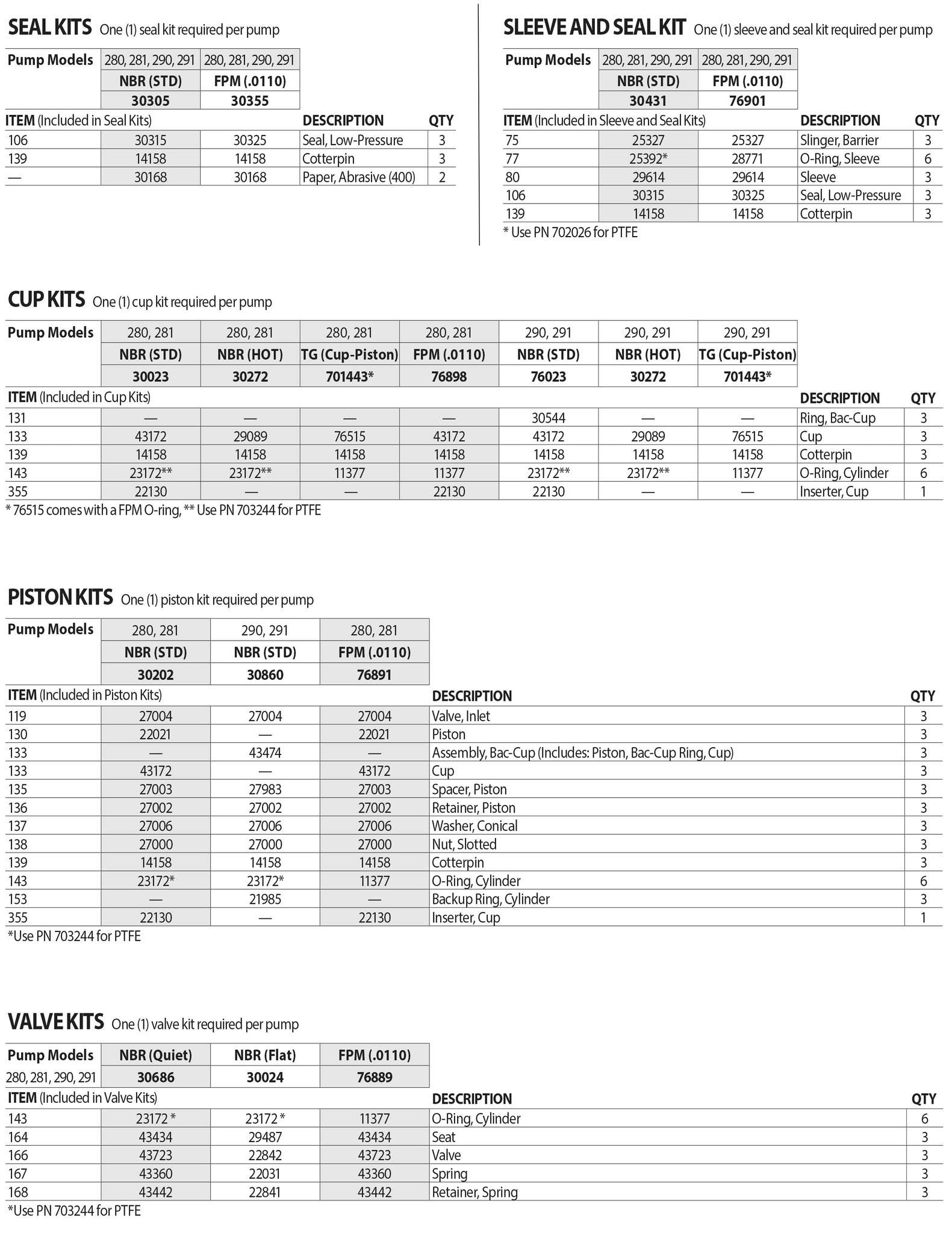

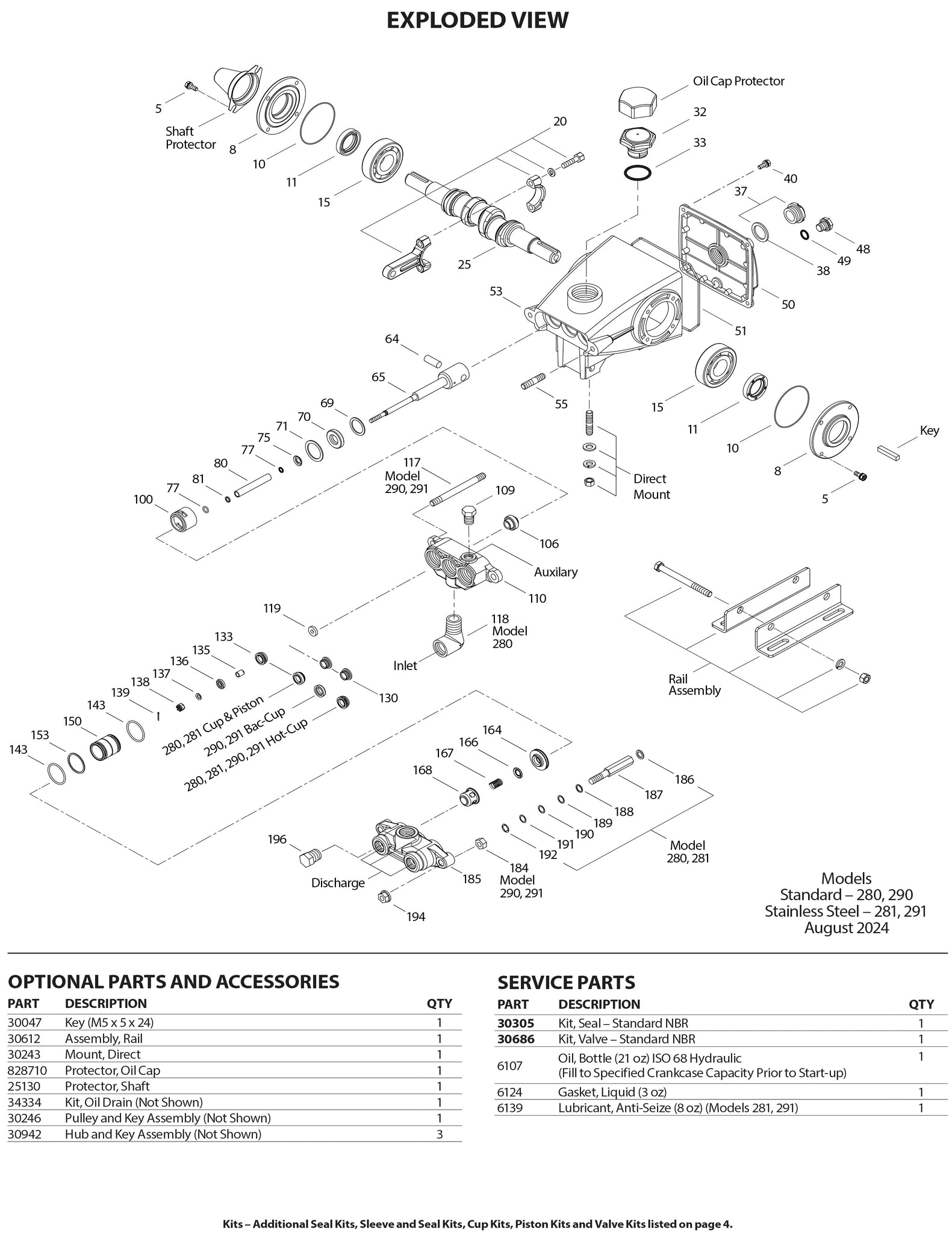

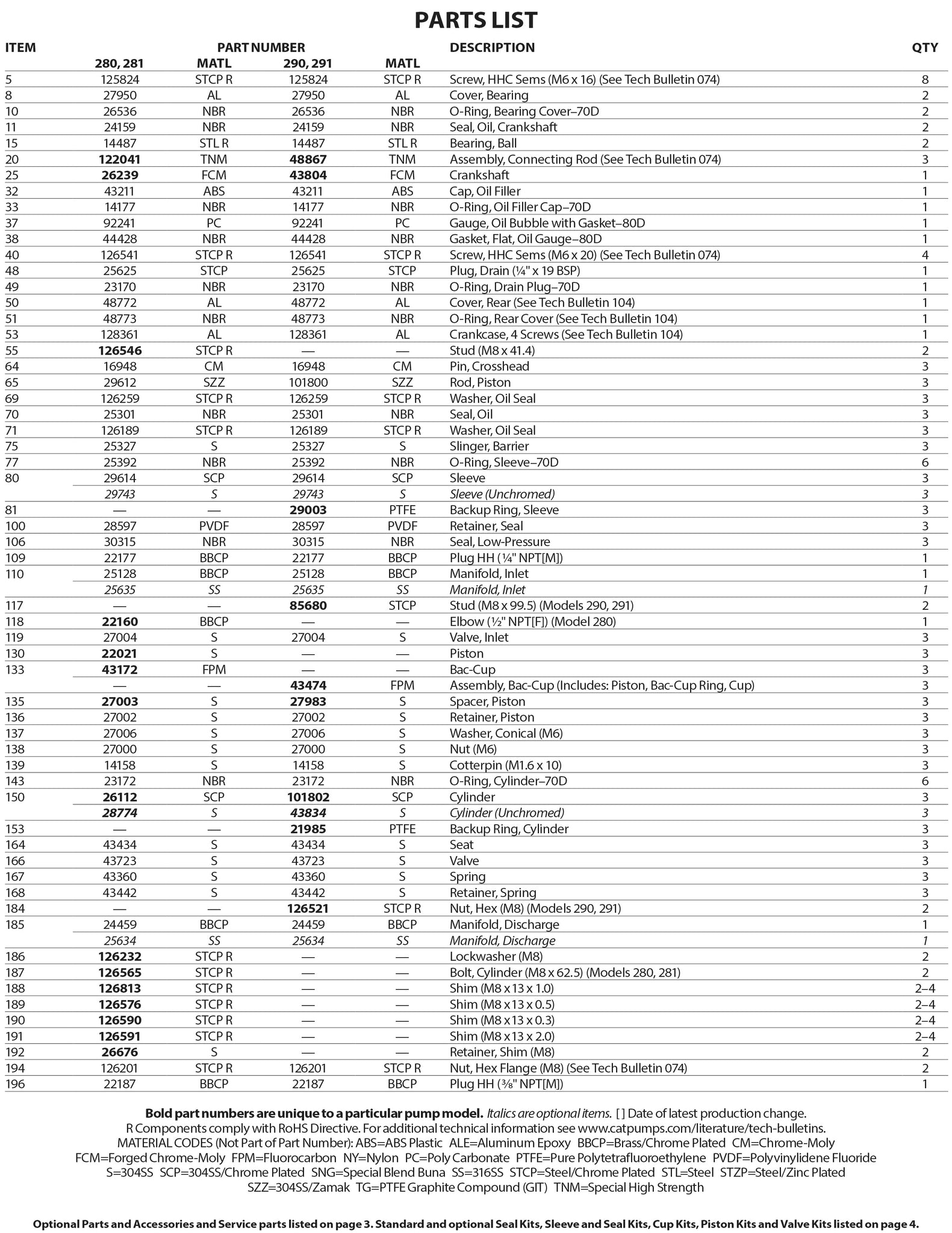

PLEASE REFERENCE DATA SHEETS & TABLE BELOW



⚙️ CAT Pumps 290 Piston Pump



The CAT Pumps 290 is a legendary Triplex Piston Pump renowned for its durability in continuous-duty industrial applications. As a true Positive Displacement Pump, it utilizes a unique "Uniflow" design where fluid moves continuously in one forward direction, creating a smooth, low-pulsation flow that is ideal for sensitive systems. This model is constructed with a distinctive Chrome-Plated Brass manifold and 304 Stainless Steel valve assemblies, offering exceptional wear resistance and extended seal life.

Unlike standard plunger pumps, the 290 features mechanically actuated inlet valves and floating pistons that are lubricated by the pumped liquid. This design provides strong suction capabilities, making it a preferred choice for self-serve car wash bays and high-pressure misting systems. With a verified flow rate of 3.5 GPM at 1,200 PSI, it is engineered for belt-drive performance, typically operating at a lower 1,200 RPM to reduce heat and vibration.

SPECIFICATION DETAILS
Model Number 290
Manufacturer CAT Pumps
Pump Type Triplex Piston Pump
Displacement Type Positive Displacement
Material (Manifold) Chrome-Plated Brass
Material (Valves) 304 Stainless Steel
Max Flow Rate 3.5 GPM (13.2 LPM)
Applied Pressure (Test) 1200 psi
Max Operating Pressure 1200 psi
Max Liquid Temp 160°F (71°C)
Inlet Port Size 1/2" NPT(F)
Discharge Port Size 1/2" NPT(F)
Shaft Diameter 16.5 mm (0.650") Solid
RPM 1200

TO VIEW DATA SHEETS LARGER RIGHT CLICK SHEET AND SELECT OPEN IMAGE IN NEW TAB
