2SFX30GZI CAT Pressure Washer Triplex Positive Displacement Plunger Pump 3.0GPM 2500PSI , 3/4-inch Drive Shaft , Standard Gas Engine Flange (SAE J609A) , Ball Bearing , Revision B
-
Financing Options Available at Checkout via Shop Pay & Paypal!
-
For International Shipments Contact Us for a Quote!

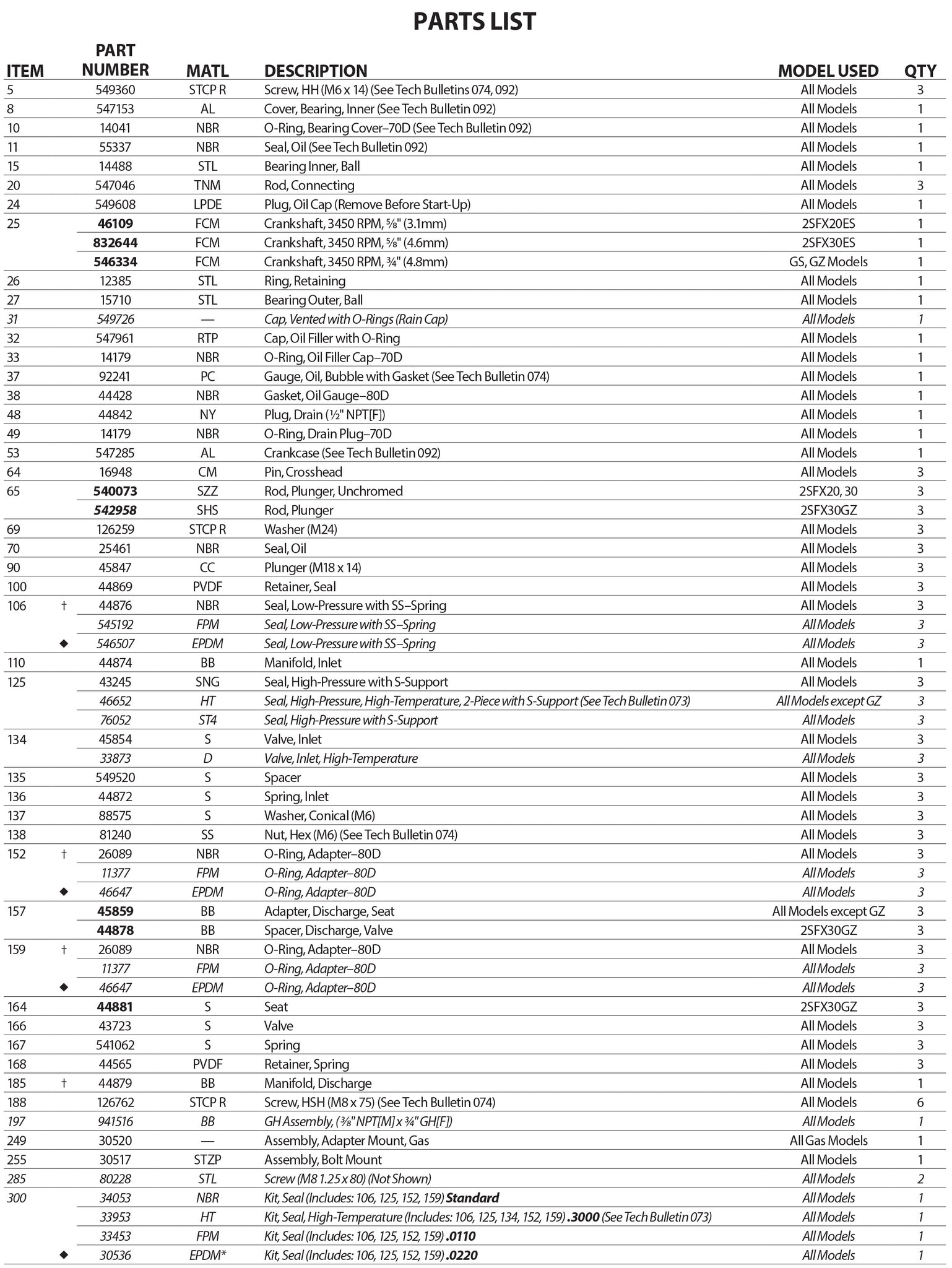

PLEASE REFERENCE TABLE BELOW
⛽ CAT Pump 2SFX30GZI
The CAT Pump 2SFX30GZI is a Positive Displacement Triplex Plunger Pump specifically engineered for the demanding requirements of pressure washers. Featuring a high-strength forged brass manifold and solid ceramic plungers, this pump is designed to withstand the rigors of continuous duty in cleaning applications. It comes equipped with a 3/4" hollow shaft for direct mounting to gas engines and includes an integral unloader and a fixed chemical injector, providing a complete "ready-to-run" solution for portable pressure washing systems.
Technical Specifications
| Feature | Specification |
| Common Use | Pressure Washing |
| Max Flow | 3.0 GPM |
| Max Pressure | 2,500 PSI |
| Test PSI | 2,750 PSI |
| RPM | 3450 RPM |
| Shaft Diameter | 3/4" Hollow (Gas Engine) |
| Inlet Port | 3/8" NPT (Female) |
| Discharge Port | 3/8" NPT (Male) |
| Manifold Material | Forged Brass |
| Included Accessories | Unloader & Chemical Injector |
TO VIEW DATA SHEET LARGER RIGHT CLICK SHEET AND SELECT OPEN IMAGE IN NEW TAB
