Bomba 3560 35PFR, SBG DS BBSS R 20/4000,25/3000 CAT
3CP1120G CAT Pressure Washer Triplex Positive Displacement Plunger Pump 3.5 GPM 2200 PSI , Gearbox Drive , Fitment for a 3/4" Shaft Gas Engine , Forged Brass Block , Standard Buna-N Seals and O-rings
-
Financing Options Available at Checkout via Shop Pay & Paypal!
-
For International Shipments Contact Us for a Quote!

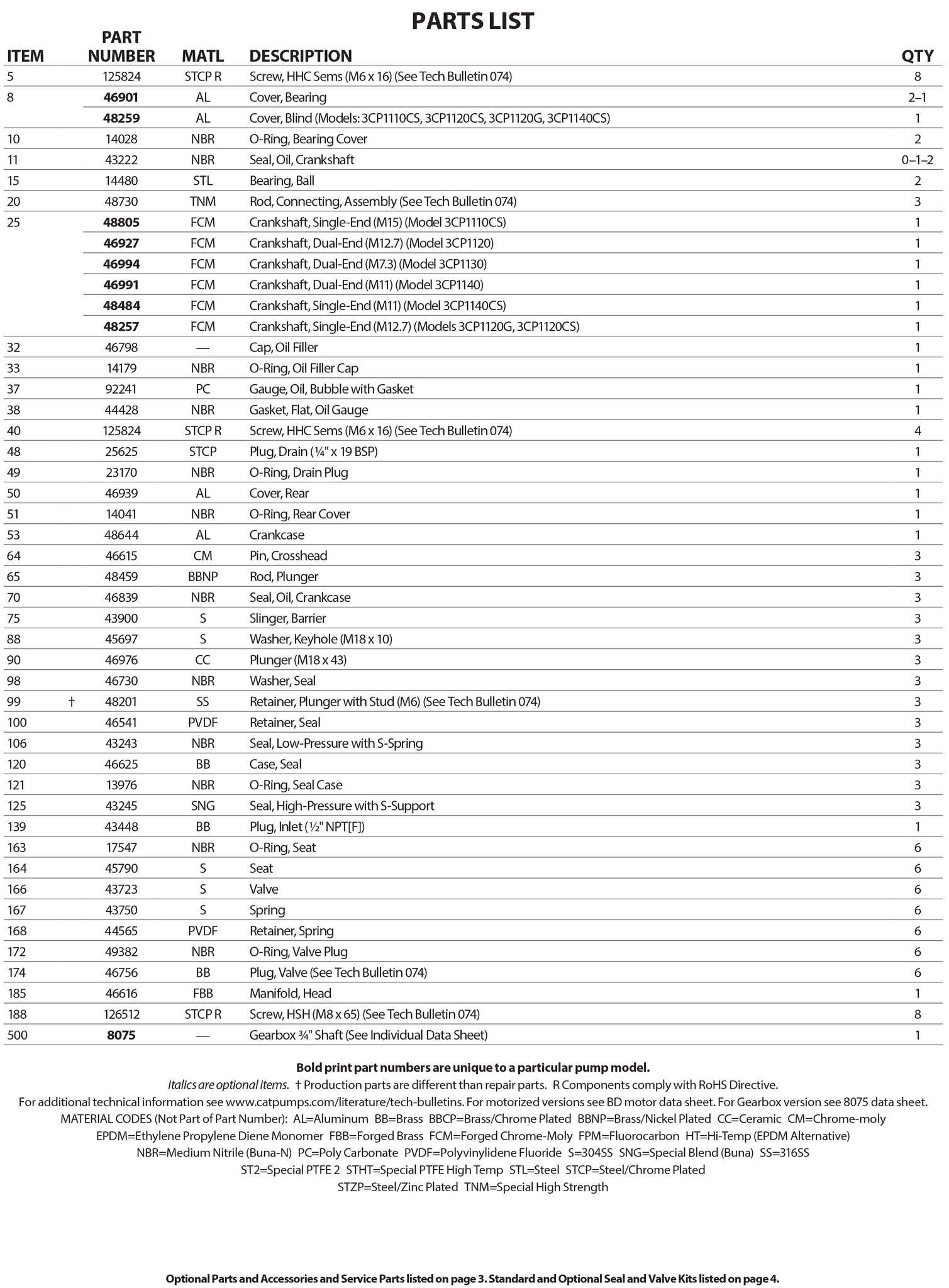

PLEASE REFERENCE DATA SHEETS & TABLE BELOW
⚙️ CAT Pumps 3CP1120G Plunger Pump
The CAT Pumps 3CP1120G is a specialized Triplex Plunger Pump equipped with an integrated gearbox, designed specifically for heavy-duty portable cleaning applications. As a true Positive Displacement Pump, it utilizes three synchronized ceramic plungers to deliver a smooth, constant flow, ensuring reliable performance even under varying load conditions. This model features a high-strength Forged Brass manifold and 304 Stainless Steel valve assemblies, providing exceptional resistance to corrosion and wear in commercial pressure washing environments.
Unlike standard direct-drive pumps that run at high speeds, the 3CP1120G uses a gearbox to reduce the engine speed down to a slower 1725 RPM (approximate). This reduction significantly lowers heat and vibration, extending the life of the pump seals and bearings. The unit is typically paired with gas engines featuring a 3/4" horizontal shaft, making it a premium upgrade for commercial duty machines. With a verified flow rate of 4.2 GPM at 2,200 PSI, it offers the perfect balance of high volume and moderate pressure for vehicle washing and soft wash applications.
| SPECIFICATION | DETAILS |
| Model Number | 3CP1120G |
| Manufacturer | CAT Pumps |
| Pump Type | Triplex Plunger Pump |
| Displacement Type | Positive Displacement |
| Drive Type | Gearbox (Bolt-on) |
| Material (Manifold) | Forged Brass |
| Material (Valves) | 304 Stainless Steel |
| Max Flow Rate | 4.2 GPM (15.9 LPM) |
| Applied Pressure (Test) | 2200 psi |
| Max Operating Pressure | 2200 psi |
| Max Liquid Temp | 160°F (71°C) |
| Inlet Port Size | 1/2" NPT(F) |
| Discharge Port Size | 3/8" NPT(F) |
| Engine Shaft Requirement | 3/4" Horizontal Shaft |
| Pump RPM | 1725 |
TO VIEW DATA SHEETS LARGER RIGHT CLICK SHEET AND SELECT OPEN IMAGE IN NEW TAB
