4DNX27GSI CAT Pressure Washer Triplex Positive Displacement Pump 2.7 GPM 3000 PSI , Fits a Standard 3/4-inch Crankshaft , Mounts to a Standard SAE J609 Gas Engine Flange , Brass Block
-
Financing Options Available at Checkout via Shop Pay & Paypal!
-
For International Shipments Contact Us for a Quote!
PLEASE REFERENCE DATA SHEETS & TABLE BELOW
⚙️ CAT Pumps 4DNX27GSI Plunger Pump
The CAT Pumps 4DNX27GSI is a specialized Triplex Plunger Pump designed as a high-performance upgrade for direct-drive gas engine systems. As a true Positive Displacement Pump, it utilizes three synchronized ceramic plungers to deliver a steady, reliable flow that maintains its volume even when the nozzle pressure changes. This model is constructed with a durable Brass manifold and 304 Stainless Steel valve assemblies, ensuring significantly longer service life and corrosion resistance compared to the axial cam pumps typically found on consumer machines.
Engineered for seamless integration, the 4DNX27GSI features a 3/4" hollow shaft that mounts directly to standard 5.5HP–6.5HP gas engines. It comes fully assembled with an integral regulating unloader and a chemical injector, offering a complete "drop-in" solution for pressure washing applications. With a verified flow rate of 2.7 GPM at 3,000 PSI, it delivers professional-grade stripping power for cleaning concrete, siding, and heavy equipment.
| SPECIFICATION | DETAILS |
| Model Number | 4DNX27GSI |
| Manufacturer | CAT Pumps |
| Pump Type | Triplex Plunger Pump |
| Displacement Type | Positive Displacement |
| Material (Manifold) | Brass |
| Material (Valves) | 304 Stainless Steel |
| Max Flow Rate | 2.7 GPM (10.2 LPM) |
| Applied Pressure (Test) | 3000 psi |
| Max Operating Pressure | 3000 psi |
| Max Liquid Temp | 140°F (60°C) |
| Inlet Port Size | 3/4" GHF (Garden Hose Fitting) |
| Discharge Port Size | 3/8" NPT(M) |
| Shaft Diameter | 3/4" Hollow |
| RPM | 3450 |

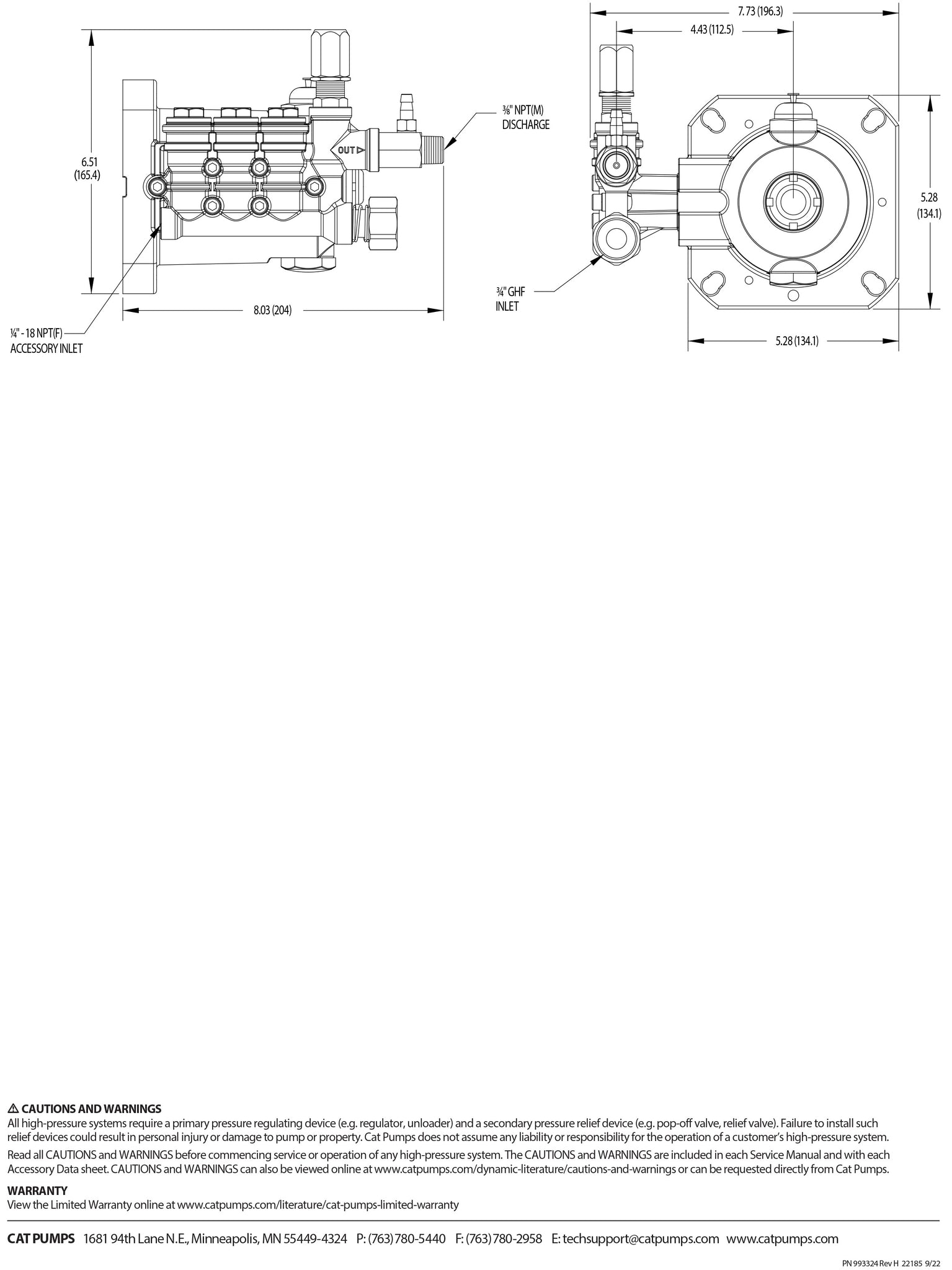

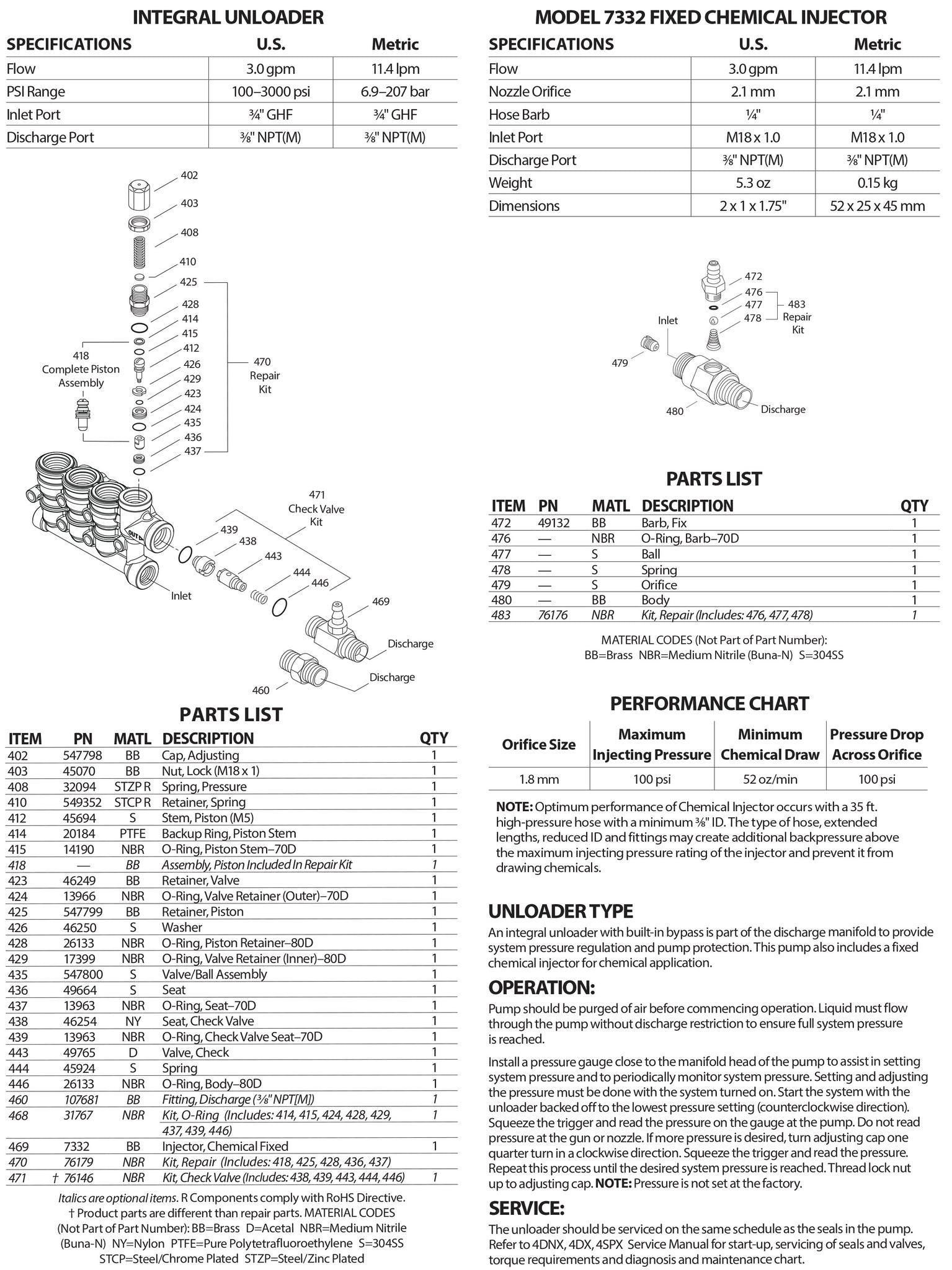

TO VIEW DATA SHEETS LARGER RIGHT CLICK SHEET AND SELECT OPEN IMAGE IN NEW TAB
