Bomba 3560 35PFR, SBG DS BBSS R 20/4000,25/3000 CAT
5CP3120CSSG1 CAT Pressure Washer Triplex Positive Displacement Plunger Pump 4.5 GPM 3500 PSI , 316 Grade Stainless Steel Manifold , Gearbox Mounts to a 1" Gas Engine Shaft , Forged Brass Block , Standard Buna-N seals (O-Rings)
-
Financing Options Available at Checkout via Shop Pay & Paypal!
-
For International Shipments Contact Us for a Quote!

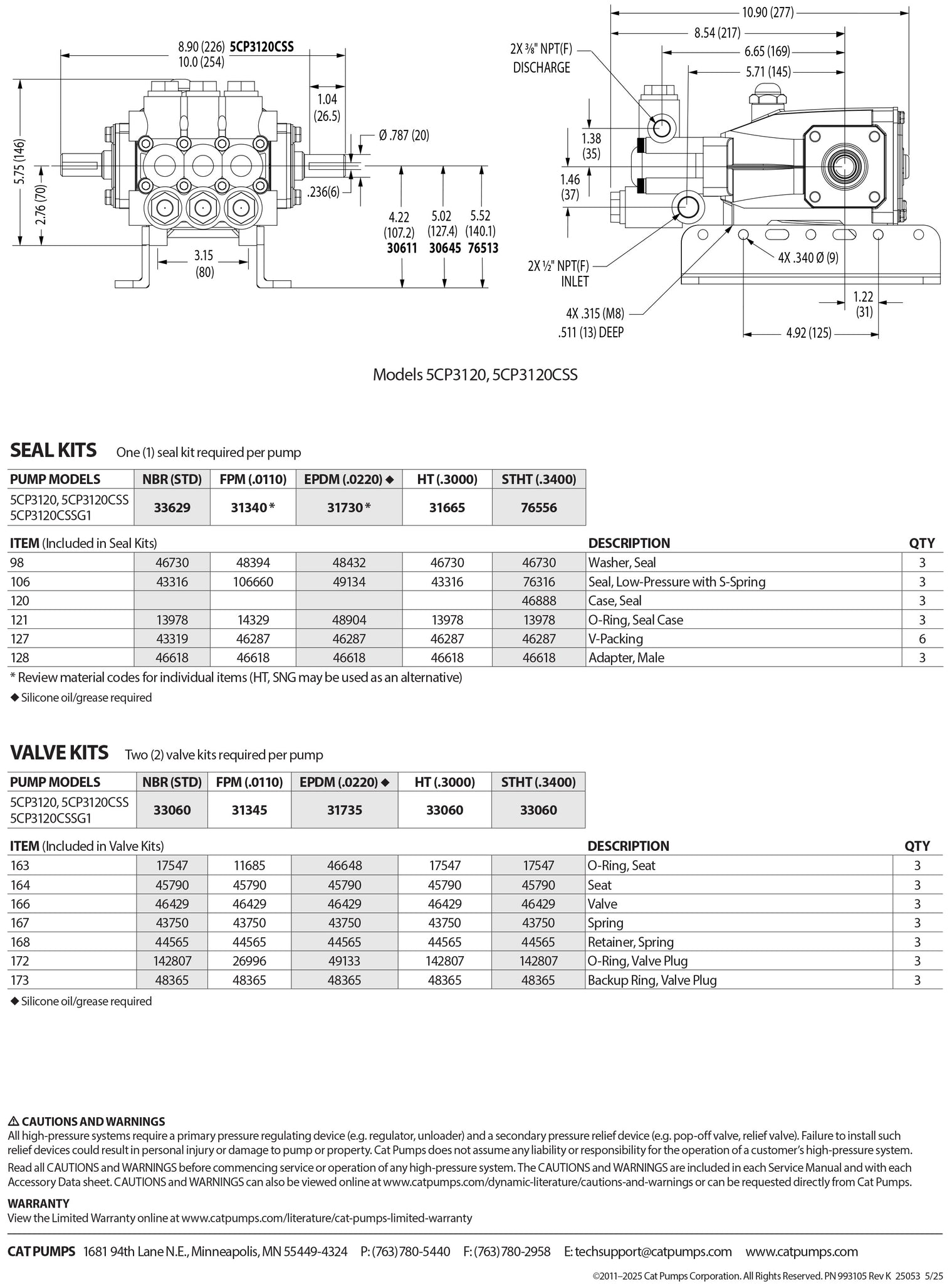

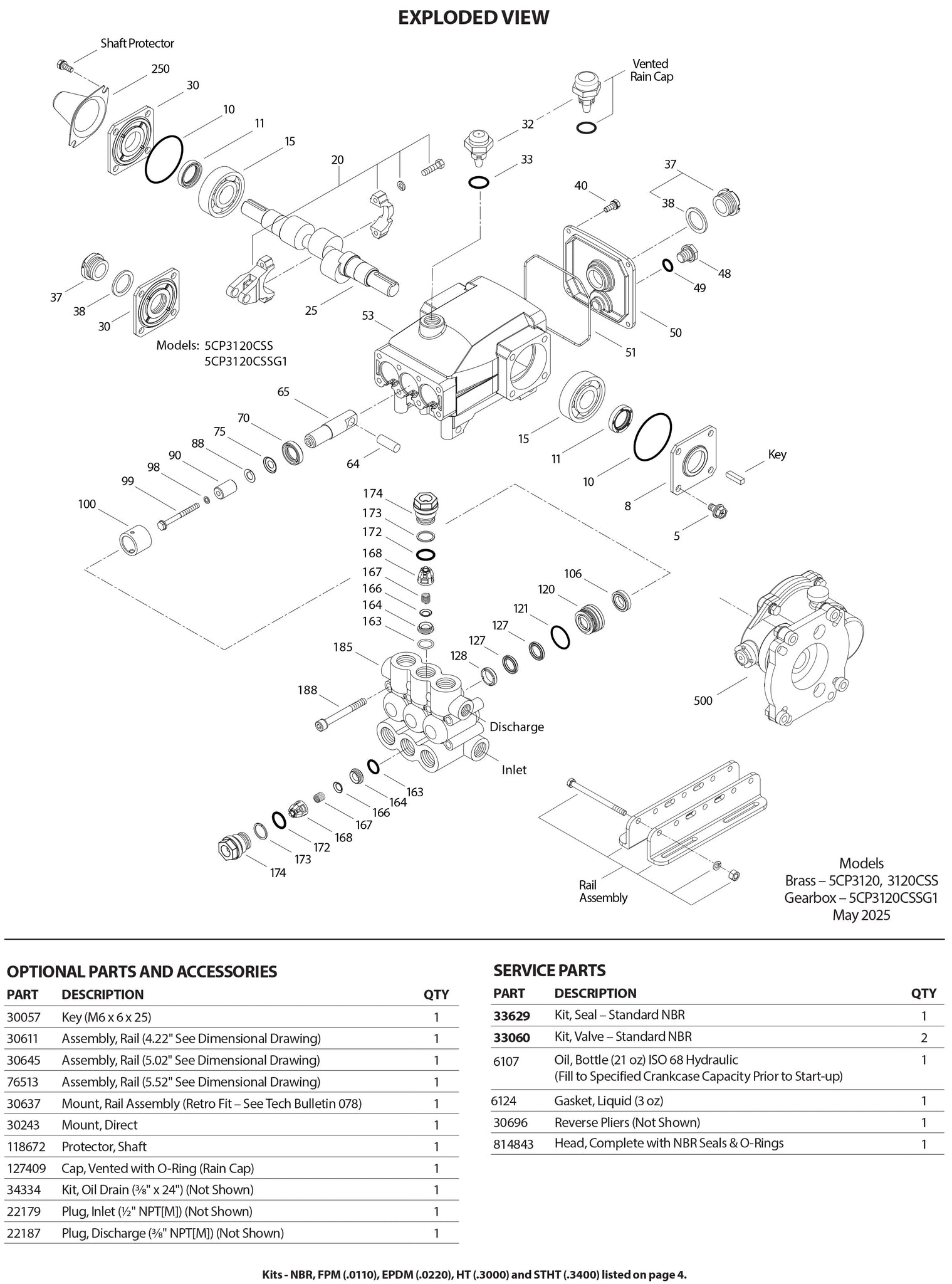

PLEASE REFERENCE DATA SHEETS & TABLE BELOW
⚙️ CAT Pumps 5CP3120CSSG1 Plunger Pump
The CAT Pumps 5CP3120CSSG1 is a specialized Triplex Plunger Pump assembly equipped with a gearbox, widely recognized as a premium upgrade for commercial pressure washers. Unlike standard brass pumps, this model is constructed with a 316 Stainless Steel manifold and solid ceramic plungers, providing superior resistance to corrosive detergents, saltwater, and harsh chemical environments often encountered in industrial cleaning.
Designed for heavy-duty applications, this unit features a 1" hollow shaft gearbox that bolts directly to 9HP – 13HP gas engines (such as the Honda GX270 or GX390). The integrated gearbox reduces the engine speed to a lower, optimal pump RPM, minimizing heat and wear for extended service life. As a true Positive Displacement Pump, it delivers a verified flow rate of 4.5 GPM at 3,500 PSI, offering the high-impact cleaning power required for fleet washing, sanitation, and facility maintenance.
TO VIEW DATA SHEET LARGER RIGHT CLICK SHEET AND SELECT OPEN IMAGE IN NEW TAB
