Bomba 3560 35PFR, SBG DS BBSS R 20/4000,25/3000 CAT
66DX30G1I Cat Pressure Washer Triplex Positive Displacement Pump 3.0 GPM 4000 PSI , Slides onto a 1-inch Crankshaft , Standard SAE J609 Gas Flange Forged Brass Block , Buna-N O-rings and Seals
-
Financing Options Available at Checkout via Shop Pay & Paypal!
-
For International Shipments Contact Us for a Quote!
PLEASE REFERENCE DATA SHEETS & TABLE BELOW
⚙️ CAT Pumps 66DX30G1I Plunger Pump
The CAT Pumps 66DX30G1I is a professional-grade Triplex Plunger Pump specifically engineered for high-pressure direct-drive applications. As a true Positive Displacement Pump, it features three synchronized solid ceramic plungers that deliver a precise, consistent flow rate, ensuring stable performance even under heavy load. The pump head is constructed from a high-strength Forged Brass manifold with 304 Stainless Steel valve assemblies, providing exceptional durability and resistance to thermal shock in demanding commercial environments.
Designed for easy "bolt-on" installation, the 66DX30G1I features a 1" hollow shaft that mounts directly to the face of 9HP to 13HP gas engines (such as the Honda GX270 or GX390). It arrives fully assembled with a modular regulating unloader valve and a fixed chemical injector, making it a complete replacement solution for industrial pressure washing systems. With a verified flow rate of 3.0 GPM at 4,000 PSI, it provides the high-impact blasting power needed for heavy-duty stripping, graffiti removal, and surface preparation.
| SPECIFICATION | DETAILS |
| Model Number | 66DX30G1I |
| Manufacturer | CAT Pumps |
| Pump Type | Triplex Plunger Pump |
| Displacement Type | Positive Displacement |
| Material (Manifold) | Forged Brass |
| Material (Valves) | 304 Stainless Steel |
| Max Flow Rate | 3.0 GPM (11.4 LPM) |
| Applied Pressure (Test) | 4000 psi |
| Max Operating Pressure | 4000 psi |
| Max Liquid Temp | 140°F (60°C) |
| Inlet Port Size | 1/2" NPT(F) |
| Discharge Port Size | 3/8" NPT(F) |
| Shaft Diameter | 1" Hollow |
| RPM | 3400 |

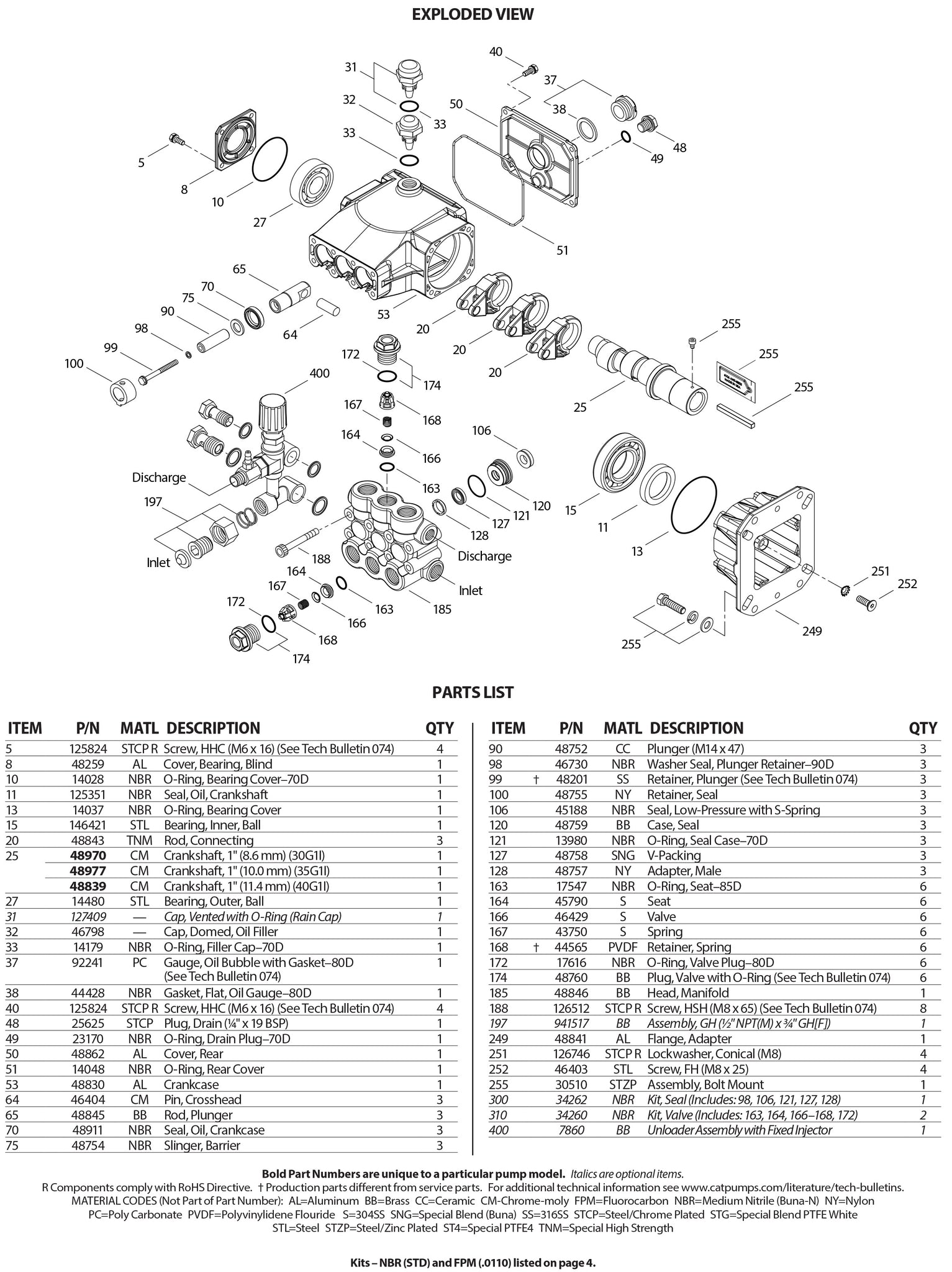

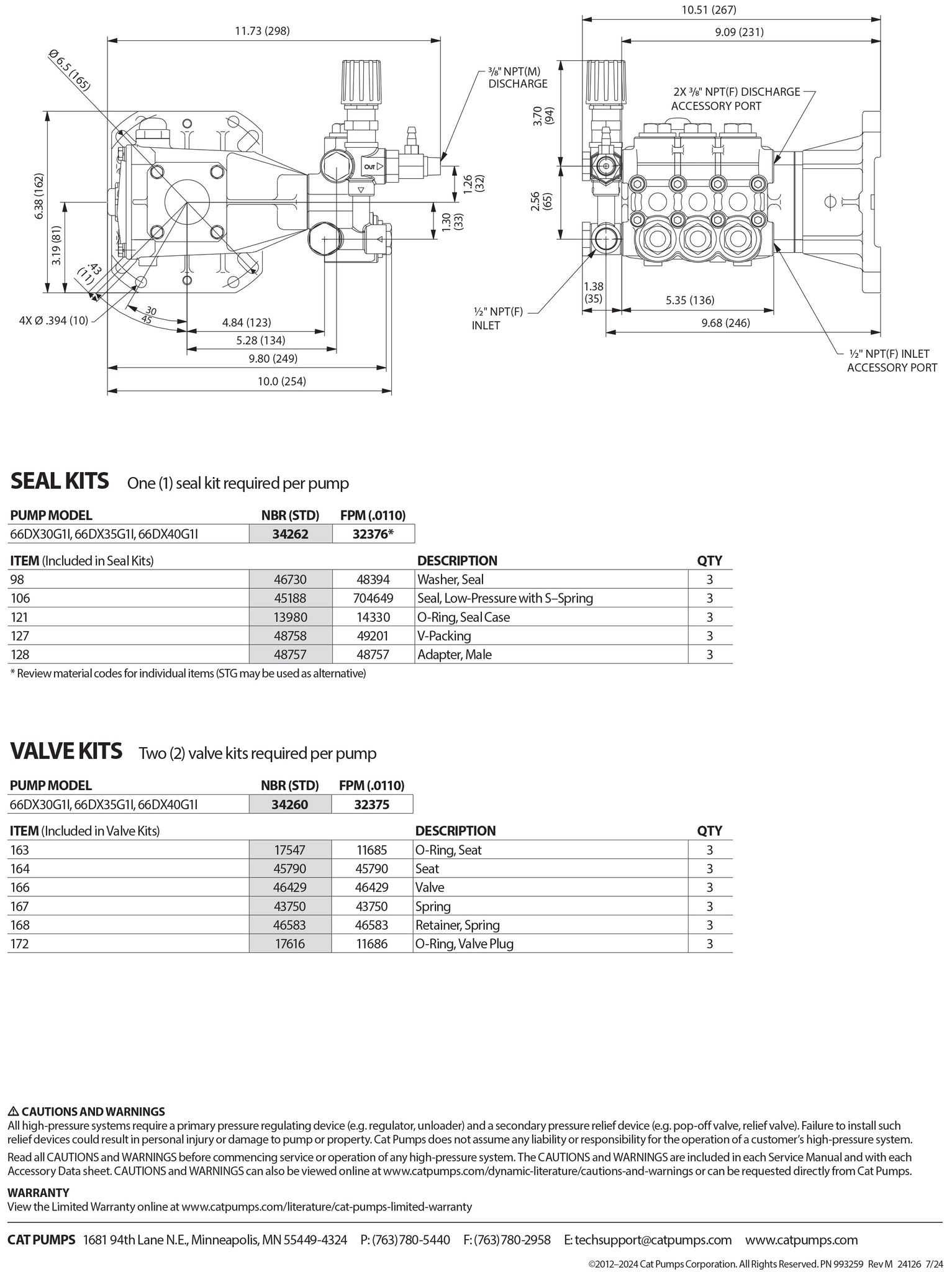

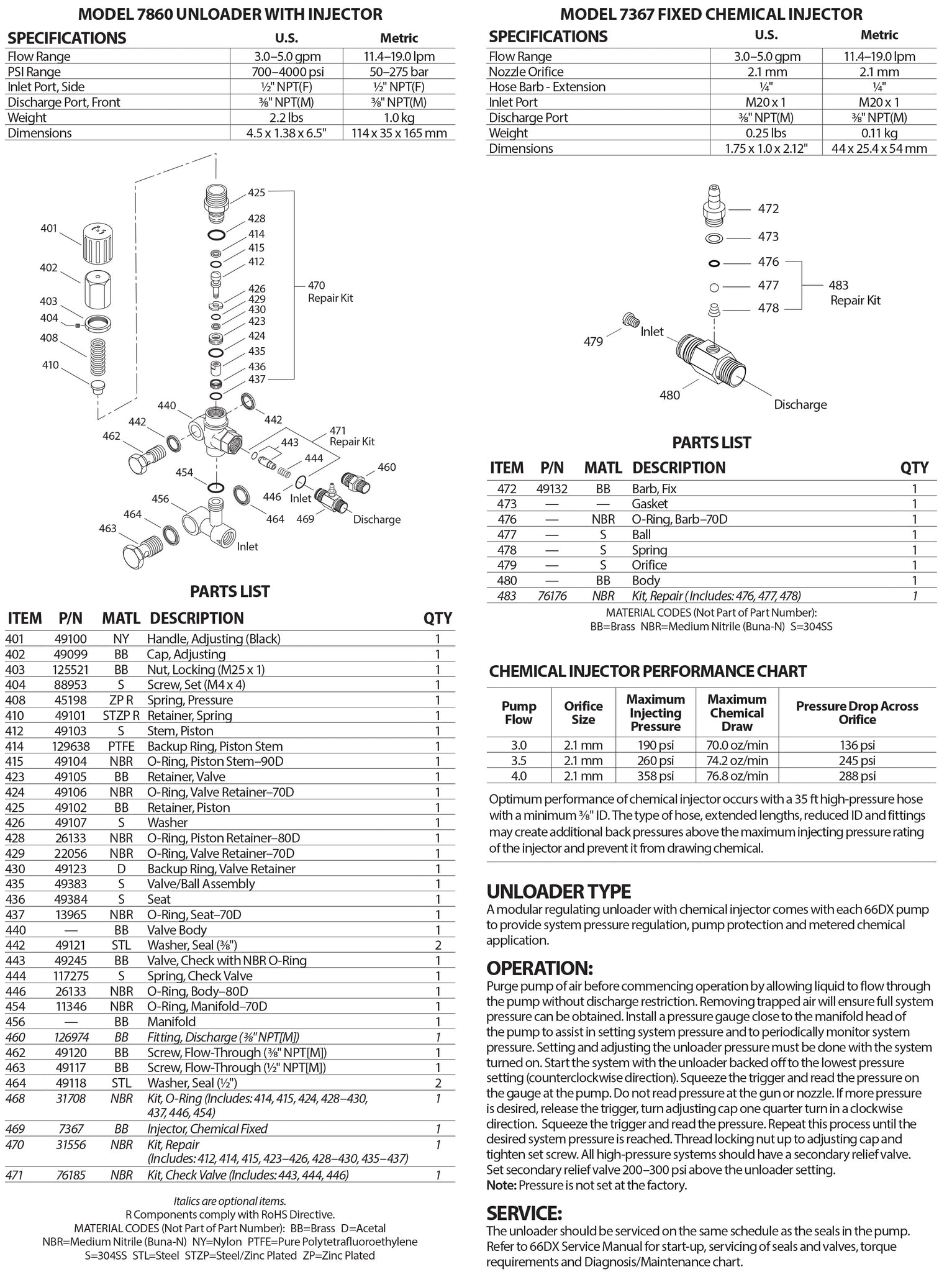

TO VIEW DATA SHEETS LARGER RIGHT CLICK SHEET AND SELECT OPEN IMAGE IN NEW TAB
