Bomba 3560 35PFR, SBG DS BBSS R 20/4000,25/3000 CAT
7CP6110CSG1 Cat Pressure Washer Triplex Positive Displacement Pump 10 GPM 2000 PSI , Gearbox Mounts to a 1" Gas Engine Shaft , Brass Block , Buna-N O-rings and Seals
-
Financing Options Available at Checkout via Shop Pay & Paypal!
-
For International Shipments Contact Us for a Quote!

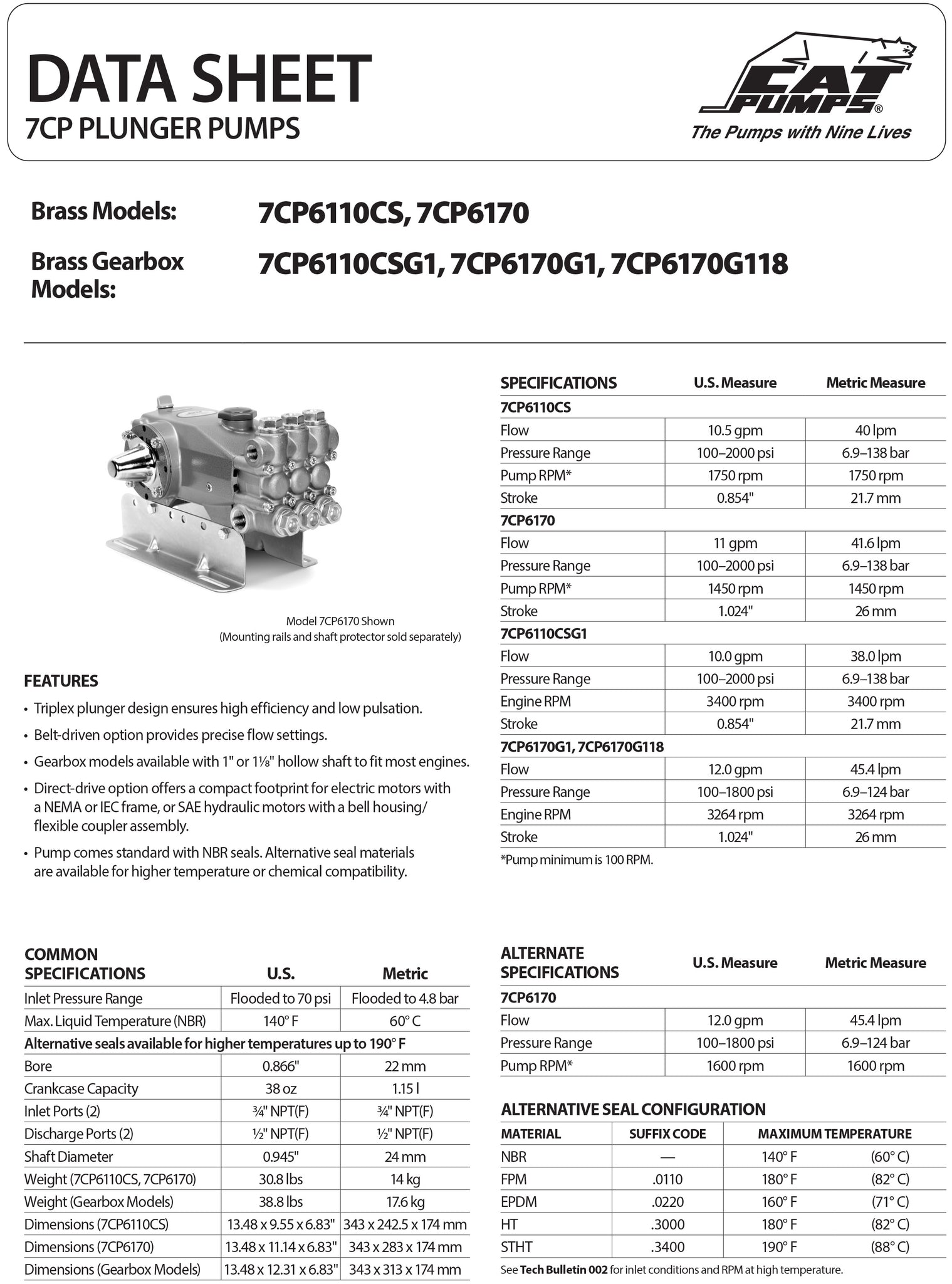

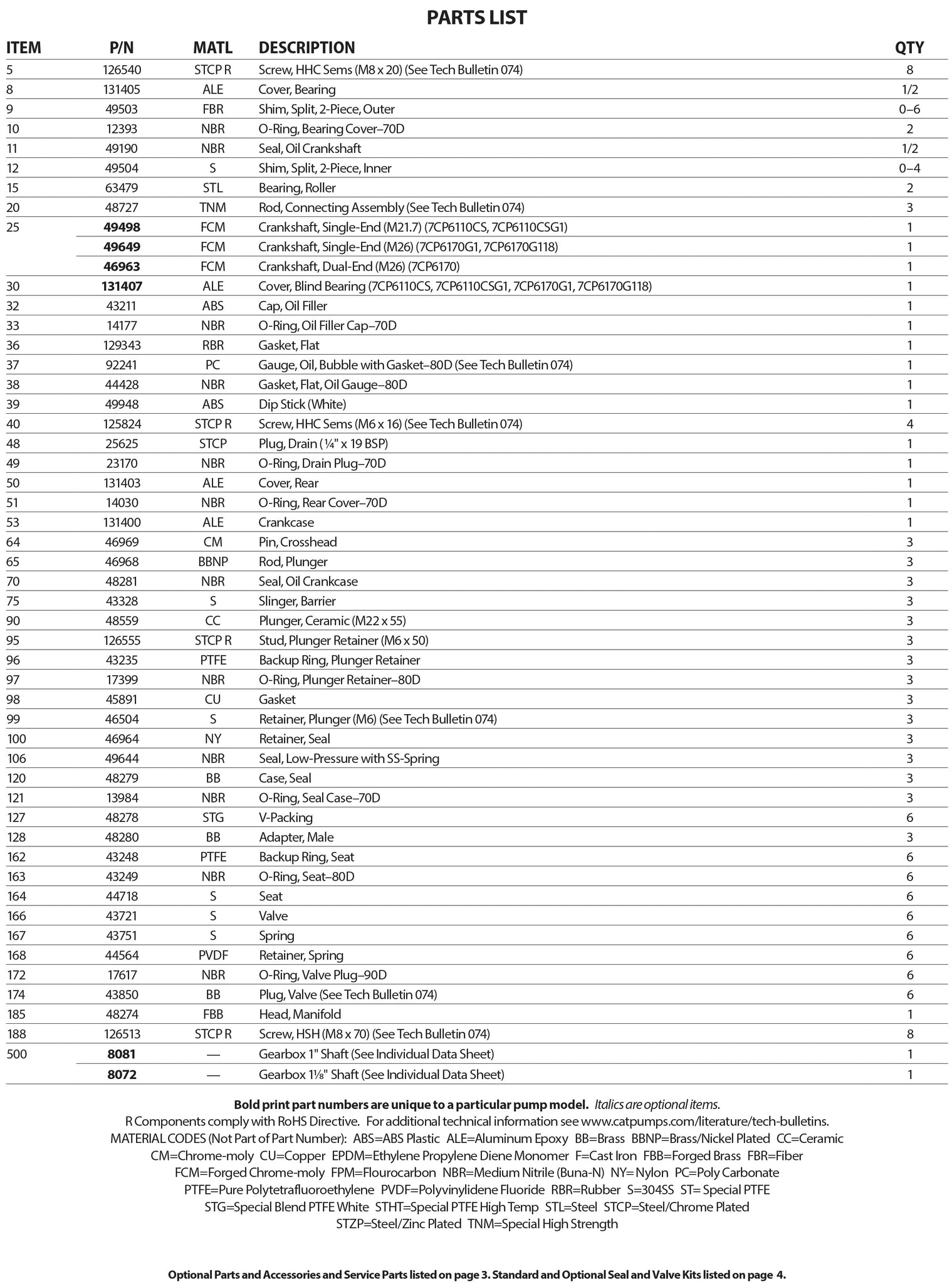

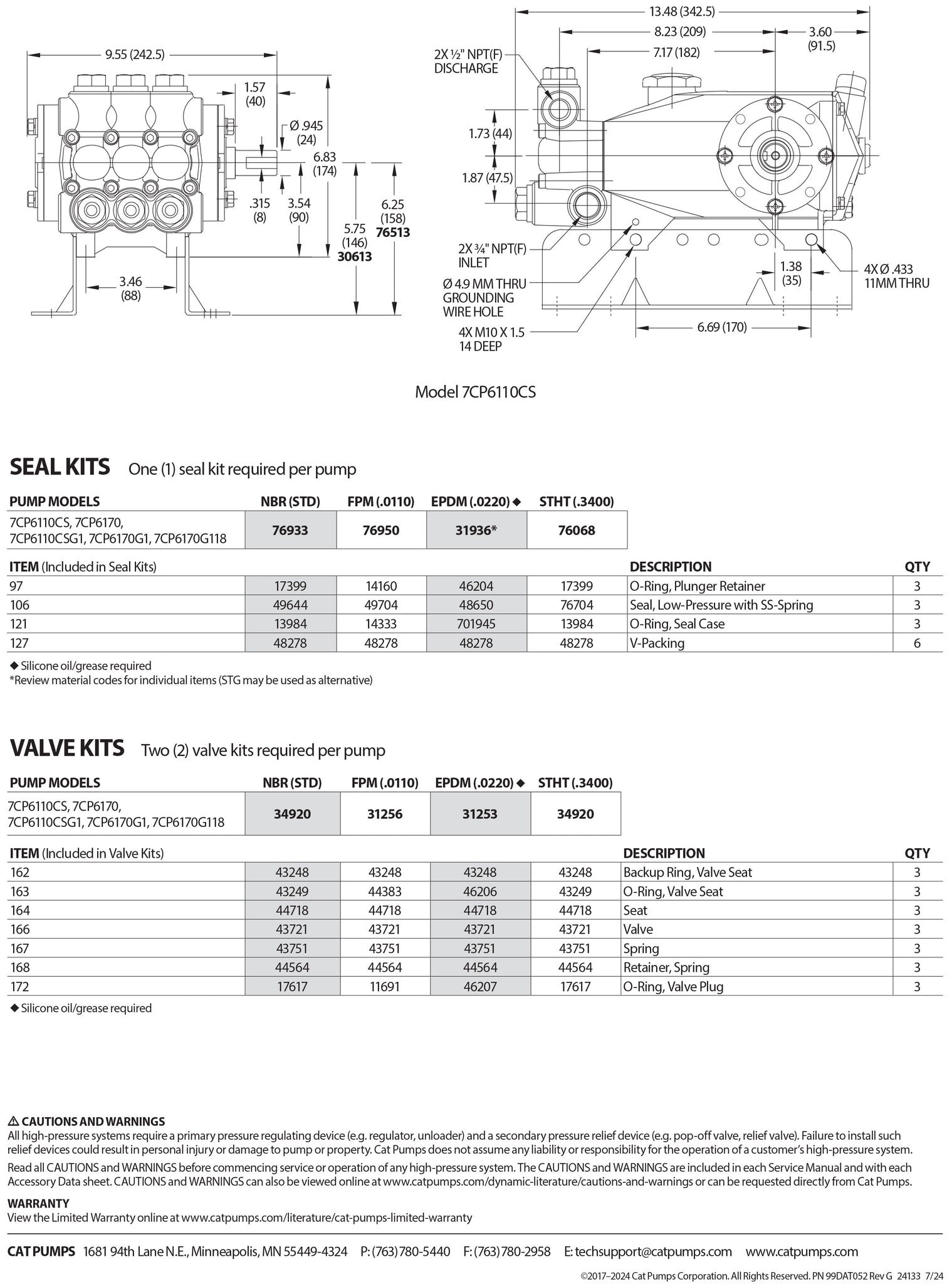

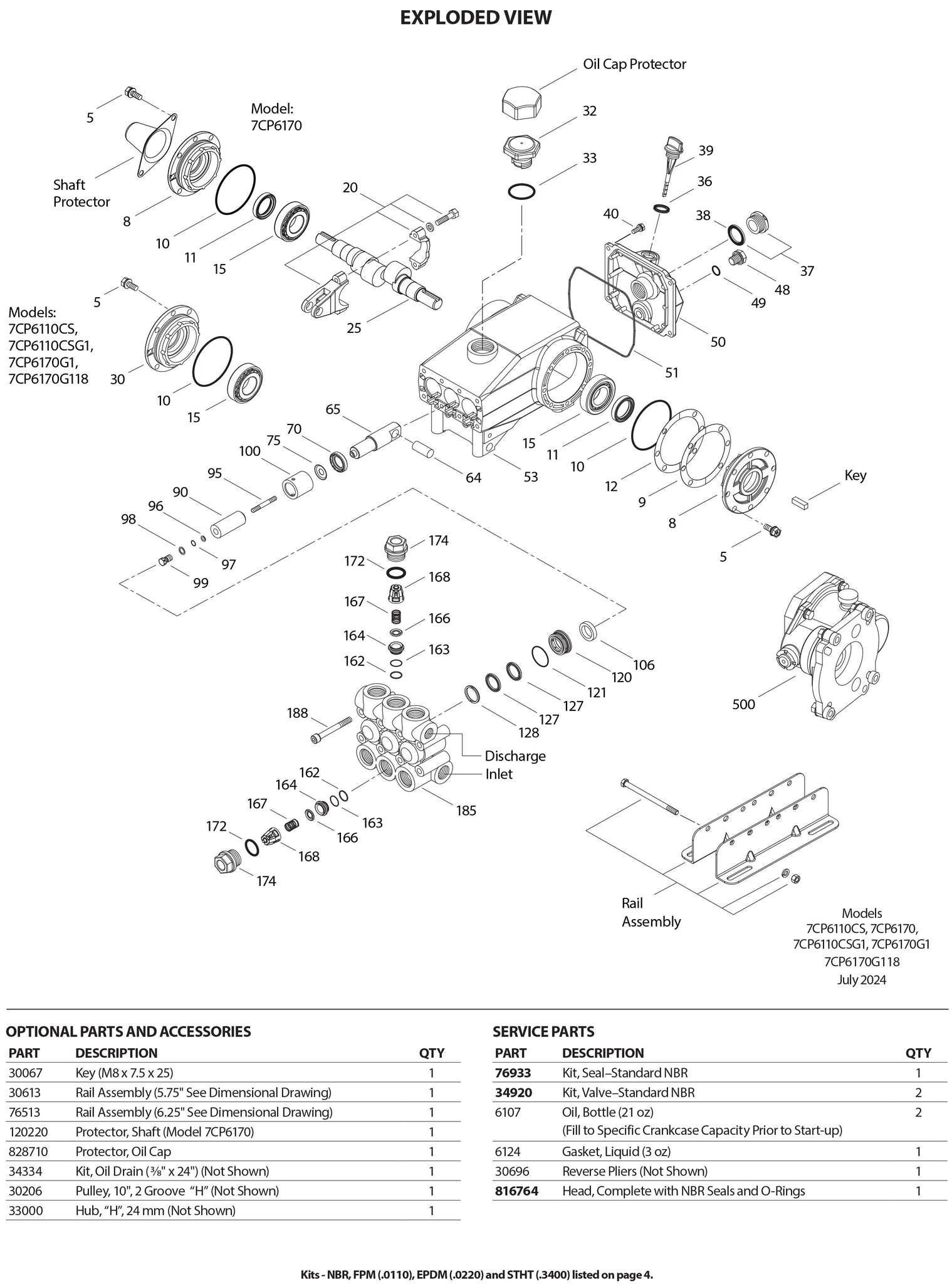

PLEASE REFERENCE DATA SHEETS & TABLE BELOW
⚙️ CAT Pumps 7CP6110CSG1 Plunger Pump
The CAT Pumps 7CP6110CSG1 is a high-flow Triplex Plunger Pump assembly designed for specialized cleaning applications. While it utilizes the robust 7CP frame, it is specifically listed by the manufacturer as a replacement pump for heavy-duty pressure washers where high volume is critical. This unit features a Forged Brass manifold and high-density, polished solid ceramic plungers, engineered for durability and consistent performance in demanding commercial environments.
Engineered for direct-drive gas systems, this pump comes equipped with a bolt-on gearbox featuring a 1" hollow shaft. This allows it to mount directly to standard 11HP – 13HP gas engines (such as the Honda GX390). The gearbox reduces the engine's 3400 RPM to a lower, optimal pump speed, enabling the unit to deliver a massive 10.0 GPM at 1,450 PSI. This unique "High Flow / Low Pressure" performance curve makes it the industry standard for Soft Wash systems, agricultural spraying, and heavy-duty rinsing where flushing volume is required over stripping force.
| SPECIFICATION | DETAILS |
| Model Number | 7CP6110CSG1 |
| Manufacturer | CAT Pumps |
| Pump Type | Triplex Plunger Pump |
| Displacement Type | Positive Displacement |
| Drive Type | Gearbox (Bolt-on) |
| Material (Manifold) | Forged Brass |
| Material (Valves) | 304 Stainless Steel |
| Max Flow Rate | 10.0 GPM (37.9 LPM) |
| Applied Pressure (Test) | 1450 psi |
| Max Operating Pressure | 1450 psi |
| Max Liquid Temp | 160°F (71°C) |
| Inlet Port Size | 3/4" NPT(F) |
| Discharge Port Size | 1/2" NPT(F) |
| Engine Shaft Requirement | 1" Horizontal Shaft |
| System RPM | 3400 (Engine Load Speed) |
TO VIEW DATA SHEETS LARGER RIGHT CLICK SHEET AND SELECT OPEN IMAGE I NEW TAB
