7CP6171RS 7CP BOMBA CS SS 11/2000,12/1800 Bombas CAT
7CP6171RS CAT Triplex Positive Displacement Plunger Pump , 7-Frame Compact Series , Chemical / Sanitary 316 Stainless Steel , 11/2000 ,12/1800
-
For Quantity Discounts Contact Us for a Quote!
-
For International Shipments Contact Us for a Quote!
-
Call: 1 (760) 598-0189
-
Email: hctivista@gmail.com
PLEASE REFERENCE SPEC SHEETS & TABLE BELOW
⚙️ CAT Pumps 7CP6171CS Plunger Pump
The CAT Pumps 7CP6171CS is a specialized industrial Triplex Plunger Pump engineered for applications requiring high corrosion resistance. As a positive displacement pump, it delivers a consistent and precise flow rate, making it ideal for critical processing environments such as reverse osmosis, chemical injection, and saltwater misting. This model is constructed with a 316 Stainless Steel manifold and 316 Stainless Steel valve assemblies, offering superior durability against aggressive fluids compared to standard brass or chrome-plated pumps.
Designed for continuous-duty operation, the 7CP6171CS utilizes high-density, polished solid ceramic plungers to provide an exceptionally smooth wear surface, significantly extending the life of the seals. Its 7-frame compact design allows for a smaller footprint while maintaining robust performance specifications of 10.5 GPM at 2,000 PSI. The pump operates at a low RPM of 1450, which reduces wear and internal heat build-up, further enhancing its longevity in demanding 24/7 applications.
| SPECIFICATION | DETAILS |
| Model Number | 7CP6171CS |
| Manufacturer | CAT Pumps |
| Pump Type | Triplex Plunger Pump |
| Displacement Type | Positive Displacement |
| Material (Manifold) | 316 Stainless Steel |
| Material (Valves) | 316 Stainless Steel |
| Max Flow Rate | 10.5 GPM (40 LPM) |
| Applied Pressure (Test) | 2000 psi |
| Max Operating Pressure | 2000 psi |
| Max Liquid Temp | 140°F (60°C) |
| Inlet Port Size | 3/4" NPT(F) |
| Discharge Port Size | 1/2" NPT(F) |
| RPM | 1450 |

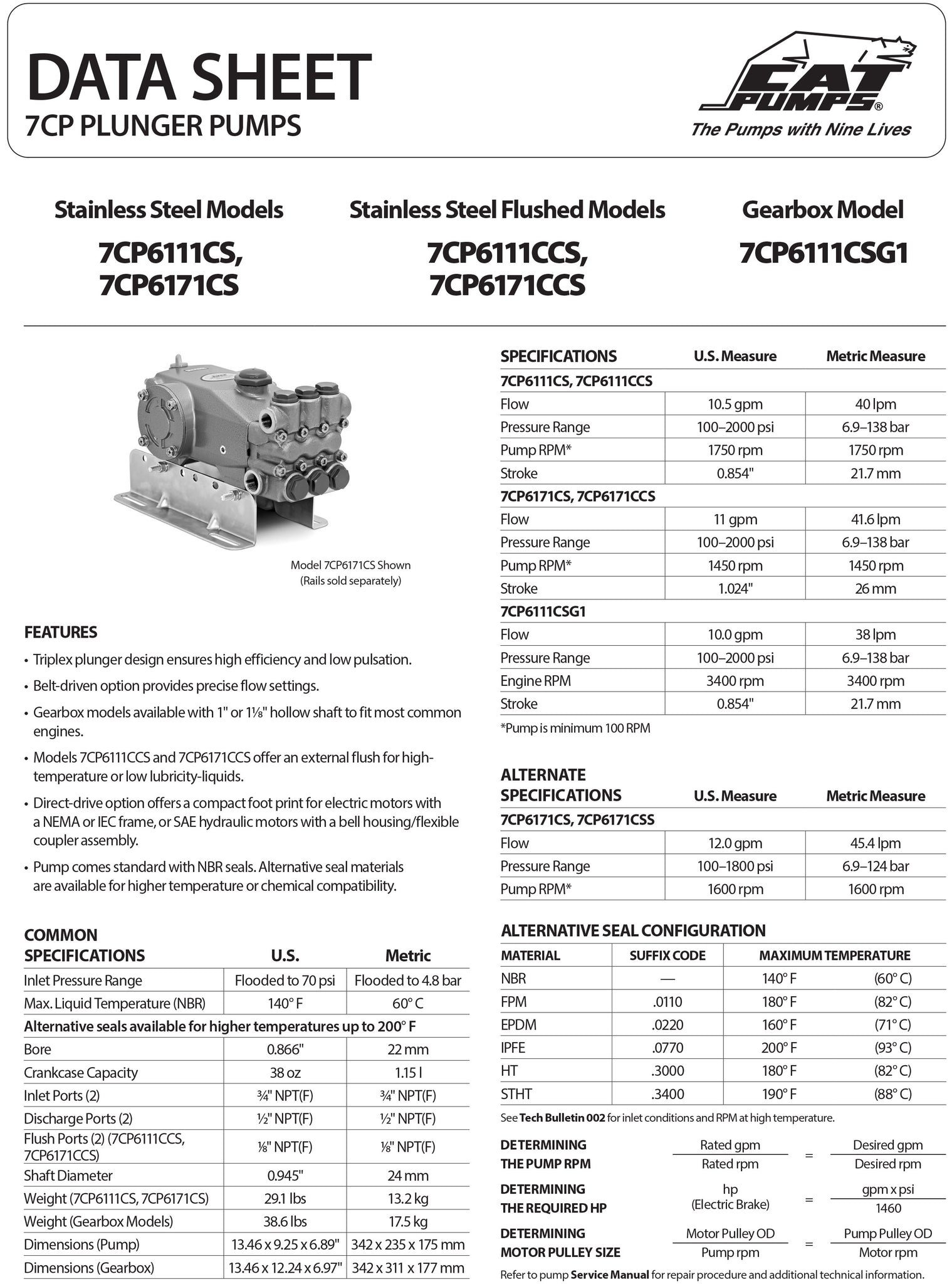

TO VIEW DATA SHEET LARGER RIGHT CLICK SHEET AND SELECT OPEN IMAGE IN NEW TAB
