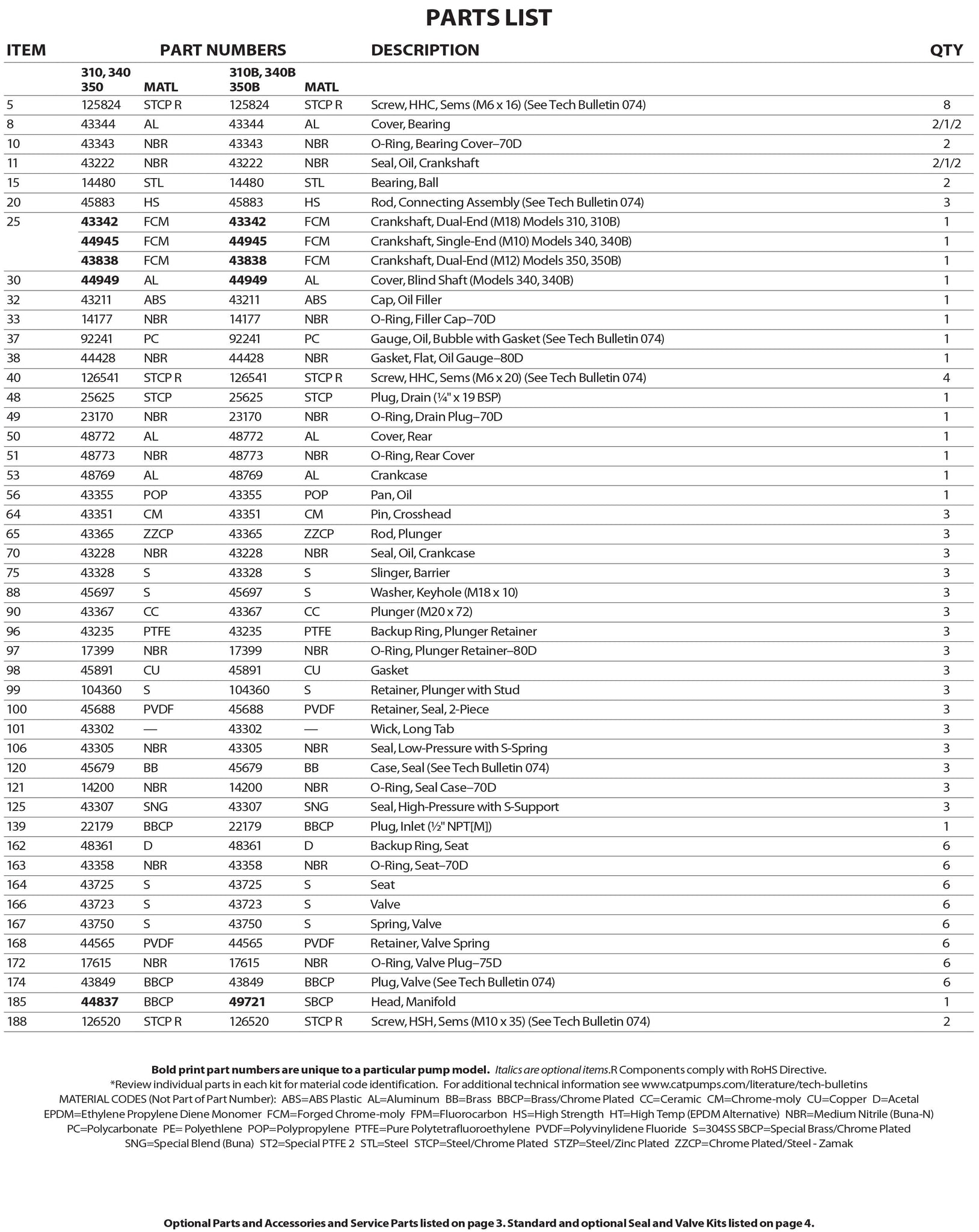

PLEASE REFERENCE DATA SHEETS AND TABLE BELOW
🔨 CAT Pumps Model 340 Plunger Pump | 4 GPM / 1800 PSI
The CAT Pumps Model 340 is a durable, industrial-grade 5-Frame Triplex Plunger Pump designed for high-pressure systems such as vehicle wash bays, pressure cleaning, and industrial equipment requiring steady, high-pressure flow. This standard model is built with a rugged Forged Brass manifold for reliability and the best value in a non-stainless steel offering. The pump is designed for Direct Drive applications, typically coupling to a motor at 1725 RPM.
The Model 340 delivers a maximum flow of 4.0 GPM (15 LPM) and can handle pressures up to 1800 PSI (124 bar). Key features that ensure long operational life include pre-set low-pressure seals for secondary leak protection, durable high-pressure seals that are lubricated and cooled by the pumped liquid, and precision-polished Solid Ceramic Plungers for maximum resistance to abrasion and corrosion. The standard pump comes equipped with NBR (Buna-N) seals.
| SPECIFICATION | DETAILS |
| Model Number | 340 |
| Pump Type | Plunger Pump, Triplex, 5-Frame |
| Max Flow Rate | 4.0 GPM (15.1 LPM) |
| Max Pressure Rating | 1800 PSI (124 bar) |
| Manifold Material | Forged Brass |
| Plunger Material | Solid Ceramic |
| Seal Material (Standard) | NBR (Buna-N) |
| Max Liquid Temperature | 160°F (71°C) |
| Max Operating Speed | 1725 RPM |
| Inlet Port Size | 1/2" NPT(F) (x2) |
| Discharge Port Size | 3/8" NPT(F) (x2) |
| Drive Type | Direct Drive (Single-End Crankshaft) |

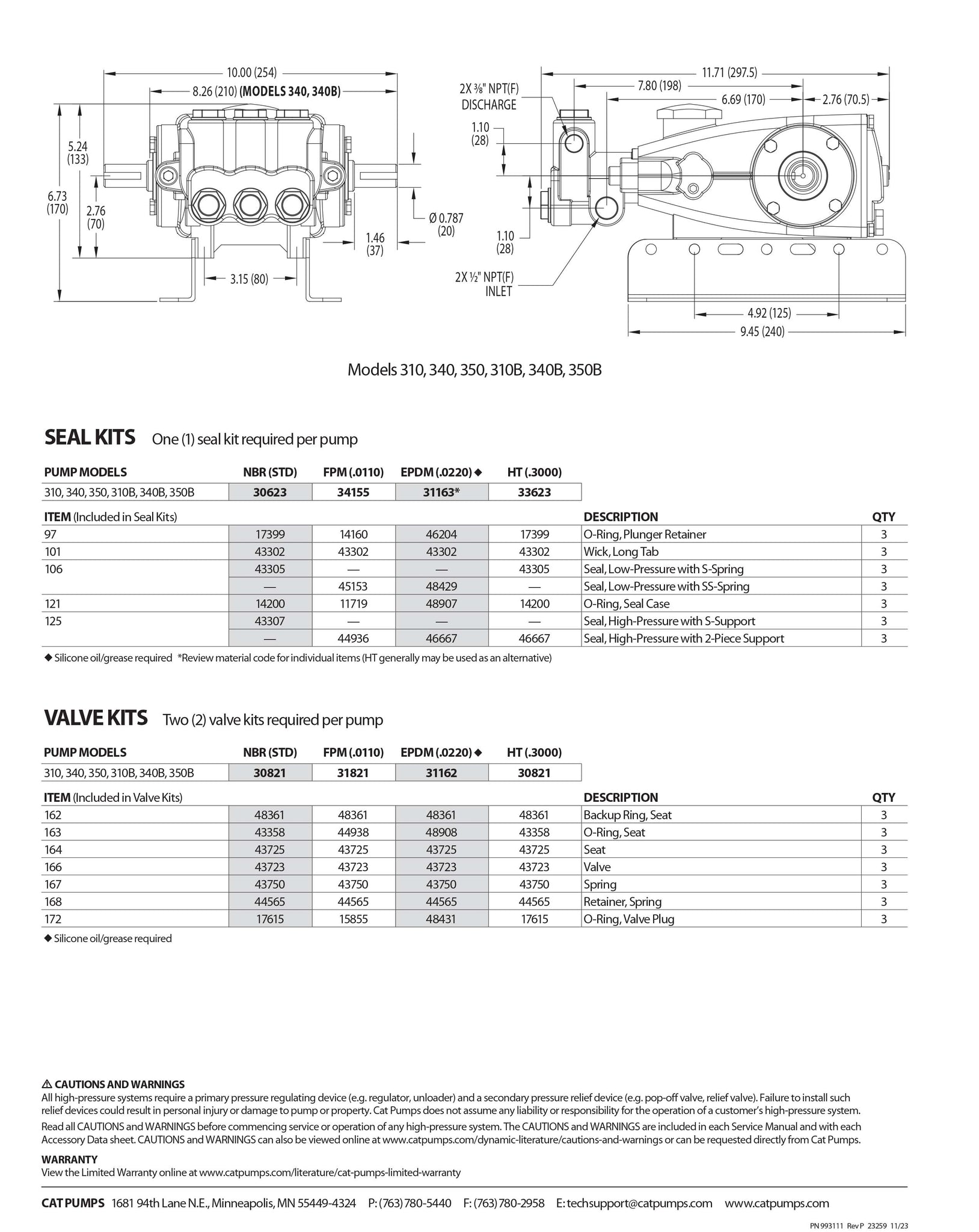

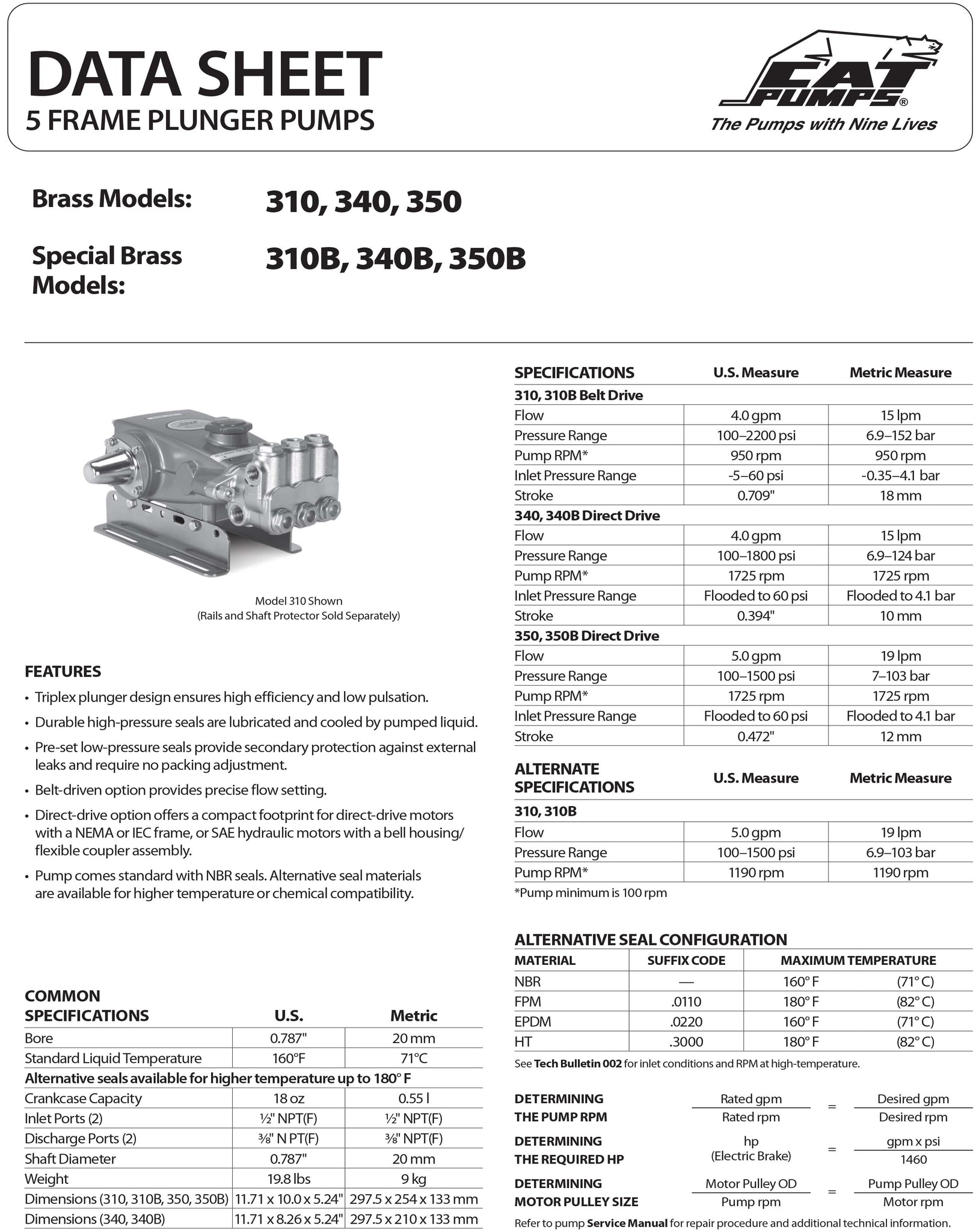

TO VIEW DATA SHEET LARGER RIGHT CLICK SHEET AND SELECT OPEN IMAGE IN NEW TAB
Max Volume: 4.0 GPM (15 L/M)
Max Discharge Pressure: 100 to 1800 PSI (7 to 125 Bar)
Max inlet Pressure: Flooded to 60 PSI (4 Bar)
Max RPM: 1725 RPM
Max Horsepower: 5.0 HP
Bore: 0.787" (20 mm)
Stroke: 0.394" (10 mm)
Crankcase Capacity: 18 oz. (0.55 L)
Max Fluid Temperature: 160°F (71°C)
Inlet Ports: (2) 1/2" NPT
Discharge Ports: (2) 3/8" NPT
Shaft Diameter-single End, Right: 0.787" (20 mm)
Weight: 19.8 lbs (9 kg)
Dimensions: 11.5" x 8.35" x 5.2865" (292 x 212 x 134 mm)
Other Models Available Upon Request
