BW30HRLE-440i FilmTec™ DOW / DuPont 150 PSI 12,650 GPD 8 x 40 inch Brackish Water Membranes

Hydrocomponents & Technologies Inc.

$1,081.87

Description

Description

FREE SHIPPING TO THE CONTINENTAL UNITED STATES!
For QUANTITY Discounts Contact Us for a Quote!
For INTERNATIONAL Shipments Contact Us for a Quote!
CALL: 1 (760) 598-0189
EMAIL: hctivista@gmail.com

PLEASE REFERENCE DATA SHEETS AND TABLE BELOW

💧 DuPont FilmTec™ BW30HRLE-440i High Rejection, Low Energy RO Element

Product Description

The DuPont FilmTec™ BW30HRLE-440i is a premier Brackish Water Reverse Osmosis (BWRO) element engineered to provide exceptional water quality while operating at pressures up to $33\%$ lower than standard BWRO elements. This $8 \text{ inch by } 40 \text{ inch}$ element is the top choice for large-scale industrial and municipal applications seeking reduced energy consumption and lower operational costs (OPEX).

It features a large active area of $440 \text{ square feet}$ and includes the patented iLEC™ interlocking end caps, which reduce the risk of o-ring leaks and simplify element loading. The element delivers a nominal permeate flow of $12,650 \text{ Gallons Per Day (GPD)}$ with a high stabilized salt rejection of $99.3\%$ (tested against

2,000 \text{ ppm NaCl}

150 \text{ PSI}

). Its chemical tolerance and wide cleaning

\text{pH}

range (

1-13

) provide superior cleaning performance and robustness for long element life.

Specifications Table

Characteristic	Specification	Units / Notes
Model	BW30HRLE-440i	High Rejection, Low Energy RO
Manufacturer	DuPont FilmTec™	-
Membrane Type	Polyamide Thin-Film Composite	TFC
Element Dimensions (Nominal)	$7.9 \times 40.0$	inches (Diameter x Net Length)
Active Area	440 (41)	sq ft (sq m)
Permeate Flow Rate (Nominal)	12,650 (48)	GPD (m³/day). $\pm 15\%$ tolerance
Stabilized Salt Rejection	$99.3$	$\%$ (Minimum $99.1\%$ )
Applied Pressure (Test)	150 (10.3)	PSI (Bar)
Max Operating Pressure	600 (41)	PSI (Bar)
Feed Spacer Thickness	28	mil
End Cap	iLEC™ Interlocking	Reduces O-Ring Leaks

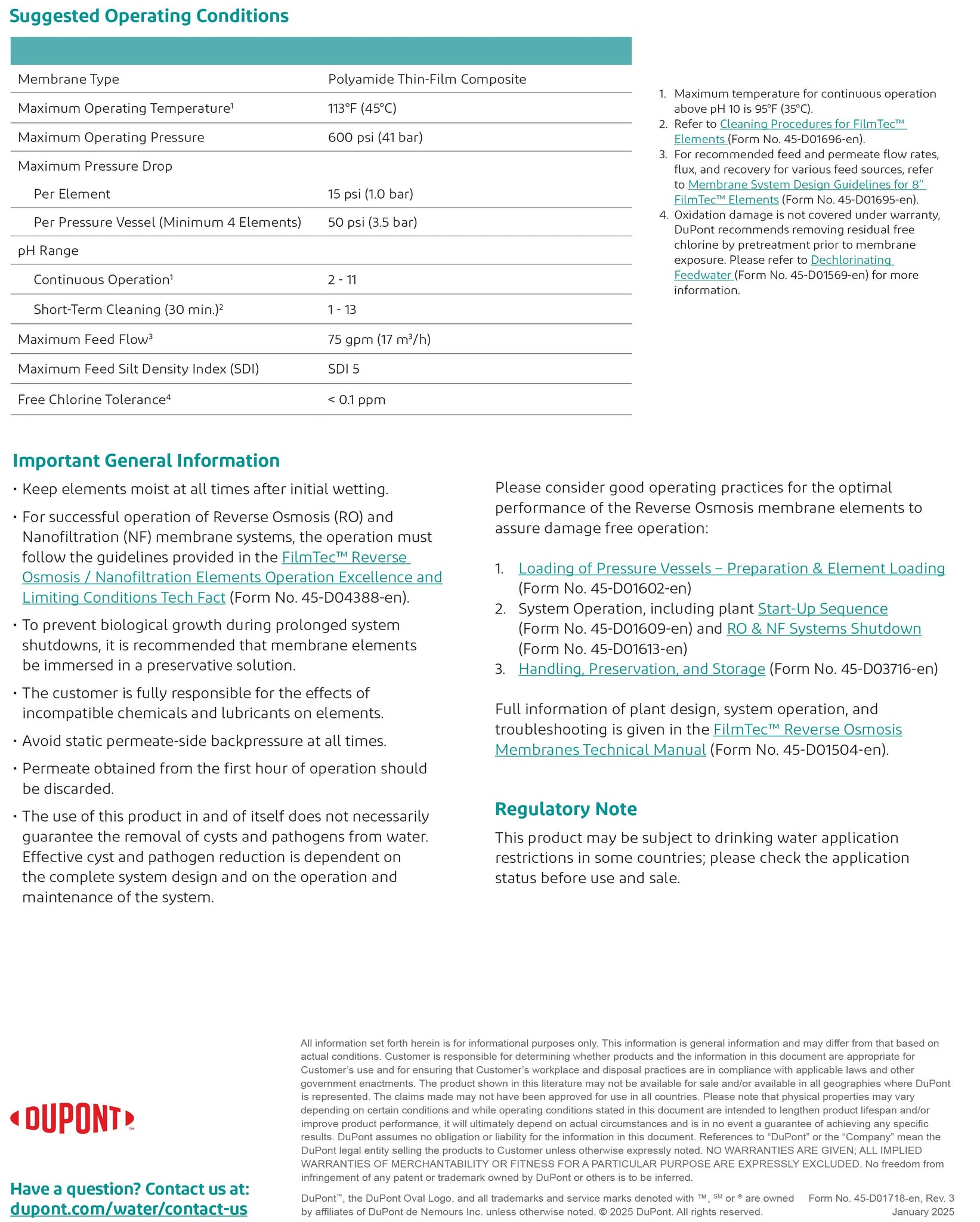

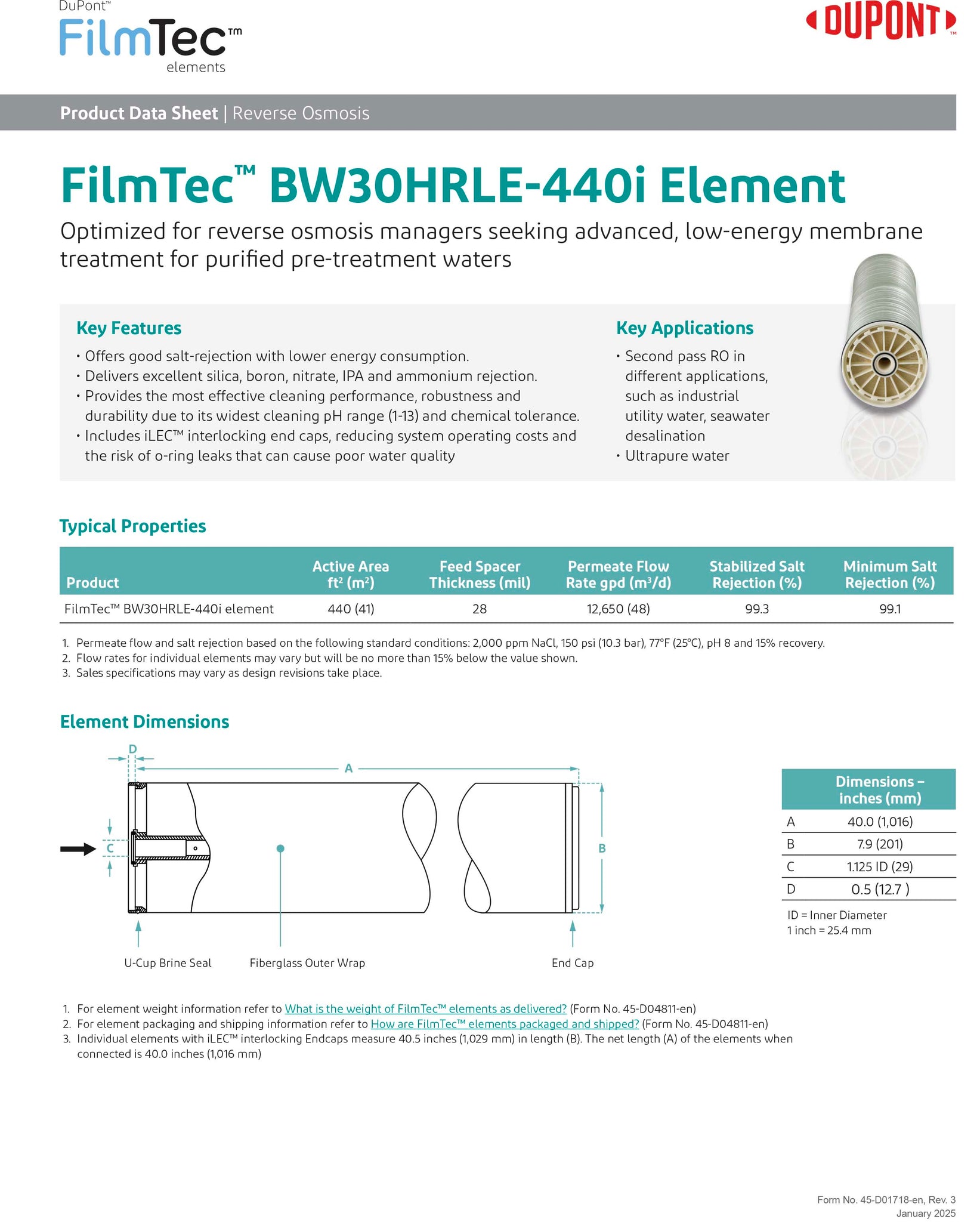

TO VIEW DATA SHEETS LARGER RIGHT CLICK SHEET AND SELECT OPEN IMAGE IN NEW TAB
