NF90-400/34i FilmTec™ DOW / DuPont Nanofiltration 10,000 GPD at 70 PSI 8 x 40 inch Membranes
- Description
- Product Accuracy & Specifications While we make every effort to ensure the accuracy of the information provided, Hydrocomponents & Technologies Inc. assumes no responsibility for errors, omissions, or typographical errors in product descriptions or specifications. Product specifications, including dimensions, materials, and performance ratings, are provided by the manufacturers and are subject to change without notice. Please consult the manufacturer's official documentation for the most current data before purchase.
NF90-400/34i FilmTec™ DOW / DuPont Nanofiltration 10,000 GPD at 70 PSI 8 x 40 inch Membranes
-
Financing Options Available at Checkout via Shop Pay & Paypal!
-
For International Shipments Contact Us for a Quote!

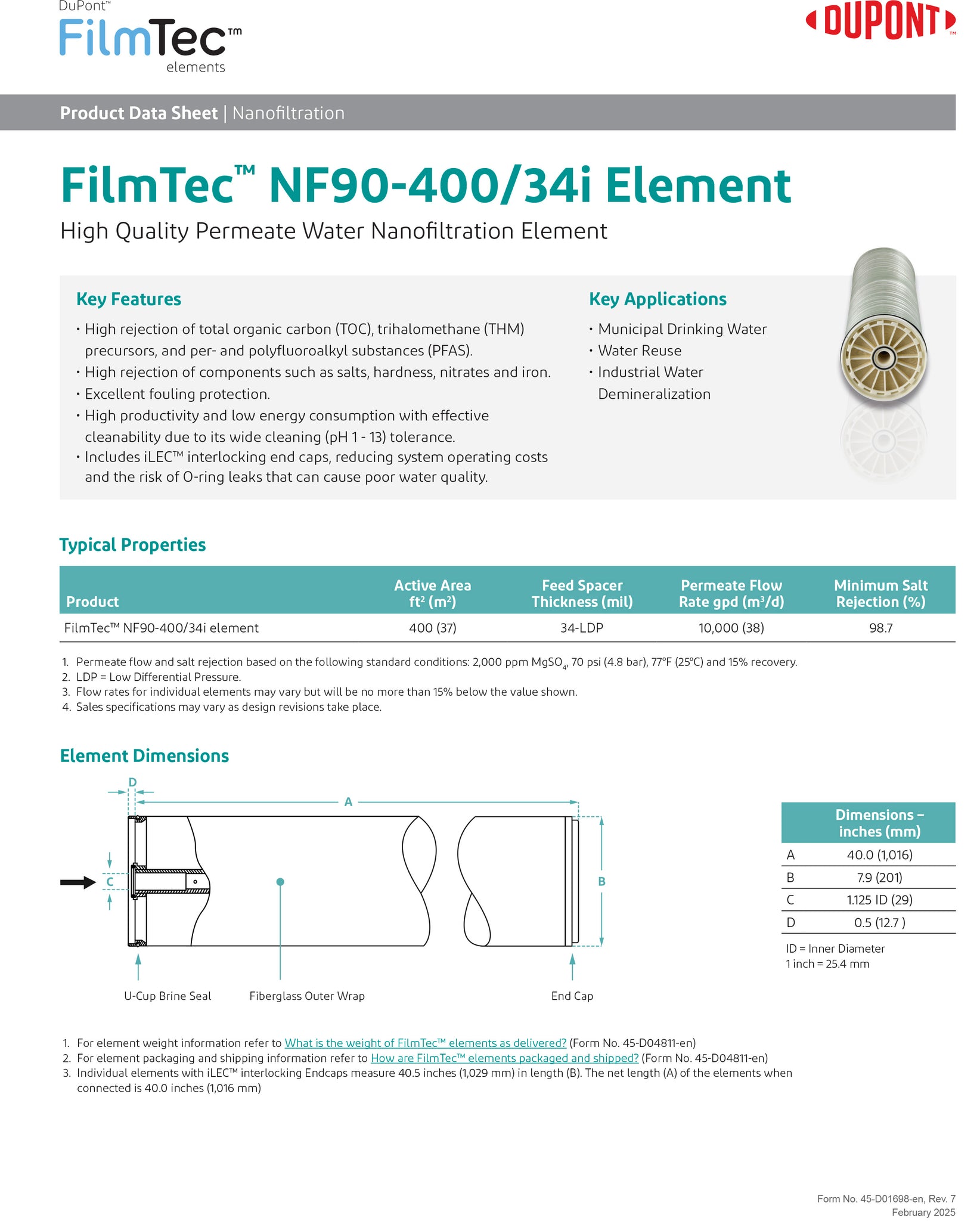

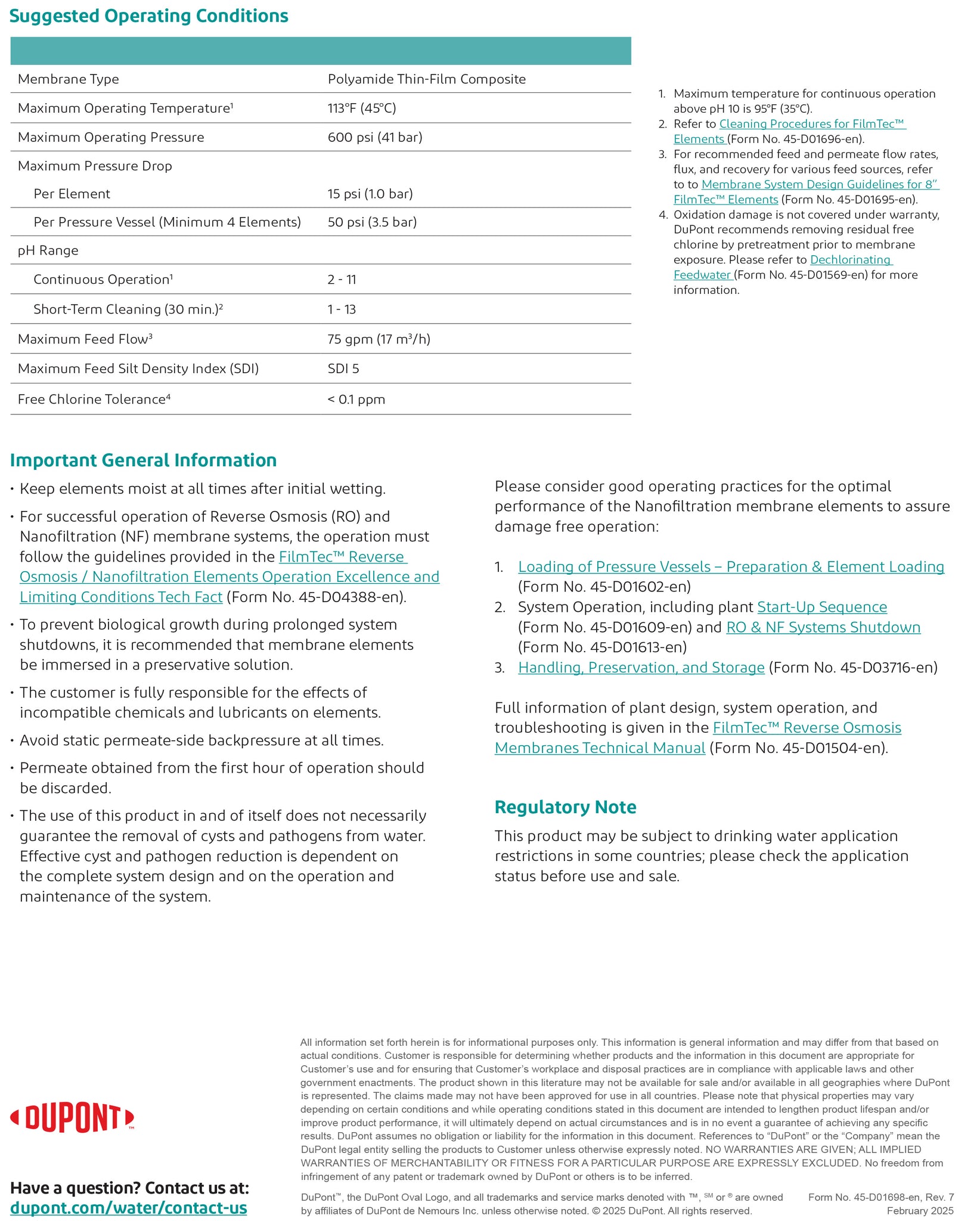

PLEASE REFERENCE DATA SHEETS & TABLE BELOW
🔬 FilmTec NF90-400/34i Nanofiltration Membrane
The FilmTec NF90-400/34i is a high-performance 8-inch nanofiltration element engineered for large-scale municipal and industrial water treatment. It is specifically designed to deliver high-quality permeate while selectively removing contaminants such as salts, nitrates, iron, and organic compounds like pesticides and herbicides. Utilizing advanced polyamide thin-film composite technology, this membrane provides a high level of productivity at low operating pressures, making it an energy-efficient solution for water softening and demineralization.
A standout feature of the NF90-400/34i is the inclusion of iLEC™ interlocking end caps, which significantly reduce the risk of O-ring leaks that can compromise water quality. The element features a 34-mil feed spacer that provides enhanced fouling protection and improves the efficiency of cleaning cycles. With an active membrane area of 400 square feet, it delivers a substantial permeate flow rate of 10,000 gallons per day, ensuring reliable and cost-effective performance for utility managers and system operators.
| SPECIFICATION | DETAILS |
| Model Number | NF90-400/34i |
| Manufacturer | FilmTec (DuPont) |
| Membrane Type | Polyamide Thin-Film Composite |
| Element Dimensions | 8.0" Diameter x 40.0" Length |
| Permeate Flow Rate | 10,000 GPD (38 m³/d) |
| Stabilized Salt Rejection | 98.7% (Minimum) |
| Typical NaCl Rejection | 90% – 96% |
| Active Surface Area | 400 ft² (37 m²) |
| Feed Spacer Thickness | 34 mil |
| Test Pressure | 70 psi (4.8 bar) |
| Max Operating Pressure | 600 psig (41 bar) |
| Max Operating Temp | 113°F (45°C) |
| pH Range (Continuous) | 2 – 11 |
| pH Range (Cleaning) | 1 – 13 |
TO VIEW DATA SHEETS LARGER RIGHT CLICK SHEET AND SELECT OPEN IMAGE IN NEW TAB
