SW30-6040 FilmTec™ DOW / DuPont Seawater Membranes 800 PSI 2,100 GPD 6 x 40 inch
SW30-6040 FilmTec™ DOW / DuPont Seawater Membranes 800 PSI 2,100 GPD 6 x 40 inch
-
FREE SHIPPING to The Continental United States!
-
For Quantity Discounts Contact Us for a Quote!
-
For International Shipping Contact Us for a Quote!
-
Call: 1 (760) 598-0189
-
Email: hctivista@gmail.com
PLEASER REFERENCE SPEC SHEET BELOW
🌊 Product Description: FilmTec™ SW30-6040 Seawater RO Element
The FilmTec™ SW30-6040 is a premier seawater reverse osmosis (SWRO) membrane element designed for high productivity and excellent salt rejection in medium-sized commercial and marine desalination systems.
| Characteristic | Measurement | Units / Notes |
| Model | SW30-6040 | - |
| Membrane Type | Polyamide Thin-Film Composite | - |
| Element Dimensions (Nominal) | 6.0 x 40 | inches |
| Active Area | 80.0 (7.4) | sq ft (sq m) |
| Permeate Flow Rate | 2,100 (7.9) | GPD (m3/day). +/- 20% flow variance. |
| Stabilized Salt Rejection | 99.0 | % (Minimum) |
| Applied Pressure (Test) | 800 (55) | psi (bar) |
| Max Operating Pressure | 1,000 (69) | psi (bar) |
| Max Operating Temperature | 113 (45) | F (C). 95 F (35 C) above pH 10. |
| Continuous pH Range | 2 - 11 | - |
| Short-Term Cleaning pH | 1 - 13 | (30 min) |
| Max Feed Flow Rate | 28 (6.4) | GPM (m3/hr) |
| Max Silt Density Index (SDI) | 5 | - |
| Free Chlorine Tolerance | < 0.1 | ppm (Requires pretreatment removal) |
Note on Test Conditions: Permeate flow rate and salt rejection are based on: 32,000 ppm NaCl, Applied Pressure (800 psi/55 bar), (), pH 8, and recovery.

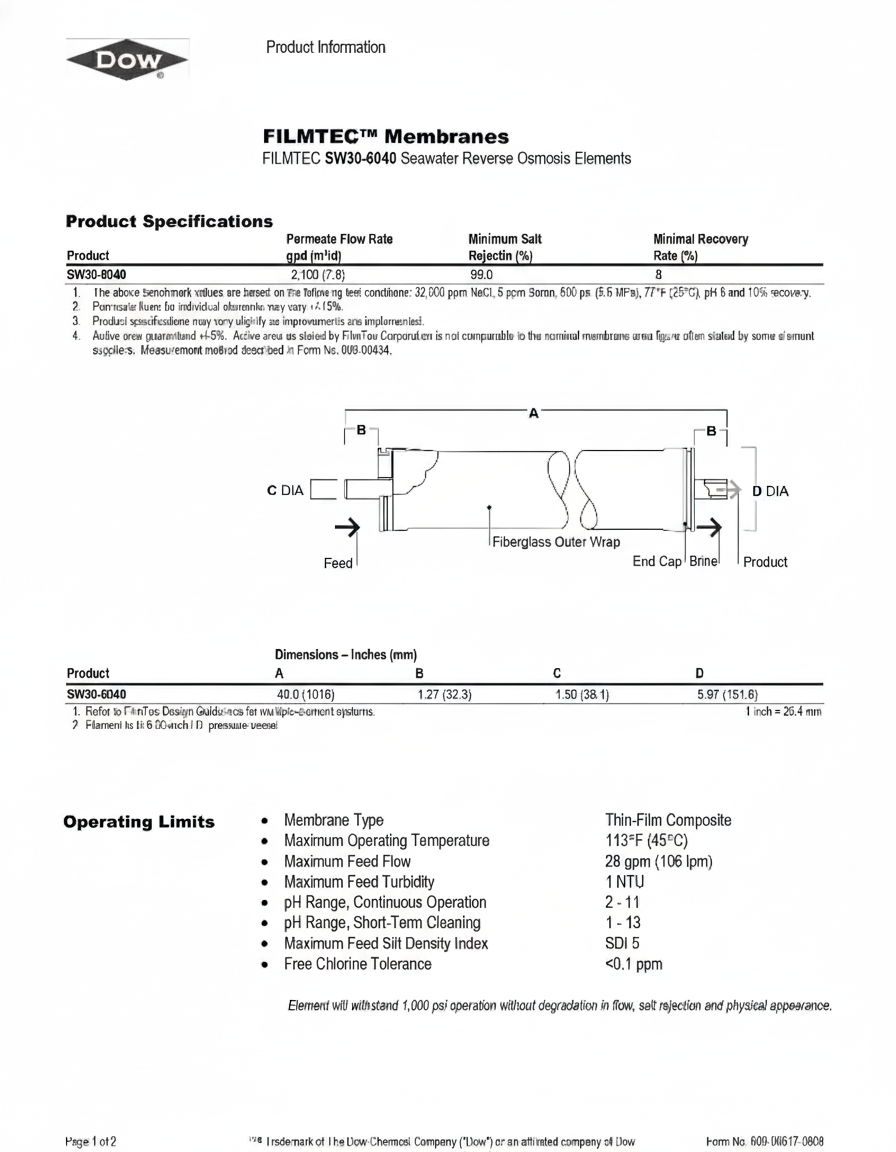

To View Spec Sheet Larger, Right Click Sheet and Select Open Image in New Tab
