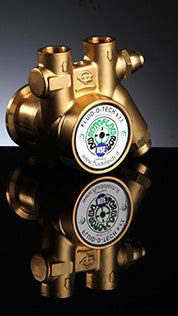

💧 Fluid-o-Tech PA 071 Brass Rotary Vane Pump with Built-in Bypass Valve
The Fluid-o-Tech PA 071 is a brass rotary vane pump from the Rotoflow® line, renowned for its positive displacement technology that delivers stable, pulsation-free flow at high pressures. Specifically designed for use with water and mildly aggressive liquids, the PA 071 is a common component in commercial reverse osmosis (RO) boost systems, carbonators, espresso machines, and chilling applications.
The PA prefix indicates that this model includes a built-in bypass/relief valve, allowing the operator to adjust the maximum discharge pressure and protect the system from pressure spikes without requiring external plumbing. Constructed with a durable brass housing, a stainless steel rotor, and carbon graphite vanes, the PA 071 is engineered for direct motor coupling via a stainless steel clamp, ensuring a compact and reliable footprint.
Technical Specifications Summary
| SPECIFICATION | DETAILS |
| Model Number | PA 071 |
| Manufacturer | Fluid-o-Tech |
| Pump Type | Rotary Vane (Positive Displacement) |
| Housing Material | Brass |
| Internal Materials | Stainless Steel Rotor, Carbon Graphite Vanes |
| Bypass Valve | Built-in and Adjustable |
| Port Size | 3/8" NPT or GAS Thread |
| Max Static Pressure | 20 bar (290 PSI) |
| Nominal Flow (60 Hz / 1725 RPM) | 30 GPH (114 LPH) at 100 PSI |
| Nominal Flow (50 Hz / 1450 RPM) | 25 GPH (95 LPH) at 100 PSI |
| Nominal HP Required | 1/4 HP @ 200 PSI |
| Mounting | Clamp Mount (Direct Motor Coupling) |
| Max Operating Temp | () |
TO VIEW DATA SHEET LARGER RIGHT CLICK SHEET AND SELECT OPEN IMAGE IN NEW TAB
| Part # | Bypass | Mount | Body | 1450 RPM | 1725 RPM | Req. HP @ 200 PSI | ||||||
| 100 PSI | 200 PSI | 100 PSI | 200 PSI | |||||||||
| GPH | LPH | GPH | LPH | GPH | LPH | GPH | LPH | |||||
| PA 071 | Yes | Clamp | Brass | 25 | 95 | 20 | 76 | 30 | 114 | 24 | 91 | 1/4 |
The PO 70-400 series positive displacement rotary vane pumps are available with brass or stainless steel housings with 3/8” GAS or NPT ports and internal relief valve. The nominal flow rates range between 70 and 400 l/h at 1450 rpm. Any vane pump of this series may be operated at 1725 rpm as well and will provide about 20% more capacity, with a maximum of 530 l/h. Maximum discharge pressure is 16 bar (230 psi). This series mounts directly to NEMA 48Y motors by means of a v-band clamp and to M71, M80 IEC and NEMA 56C motors by means of an adapter and relevant coupling.
