PA 301F / PA301F Fluid-o-Tech 100 GPH 1.67 GPM Standard Bypass Standard Brass Rotary Vane Pump PA0301FNADN0000
PA 301F / PA301F Fluid-o-Tech 100 GPH 1.67 GPM Standard Bypass Standard Brass Rotary Vane Pump PA0301FNADN0000
-
In Stock & Ships from the U.S.
PLEASE REFERENCE DATA SHEETS AND TABLE BELOW

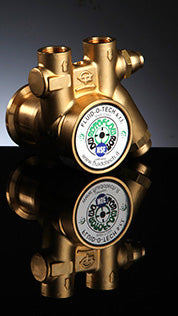

⚙️ Fluid-o-Tech PA 301F Brass Rotary Vane Pump
Product Description
The Fluid-o-Tech PA 301F is a positive displacement, rotary vane pump from the PA series, renowned for delivering smooth, pulsation-free flow. This model is constructed with a durable lead-free brass housing and features internal components, including the pumping chamber and vanes, made from carbon graphite for wear resistance and long life. This configuration is approved for contact with potable water.
The pump delivers a nominal maximum flow rate of approximately () and is rated for a maximum operating pressure of . The PA 301F typically includes a built-in pressure bypass valve for system protection and features ports. It is widely used in light commercial RO boost systems, carbonators, and high-pressure water dispensing equipment.
Specifications Table
| Characteristic | Specification | Units / Notes |
| Model Number | PA 301F | Rotary Vane Pump |
| Pump Type | Positive Displacement | Rotoflow® Rotary Vane |
| Nominal Flow Rate (Max) | 105 (1.75) | GPH (GPM) |
| Max Operating Pressure | 290 (20) | PSI (Bar) |
| Housing Material | Low-Lead Brass | Potable Water Approved |
| Internal Components | Carbon Graphite / Stainless Steel | - |
| Seal Material | NBR (Buna-N) | NSF Approved |
| Internal Relief Valve | Yes | Built-in Bypass |
| Port Connections | inch NPTF Female | - |
| Mounting Style | Clamp Mount (for 48Y Motors) | - |
| Max Liquid Temp | () | - |
TO VIEW DATA SHEETS LARGER RIGHT CLICK SHEET AND SELECT OPEN IMAGE IN NEW TAB
