PA 511 / PA511 Fluid-o-Tech 165 GPH 2.75 GPM Standard Bypass High Volume Stainless Steel Rotary Vane Pump PA0501BNENN0000
PA 511 / PA511 Fluid-o-Tech 165 GPH 2.75 GPM Standard Bypass High Volume Stainless Steel Rotary Vane Pump PA0501BNENN0000
-
FREE SHIPPING to the Continental United States!
-
In Stock & Ships from the U.S.
PLEASE REFERENCE DATA SHEETS AND TABLES BELOW

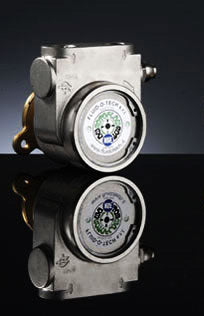

☕ Fluid-o-Tech PA 511 Rotary Vane Pump
Product Description
The Fluid-o-Tech PA 511 is a high-volume, positive displacement rotary vane pump engineered for continuous-duty service in medium-to-large commercial and light industrial systems. Constructed with a standard brass housing, the PA 511 is commonly used in high-demand beverage dispensing, large cooling circuits, and medium-capacity low-pressure Reverse Osmosis (RO) units. It excels at delivering a stable, smooth, and pulsation-free flow, which is vital for maintaining precise system performance. The pump is built for durability, featuring a stainless steel rotor and long-lasting carbon graphite vanes to ensure extended operational life and minimal maintenance requirements. Designed for direct clamp mounting to an external motor, the PA 511 is rated for a maximum static pressure of 290 PSI (20 Bar), providing reliable flow and pressure for systems where efficiency and quiet operation are priorities.
Specifications Table
| Part # | Bypass | Mount | Body | 1450 RPM | 1725 RPM | Req. HP @ 200 PSI | ||||||
| 100 PSI | 200 PSI | 100 PSI | 200 PSI | |||||||||
| GPH | LPH | GPH | LPH | GPH | LPH | GPH | LPH | |||||
| PA 511 | Yes | Clamp | Stainless steel | 139 | 526 | 134 | 507 | 165 | 625 | 159 | 602 | 3/4 |
TO VIEW DATA SHEET LARGER RIGHT CLICK SHEET AND SELECT OPEN IMAGE IN NEW TAB
The PO 500-1000 series positive displacement rotary vane pumps are available with brass or stainless steel housing with ½” GAS or NPT ports and internal relief valve. The nominal flow rates range between 500 and 1000 l/h at 1450 rpm. Any vane pumps of this series may be operated at 1725 rpm as well and will provide about 20% more capacity, with a maximum of 320 GPH. Maximum discharge pressure is 230 psi (16 bar). This series mounts directly to widely available NEMA 48Y motor by means of a v-band clamp and to M71, M80 IEC and NEMA 56C motors by means of an adapter and relevant coupling.
