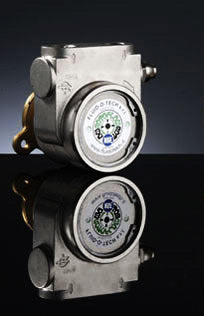

Fluid-o-Tech PA 610 (Stainless Steel Rotary Vane Pump)
📝 Product Description
The Fluid-o-Tech PA 610 is a durable, high-capacity, positive displacement rotary vane pump built for reliable commercial operation. This pump is distinguished by its AISI 303 Stainless Steel housing, which provides superior corrosion resistance for applications involving aggressive fluids, deionized water, or those requiring high purity, such as commercial Reverse Osmosis (RO) and laboratory systems.
The pump utilizes a stainless steel rotor and long-lasting carbon graphite vanes to ensure smooth, pulsation-free flow. The PA 610 is engineered for higher volume, delivering a nominal flow rate around 196 Gallons Per Hour (GPH) at standard test conditions (100 PSI, 1725 RPM). It is rated for a maximum static pressure of 290 PSI (20 Bar) and is designed for direct clamp mounting to an external motor. The PA 610 is often chosen when the enhanced durability and media compatibility of stainless steel are required.
📋 Specifications Table
| Part # | Bypass | Mount | Body | 1450 RPM | 1725 RPM | Req. HP @ 200 PSI | ||||||
| 100 PSI | 200 PSI | 100 PSI | 200 PSI | |||||||||
| GPH | LPH | GPH | LPH | GPH | LPH | GPH | LPH | |||||
| PA 610 | No | Clamp | Stainless steel | 165 | 625 | 160 | 606 | 196 | 742 | 190 | 719 | 3/4 |
TO VIEW DATA SHEET LARGER RIGHT CLICK SHEET AND SELECT OPEN IMAGE IN NEW TAB
