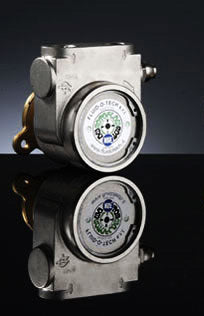

⚙️ Fluid-o-Tech PA 710 Stainless Steel High-Volume Rotary Vane Pump (227 GPH)
The Fluid-o-Tech PA 710 is a high-performance stainless steel rotary vane pump from the Rotoflow® line, designed for demanding commercial and industrial applications that require high flow rates at moderate to high pressures. As a positive displacement pump, the PA 710 ensures stable, pulse-free flow, making it ideal for large reverse osmosis (RO) systems, cooling units, and high-volume beverage dispensing.
The Stainless Steel (710 suffix) housing offers superior chemical resistance and durability compared to brass, while the internal components—a stainless steel rotor and carbon graphite pumping chamber/vanes—ensure a long service life. The pump features NPT ports for connection to larger piping systems and is designed for direct motor coupling (via clamp mount) to a 3/4 HP motor, providing the power necessary to achieve flow rates up to 227 GPH.
Technical Specifications Summary
| SPECIFICATION | DETAILS |
| Model Number | PA 710 |
| Manufacturer | Fluid-o-Tech |
| Pump Type | Rotary Vane (Positive Displacement) |
| Housing Material | Stainless Steel (AISI 303) |
| Internal Materials | Stainless Steel Rotor, Carbon Graphite Vanes |
| Bypass Valve | Built-in Adjustable Relief Valve |
| Port Size | NPT or GAS Thread |
| Max Differential Pressure | 16 bar (230 PSI) |
| Max Static Pressure | 20 bar (290 PSI) |
| Nominal Flow (60 Hz / 1725 RPM) | 227 GPH (859 LPH) @ 100 PSI |
| Required HP @ 200 PSI | 3/4 HP |
| Mounting | Clamp Mount (Direct Motor Coupling) |
| Max Operating Temp | () |
TO VIEW DATA SHEETS LARGER RIGHT CLICK SHEET AND SELECT OPEN IMAGE IN NEW TAB
| Part # | Bypass | Mount | Body | 1450 RPM | 1725 RPM | Req. HP @ 200 PSI | ||||||
| 100 PSI | 200 PSI | 100 PSI | 200 PSI | |||||||||
| GPH | LPH | GPH | LPH | GPH | LPH | GPH | LPH | |||||
| PA 710 | No | Clamp | Stainless steel | 191 | 723 | 186 | 704 | 227 | 859 | 221 | 836 | 3/4 |
The PO 500-1000 series positive displacement rotary vane pumps are available with brass or stainless steel housing with ½” GAS or NPT ports and internal relief valve. The nominal flow rates range between 500 and 1000 l/h at 1450 rpm. Any vane pumps of this series may be operated at 1725 rpm as well and will provide about 20% more capacity, with a maximum of 320 GPH. Maximum discharge pressure is 230 psi (16 bar). This series mounts directly to widely available NEMA 48Y motor by means of a v-band clamp and to M71, M80 IEC and NEMA 56C motors by means of an adapter and relevant coupling.
