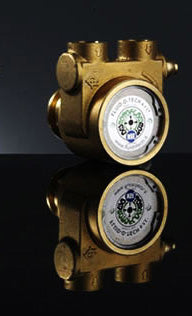

PA 901 Fluid-o-Tech 290 GPH 4.83 GPM Standard Bypass High Volume Brass Rotary Vane Pump PA0901ANDNN0000
-
Free Shipping to the Continental United States!
-
For International Shipments Contact Us for a Quote!
-
For Quantity Pricing Contact Us for a Quote!
-
Call: 1 (760) 598-0189
-
Email: hctivista@gmail.com
PLEASE REFERENCE TABLE BELOW
The PO 500-1000 series positive displacement rotary vane pumps are available with brass or stainless steel housing with ½” GAS or NPT ports and internal relief valve. The nominal flow rates range between 500 and 1000 l/h at 1450 rpm. Any vane pumps of this series may be operated at 1725 rpm as well and will provide about 20% more capacity, with a maximum of 320 GPH. Maximum discharge pressure is 230 psi (16 bar). This series mounts directly to widely available NEMA 48Y motor by means of a v-band clamp and to M71, M80 IEC and NEMA 56C motors by means of an adapter and relevant coupling.
| Part # |
Bypass |
Mount |
Body |
1450 RPM |
|
|
|
1725 RPM |
|
|
|
Req. HP @ 200 PSI |
| |
|
|
|
100 PSI |
|
200 PSI |
|
100 PSI |
|
200 PSI |
|
|
| |
|
|
|
GPH |
LPH |
GPH |
LPH |
GPH |
LPH |
GPH |
LPH |
|
| PA 901 |
Yes |
Clamp |
Brass |
244 |
924 |
239 |
905 |
290 |
1098 |
284 |
1075 |
1 |
