CAT Pumps 247 3-Frame Plunger Pump
The CAT Pumps 247 is an industrial-duty, positive displacement triplex plunger pump belonging to the 3-Frame series. Engineered for continuous-duty operation in demanding liquid transfer applications, this pump features a manifold constructed from Nickel Aluminum Bronze (NAB). This premium material choice provides exceptional resistance to corrosion and chemical attack, making the pump particularly well-suited for saltwater environments, reverse osmosis systems, misting/fogging setups, and diverse industrial cleaning processes.
Designed for high operational efficiency, the 247 utilizes a triplex reciprocating design that delivers a smooth, low-pulsation fluid output. It is rated for a flow rate of 3.6 GPM at a maximum pressure of 1200 PSI when operating at 1725 RPM. The pump is equipped with 316 Stainless Steel valve assemblies and solid ceramic plungers, which provide a durable, low-friction wear surface that significantly extends the lifespan of the internal NBR (Buna-N) seals. Its compact footprint and 1725 RPM operating speed offer significant installation flexibility, allowing for integration into belt-drive, clutch-drive, or direct-drive systems using a bell housing and flexible coupling.
| SPECIFICATION | DETAILS | NOTES |
|---|---|---|
| Model Number | 247 | N/A |
| Manufacturer | CAT Pumps | N/A |
| Pump Type | Triplex Plunger Pump (3-Frame) | N/A |
| Manifold Material | Nickel Aluminum Bronze (NAB) | Corrosion resistant |
| Max Flow Rate | 3.6 GPM (13.6 LPM) | N/A |
| Pressure Range | 100 - 1200 PSI | N/A |
| Test Pressure | 1200 PSI | N/A |
| Max Pump Speed | 1725 RPM | N/A |
| Inlet Port Size | 1/2" NPT(F) | N/A |
| Discharge Port Size | 3/8" NPT(F) | N/A |
| Shaft Diameter | 0.650" (16.5 mm) | Solid shaft |
| Max Liquid Temp | 160°F (71°C) | NBR Seals |

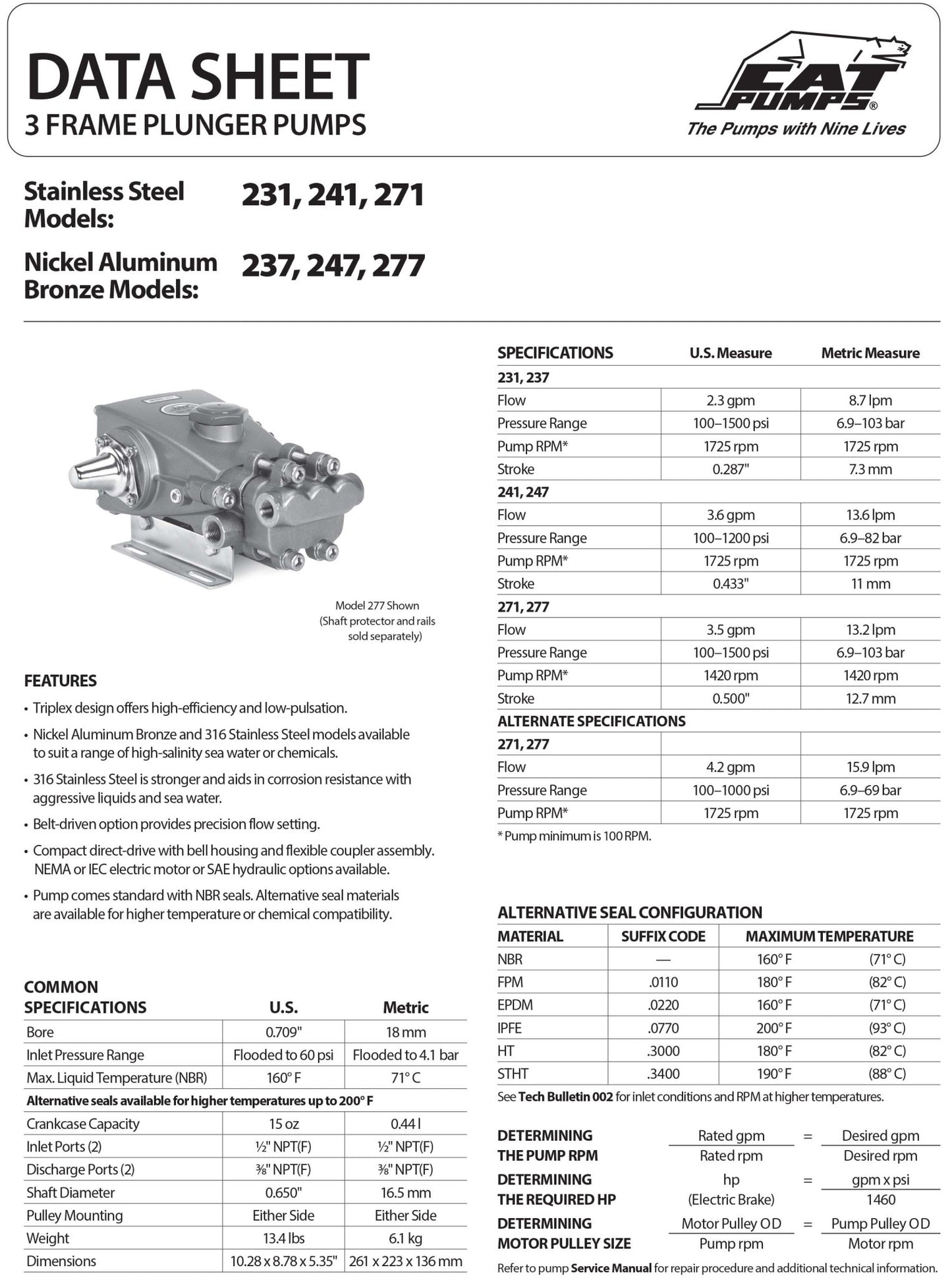

Max Volume: 3.6 GPM (13 L/M)
Max Discharge Pressure: 100 to 1200 PSI (7 to 85 Bar)
Max inlet Pressure: Flooded to 60 PSI (4 Bar)
Max RPM: 1725 RPM
Max Horsepower: 3.0 HP
Bore: 0.709" (18 mm)
Stroke: 0.433" (11 mm)
Crankcase Capacity: 10 oz. (0.3 L)
Max Fluid Temperature: 160°F (71°C)
Inlet Ports: (2) 1/2" NPT
Discharge Ports: (2) 3/8" NPT
Shaft Diameter: 0.650" (16.5 mm)
Weight: 14.4 lbs (6.5 kg)
Dimensions: 10.3" x 8.8" x 5.2" (261 x 223 x 131 mm)
Other Models Available Upon Request
