Cat Pumps

290 Cat Pressure Washer Triplex Positive Displacement Pump 3.5 GPM 1200 PSI , 3 Frame , Brass Block Chrome Plated , Standard Buna-N seals and O-rings

290 Cat Pressure Washer Triplex Positive Displacement Pump 3.5 GPM 1200 PSI , 3 Frame , Brass Block Chrome Plated , Standard Buna-N seals and O-rings

$763.64 USD
$763.64 USD
Sale Sold out

290 Cat Pressure Washer Triplex Positive Displacement Pump 3.5 GPM 1200 PSI , 3 Frame , Brass Block Chrome Plated , Standard Buna-N seals and O-rings

  • FREE SHIPPING to The Contiguous United States! (Excluding Alaska & Hawaii)

  • In Stock & Ships from The United States!

  • Financing Options Available at Checkout via Shop Pay!

  • For Quantity Discounts Contact Us for a Quote!

  • Customers Outside The Contiguous United States, Please Contact Us for a Quote!

  • Call: 1 (760) 598-0189

  • Email: hctivista@gmail.com

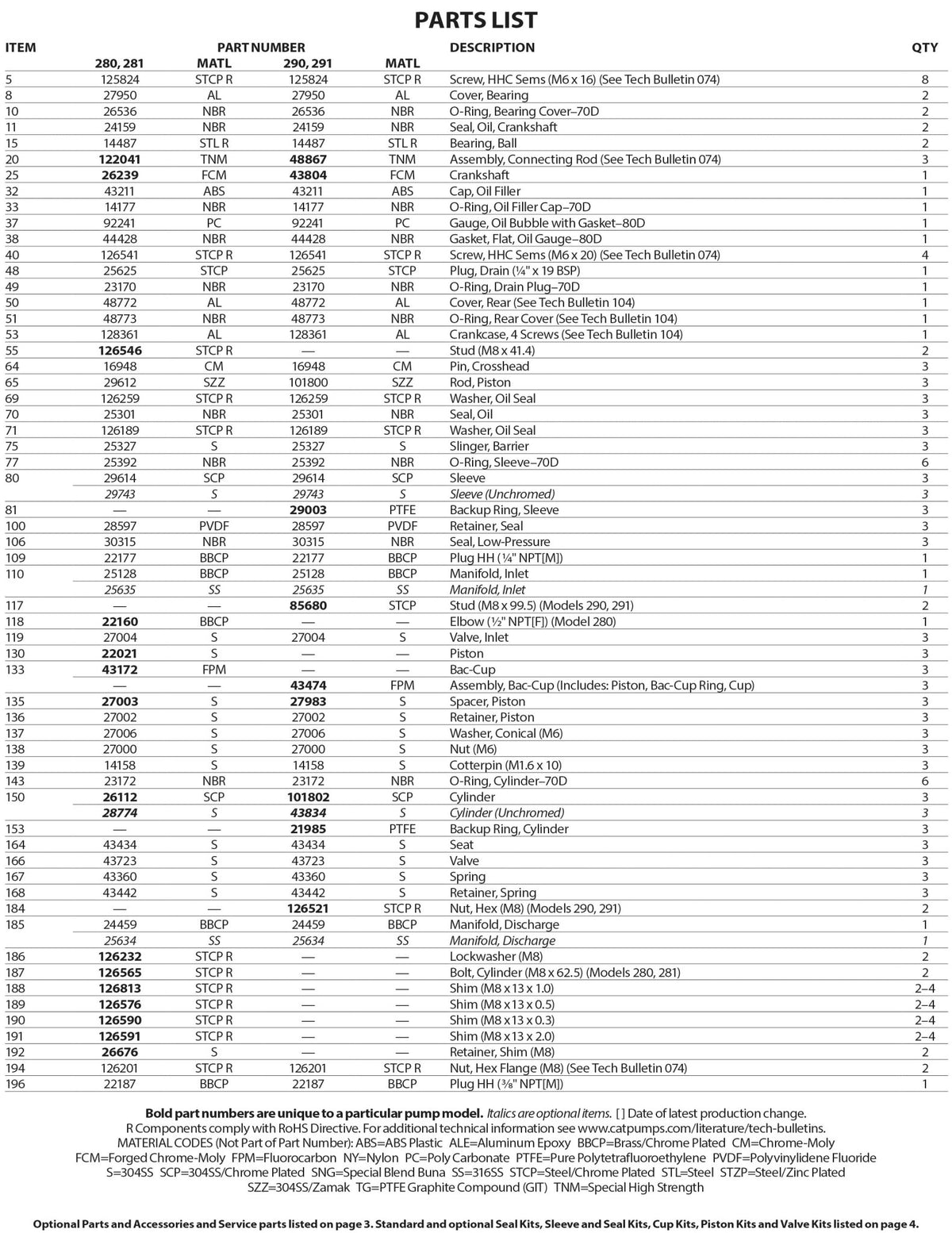

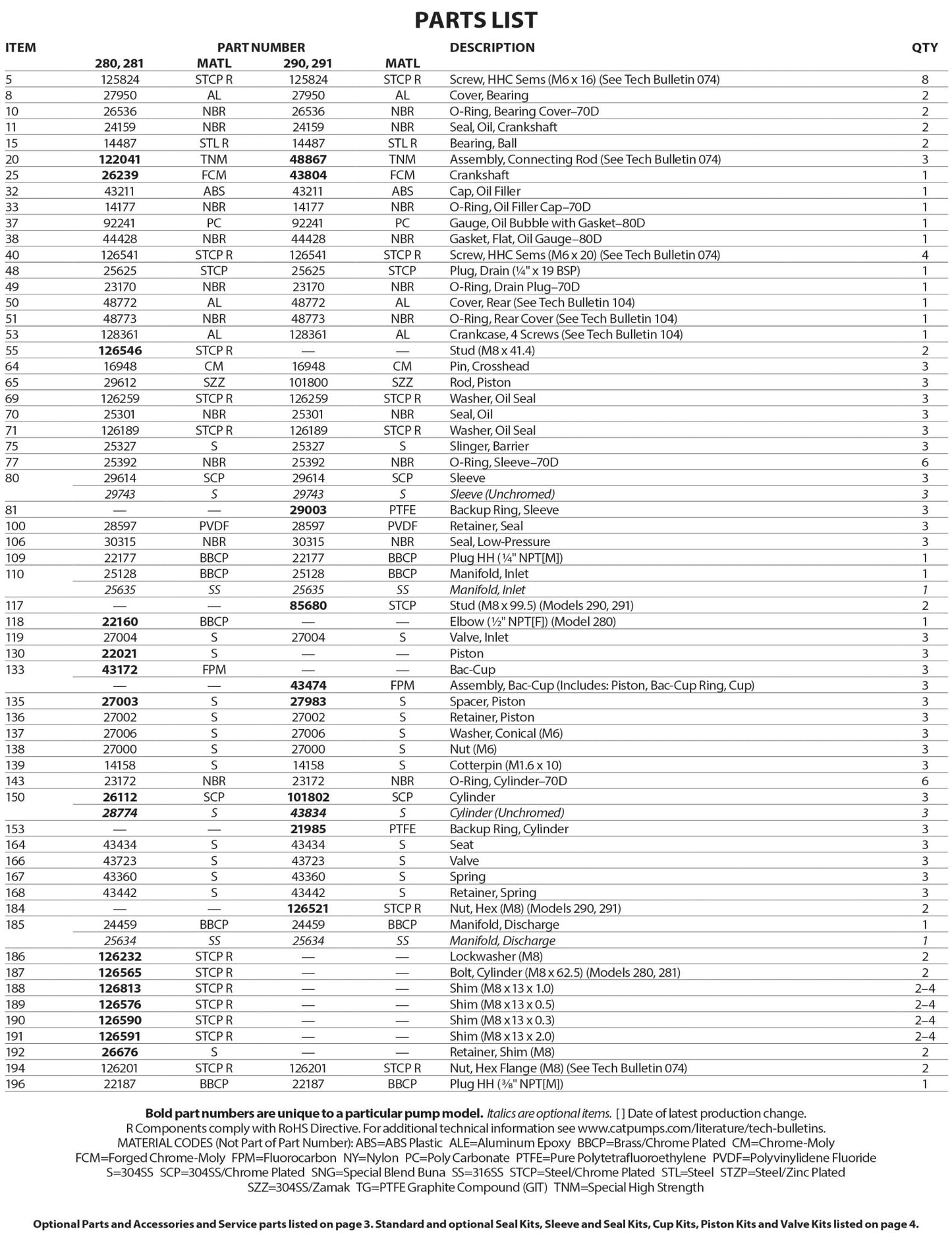

PLEASE REFERENCE TABLE BELOW



CAT Pumps 290 3-Frame Piston Pump

The CAT Pumps 290 is an industrial-duty, positive displacement triplex piston pump belonging to the highly dependable 3-Frame series. Engineered specifically for continuous or intermittent fluid transfer, this reciprocating piston pump features a highly durable wetted end constructed with chrome-plated brass manifolds, 304 stainless steel valve assemblies, and chrome-plated 304 stainless steel sleeves and cylinders. This robust internal metallurgy provides exceptional structural integrity and wear resistance, making it an optimal choice for rigorous applications such as mobile cleaning units, street sweeping equipment, CIP (Clean-In-Place) systems, and commercial pressure washing.

Designed to maximize suction capabilities and minimize cavitation, the 290 utilizes a unique Triplex Uniflow design. This engineering provides a continuous, forward liquid flow that delivers smooth, low-pulsation operation. It operates at a consistent flow rate of 3.5 GPM with a maximum pressure capacity of 1200 PSI at 1200 RPM. The lower RPM belt-drive or clutch-drive configuration further enhances the longevity of the pump and internal NBR (Buna-N) seals by reducing mechanical wear. By combining wetted floating pistons and mechanically-actuated inlet valves, this compact piston pump provides the reliable, long-lasting power required for high-demand commercial liquid handling.

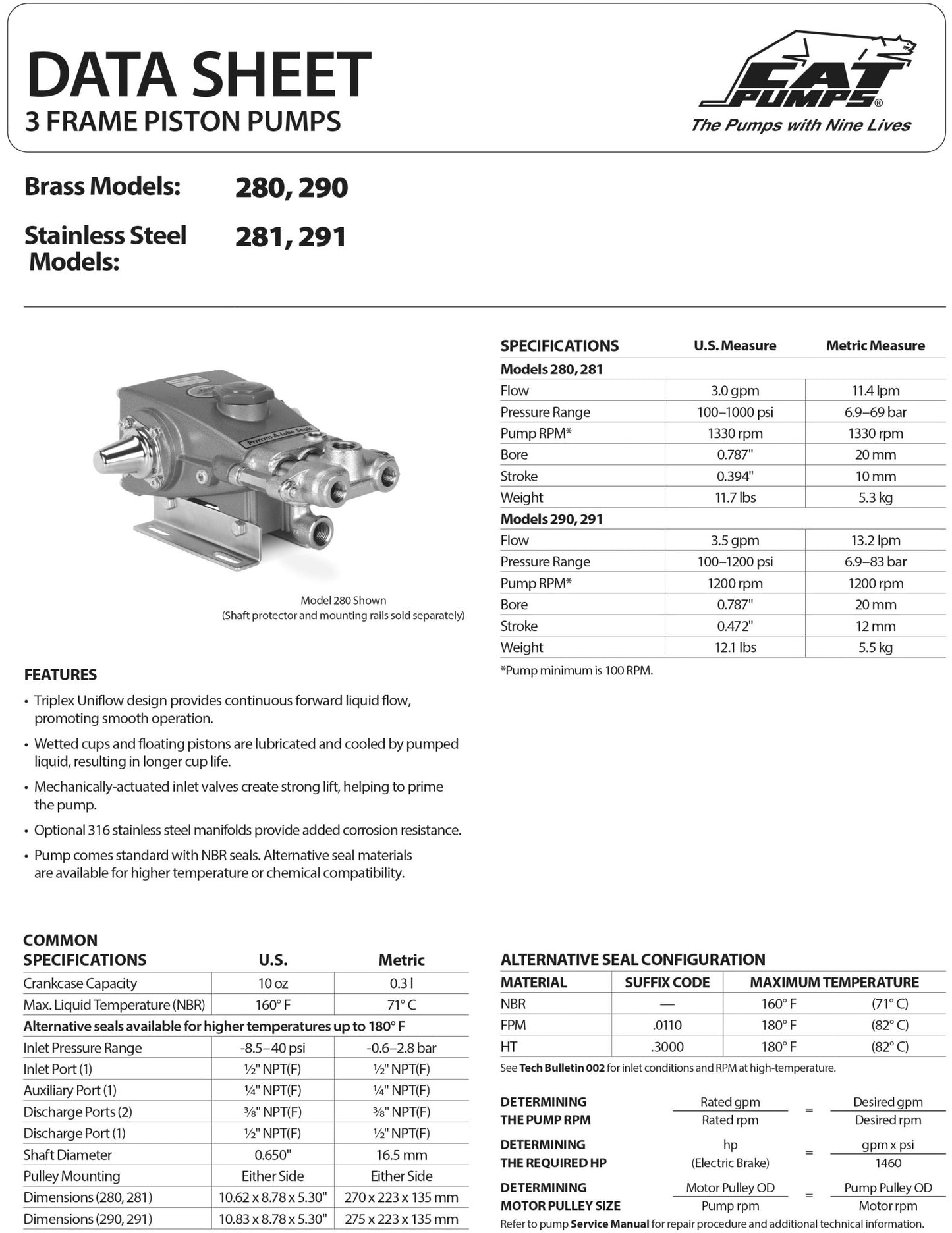

SPECIFICATION DETAILS
Model Number 290
Manufacturer CAT Pumps
Pump Type Triplex Piston Pump (3-Frame)
Manifold Material Chrome-Plated Brass
Cylinder / Sleeve Material 304 Stainless Steel
Max Flow Rate 3.5 GPM (13.2 LPM)
Pressure Range 100 - 1200 PSI
Test Pressure 1200 PSI
Max Pump Speed 1200 RPM
Inlet Port Size 1/2" NPT(F)
Discharge Port Size 3/8" NPT(F)
Shaft Diameter 0.650" (16.5 mm) Solid Shaft
Max Liquid Temp (NBR) 160°F (71°C)
