Description

LC HR-4040 FilmTec™ DOW / DuPont 225 PSI 2,600 GPD 4 x 40 inch Membranes

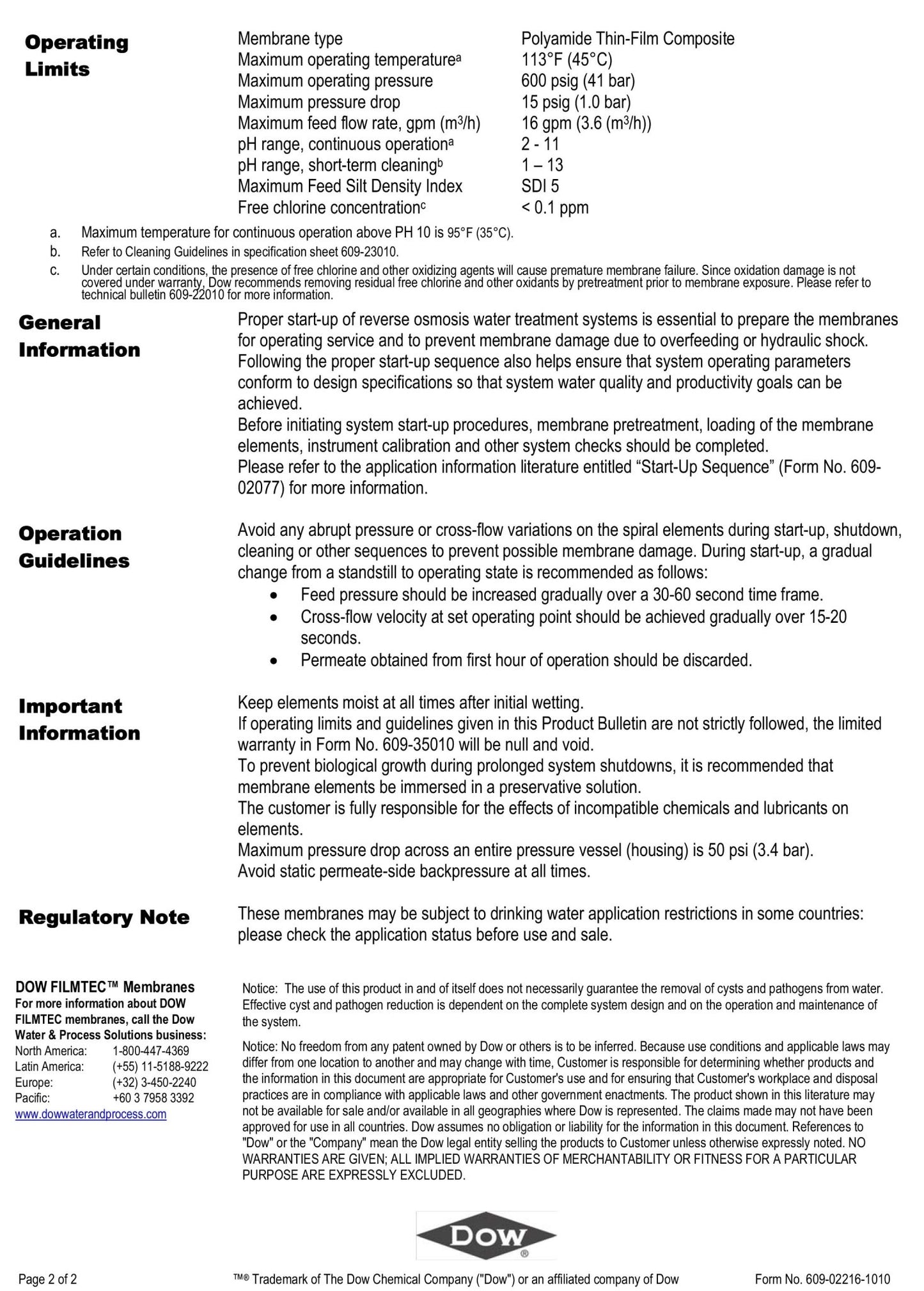

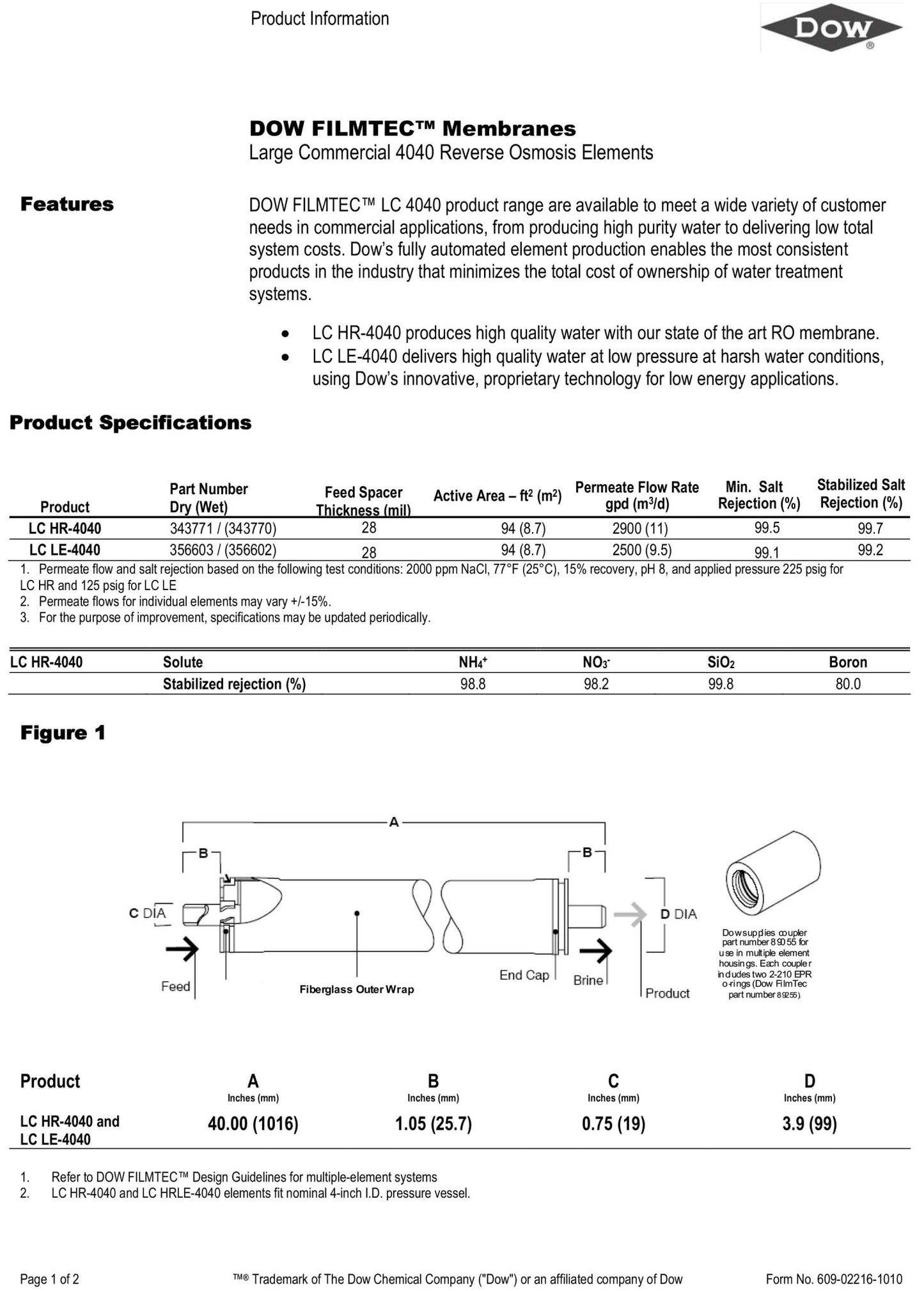

PLEASE REFERENCE DATA SHEETS AND TABLE BELOW


💧 DuPont FilmTec™ LC HR-4040 RO Element



Product Description



The DuPont FilmTec™ LC HR-4040 is a leading 4-inch by 40-inch Brackish Water Reverse Osmosis (RO) element, designed for Low-Cost (LC) operation with High Rejection (HR) performance. This element utilizes advanced Thin-Film Composite (TFC) technology to deliver superior water quality while maintaining excellent operational efficiency. It achieves an outstanding stabilized salt rejection rate of at a standard test pressure of 225 PSI, while delivering a nominal flow rate of 2,600 Gallons Per Day (GPD). The LC HR-4040 is an ideal choice for commercial purification systems, bottled water production, and industrial applications that require exceptional water purity and cost-effective operation.



Specifications Table



Characteristic Specification Units / Notes
Model LC HR-4040 Brackish Water High Rejection
Manufacturer DuPont FilmTec™ -
Membrane Type Polyamide Thin-Film Composite TFC
Element Dimensions (Nominal) inches
Active Area 80 (7.4) sq ft (sq m)
Permeate Flow Rate (Nominal) 2,600 (9.8) GPD (m3/day). tolerance
Stabilized Salt Rejection (Minimum )
Applied Pressure (Test) 225 (15.5) PSI (Bar)
Max Operating Pressure 600 (41) PSI (Bar)
Max Operating Temp 113 (45) F (C)
Continuous pH Range -


TO VIEW DATA SHEETS LARGER RIGHT CLICK SHEET AND SELECT OPEN IMAGE IN NEW TAB
