Hydrocomponents & Technologies Inc.

2540 Watermaker Housings 1000 PSI FRP Fiberglass Desalination Machine Membrane Pressure Vessels ( PV-2540SW )

2540 Watermaker Housings 1000 PSI FRP Fiberglass Desalination Machine Membrane Pressure Vessels ( PV-2540SW )

Regular price $586.15 USD
Regular price Sale price $586.15 USD
Sale Sold out
Quantity

2540 Watermaker Housings 1000 PSI FRP Fiberglass Desalination Machine Membrane Pressure Vessels ( PV-2540SW )

  • FREE SHIPPING to the Contiguous United States (Excluding Alaska & Hawaii).

  • In Stock & Ships FAST from The United States!

  • Made in The United States!

  • 1 Year Manufacturer's Warranty!

  • Quantity Pricing Available!

  • For Shipments Outside The Contiguous United States Please Contact Us for a Quote!

  • Private Labeling Available!

  • Call: 1 (760) 598-018

  • Email: hctivista@gmail.com

Hydrocomponents & Technologies Inc. Pressure Vessel Membrane Housings are Equivalent to All Major U.S. Brands!

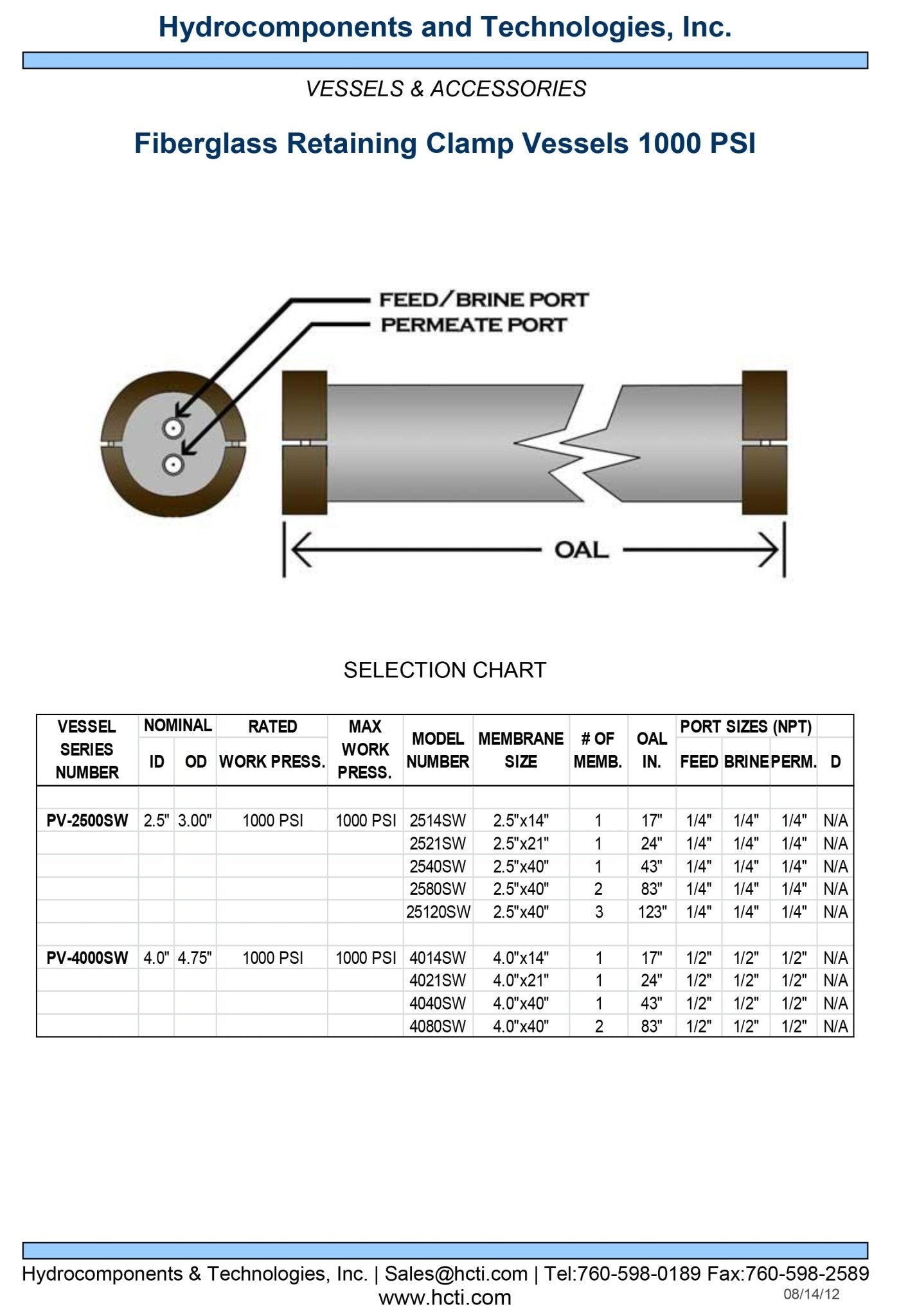

PLEASE REFERENCE TABLE BELOW



PV-2540SW 1000 PSI FRP Fiberglass Membrane Housing



The PV-2540SW is a highly durable 2.5" x 40" membrane pressure vessel designed specifically for seawater desalination applications operating at pressures up to 1000 PSI. Constructed from non-corrosive fiberglass reinforced plastic (FRP) in a natural color, this housing provides long-lasting reliability in harsh, high-salinity environments. It features an end-entry configuration equipped with standard 1/4" feed, brine, and permeate ports. The design intentionally incorporates maximum separation between the permeate port and the feed/concentrate ports, allowing for the effortless use of larger fittings during installation.

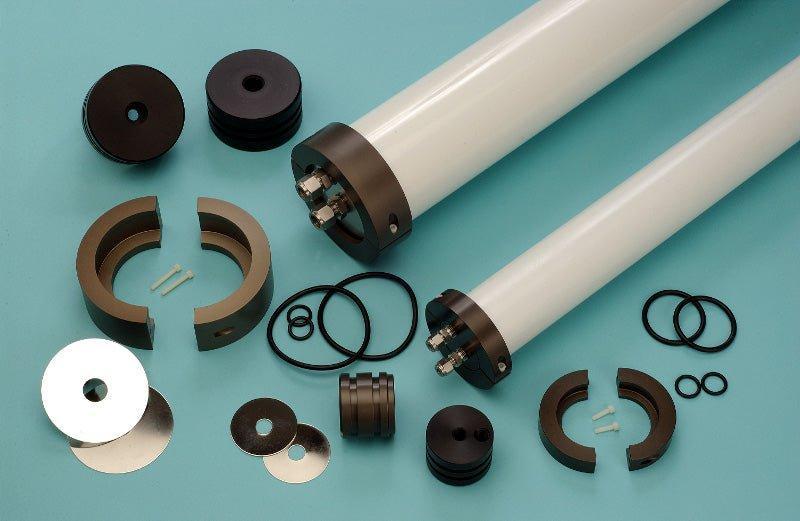

Assembly and maintenance are streamlined through the integration of flush-mount end plugs—available in either anodized aluminum or acetal co-polymer with stainless steel backing plates—and secured by anodized aluminum retaining clamp locking devices. Ethylene propylene FDA-approved O-rings are included as the standard seal to ensure safe and leak-free operation. This universal-style housing is engineered to fit standard 2.5" x 40" membranes, and this specific package includes a free MEM-2540SW-HF seawater membrane.



Specification Details Notes
Model Number PV-2540SW -
Membrane Size 2.5" x 40" Universal style
Number of Membranes 1 -
Maximum Pressure 1000 PSI Test PSI not available
Overall Length (OAL) 43 inches -
Feed Port 1/4" End entry
Brine Port 1/4" End entry
Permeate Port 1/4" -
Housing Material Fiberglass (FRP) Natural color (white optional)
Retaining Device Anodized Aluminum Clamp locking devices
End Plugs Anodized Aluminum / Acetal co-polymer Flush mount with SS backing plates
O-Rings Ethylene propylene FDA approved (Silicon upon request)
