6 Membrane 8" inch 300 PSI FRP Fiberglass Pressure Vessel Membrane Housings ( PV-80240SE-FRP-300 )

6 Membrane 8" inch 300 PSI FRP Fiberglass Pressure Vessel Membrane Housings ( PV-80240SE-FRP-300 )

Regular price $1,448.91 USD
Regular price Sale price $1,448.91 USD
Sale Sold out
Quantity

6 Membrane 8" inch 300 PSI FRP Fiberglass Pressure Vessel Membrane Housings ( PV-80240SE-FRP-300 )

  • For Quantity Discounts, Contact Us for a Quote!

  • For International Shipments, Contact Us for a Quote!

  • Call: 1 (760) 598-0189

  • Email: hctivista@gmail.com


PLEASE REFERENCE TABLE BELOW

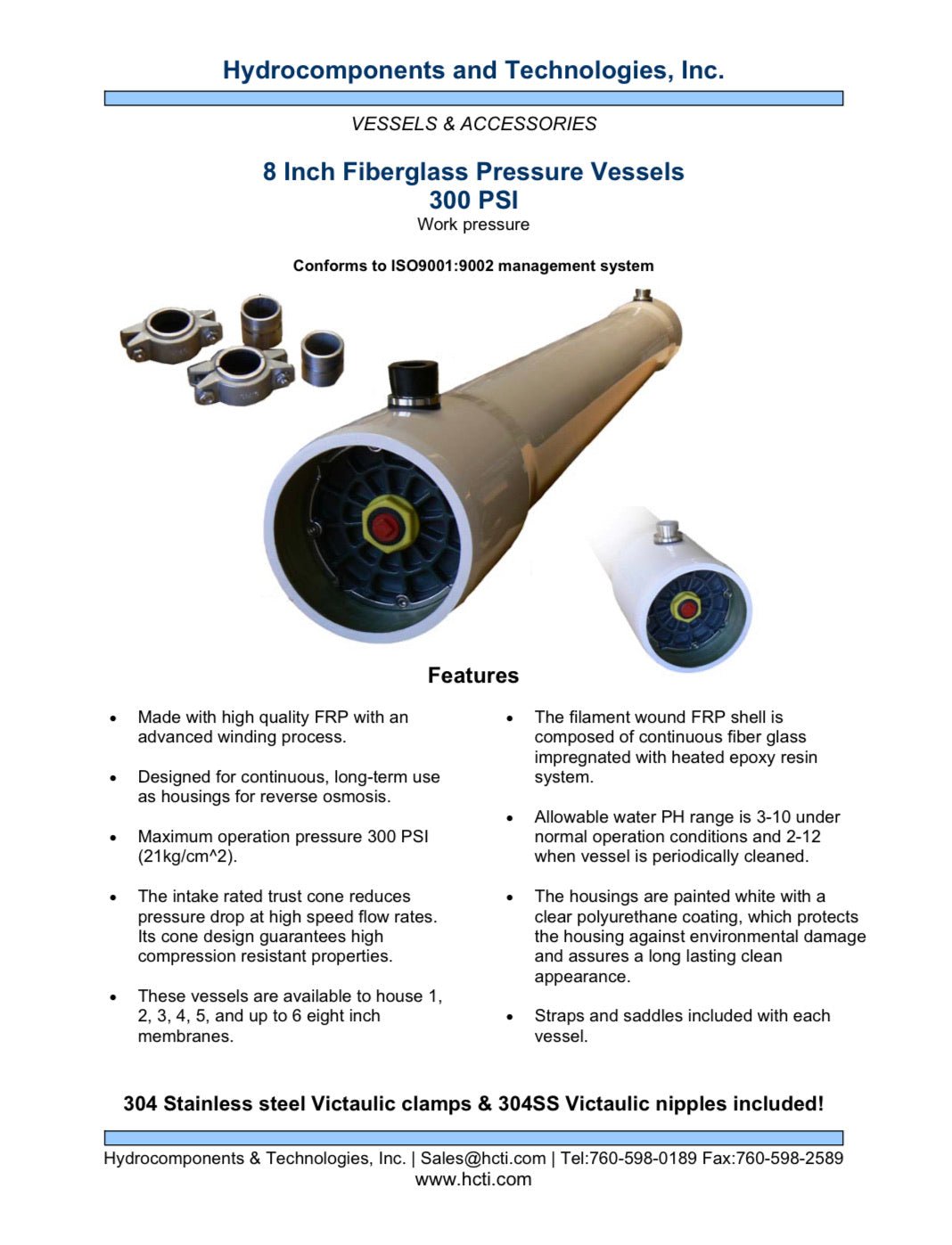

  • Made with high quality FRP with an advanced winding process.
  • Designed for continuous, long-term use as housings for reverse osmosis.
  • Maximum operation pressure 300 PSI (21kg/cm2).
  • The intake rated trust cone reduces pressure drop at high speed flow rates. Its cone design guarantees high compression resistant properties.
  • These vessels are available to house 1, 2, 3, 4, 5, and up to 6 eight inch membranes.
  • The filament wound FRP shell is composed of continuous fiber glass impregnated with heated epoxy resin system.
  • Allowable water PH range is 3-10 under normal operation conditions and 2-12 when vessel is periodically cleaned.
  • The housings are painted white with a clear polyurethane coating, which protects the housing against environmental damage and assures a long lasting clean appearance.

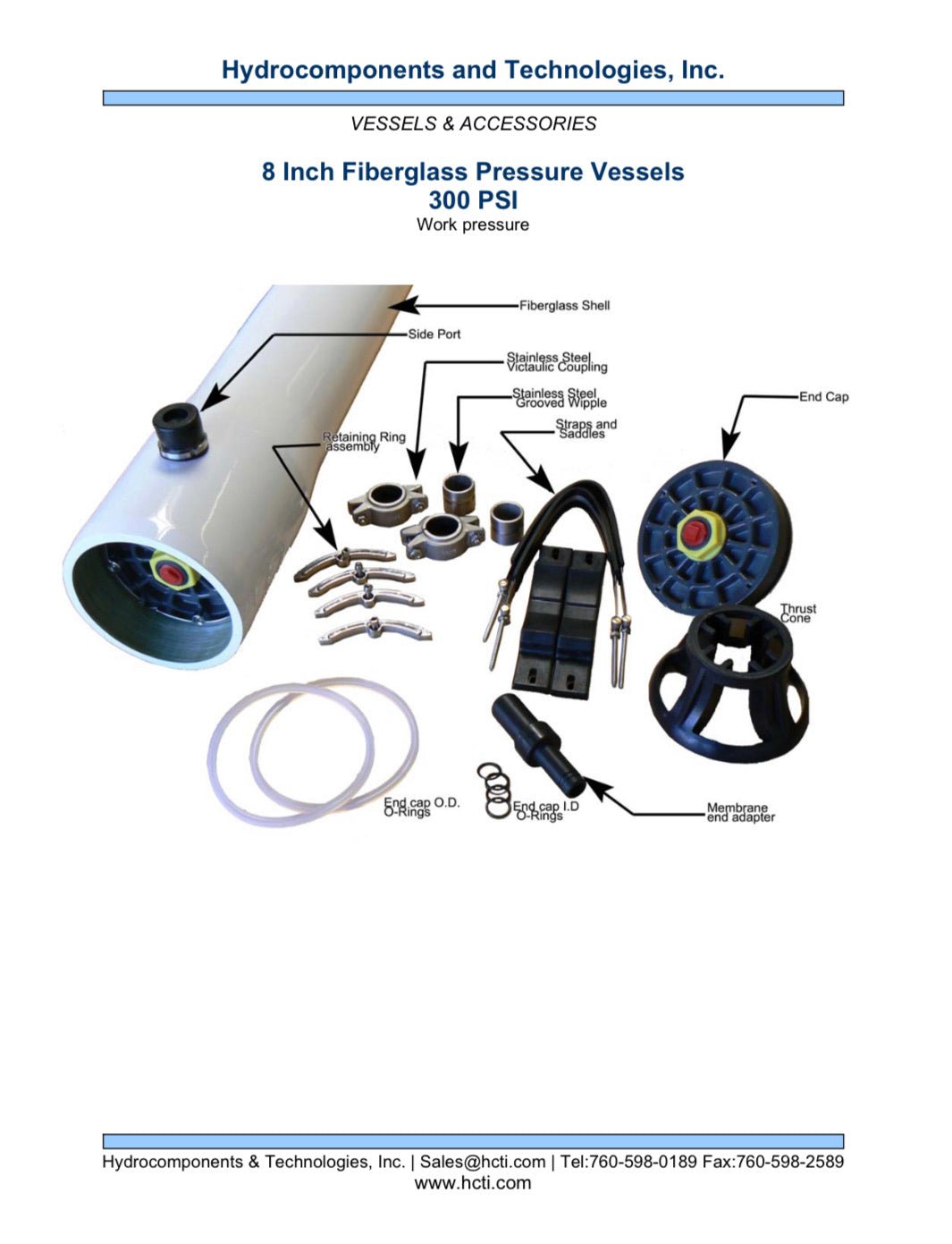

  • Straps and saddles included with each vessel.

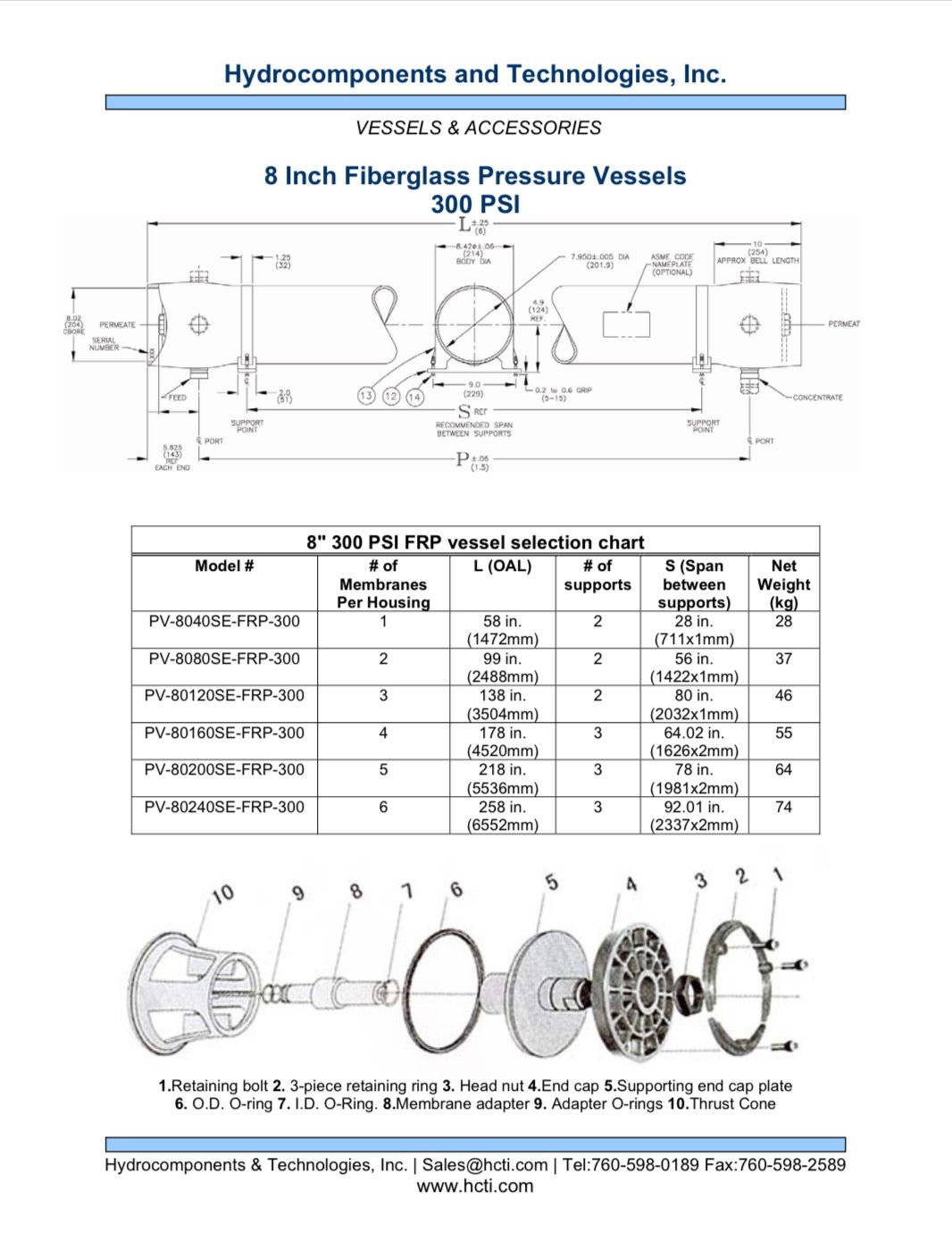

Model # # of membranes OAL (in) # of supports Span between supports Net weight
PV-80240SE-FRP-300 6 258 in.(6552mm) 3 92.01 in(2337x2mm) 74kg
