PA 211F / PA211F Fluid-o-Tech 75 GPH 1.25 GPM Standard Bypass Stainless Steel Rotary Vane Pump PA0201HHCDN0000

PA 211F / PA211F Fluid-o-Tech 75 GPH 1.25 GPM Standard Bypass Stainless Steel Rotary Vane Pump PA0201HHCDN0000

• FREE SHIPPING to the Continental United States!

• In Stock and Ships from the United States!

• Financing Options Available at Checkout via Shop Pay & Paypal!

• For Quantity Discounts Contact Us for a Quote!

• For International Shipments Contact Us for a Quote!

• Call: 1 (760) 598-0189

• Email: hctivista@gmail.com

PLEASE REFERENCE TABLE BELOW

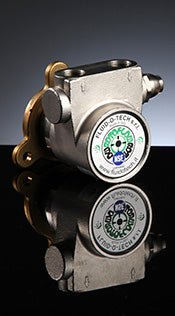

Fluid-o-Tech PA 211F Rotary Vane Pump

The Fluid-o-Tech PA 211F is a specialized positive displacement rotary vane pump from the PO/PA 70-400 Series, designed for applications requiring a direct flange connection rather than the standard band clamp. This model delivers a nominal flow rate of 200 LPH (approximately 53 GPH), making it an ideal choice for commercial espresso machines, beverage dispensers, and water circulation systems where a bolt-on motor interface is required.

The "211" designation indicates that this is the Flange Mount version of the standard 200-series pump (as opposed to the "201" clamp mount), allowing it to bolt directly to specific motors with a matching 2-bolt or 3-bolt face. The "F" suffix typically confirms the presence of an integrated wire mesh filter in the inlet port, providing an extra layer of protection against debris. Constructed with a robust Brass housing and featuring an internal adjustable bypass valve, this pump ensures consistent pressure control and reliable operation in professional environments.

Product Accuracy & Specifications: While we make every effort to ensure the accuracy of the information provided, Hydrocomponents & Technologies Inc. assumes no responsibility for errors, omissions, or typographical errors in product descriptions or specifications. Product specifications, including dimensions, materials, and performance ratings, are provided by the manufacturers and are subject to change without notice. Please consult the manufacturer's official documentation for the most current data before purchase.

The PO 70-400 series positive displacement rotary vane pumps are available with brass or stainless steel housings with 3/8” GAS or NPT ports and internal relief valve. The nominal flow rates range between 70 and 400 l/h at 1450 rpm. Any vane pump of this series may be operated at 1725 rpm as well and will provide about 20% more capacity, with a maximum of 530 l/h. Maximum discharge pressure is 16 bar (230 psi). This series mounts directly to NEMA 48Y motors by means of a v-band clamp and to M71, M80 IEC and NEMA 56C motors by means of an adapter and relevant coupling.
