300 GPD Watermaker Membrane + Housing 2.5 x 21 inch
300 GPD Watermaker Membrane + Housing 2.5 x 21 inch
Couldn't load pickup availability
300 GPD Seawater Membrane + 1000 PSI Housing (FRP Fiberglass) Watermaker Bundle.
-
Found a Better Price? Contact Us We'll See if We Can Get You a Better Deal!
-
FREE SHIPPING to the Contiguous United States (Excluding Alaska & Hawaii).
-
In Stock & Ships FAST from The United States!
-
Quantity Pricing Available!
-
For Shipments Outside The Contiguous United States Please Contact Us for a Quote!
-
Private Labeling Available!
-
Call: 1 (760) 598-018
-
Email: hctivista@gmail.com
PLEASE REFERENCE TABLE BELOW

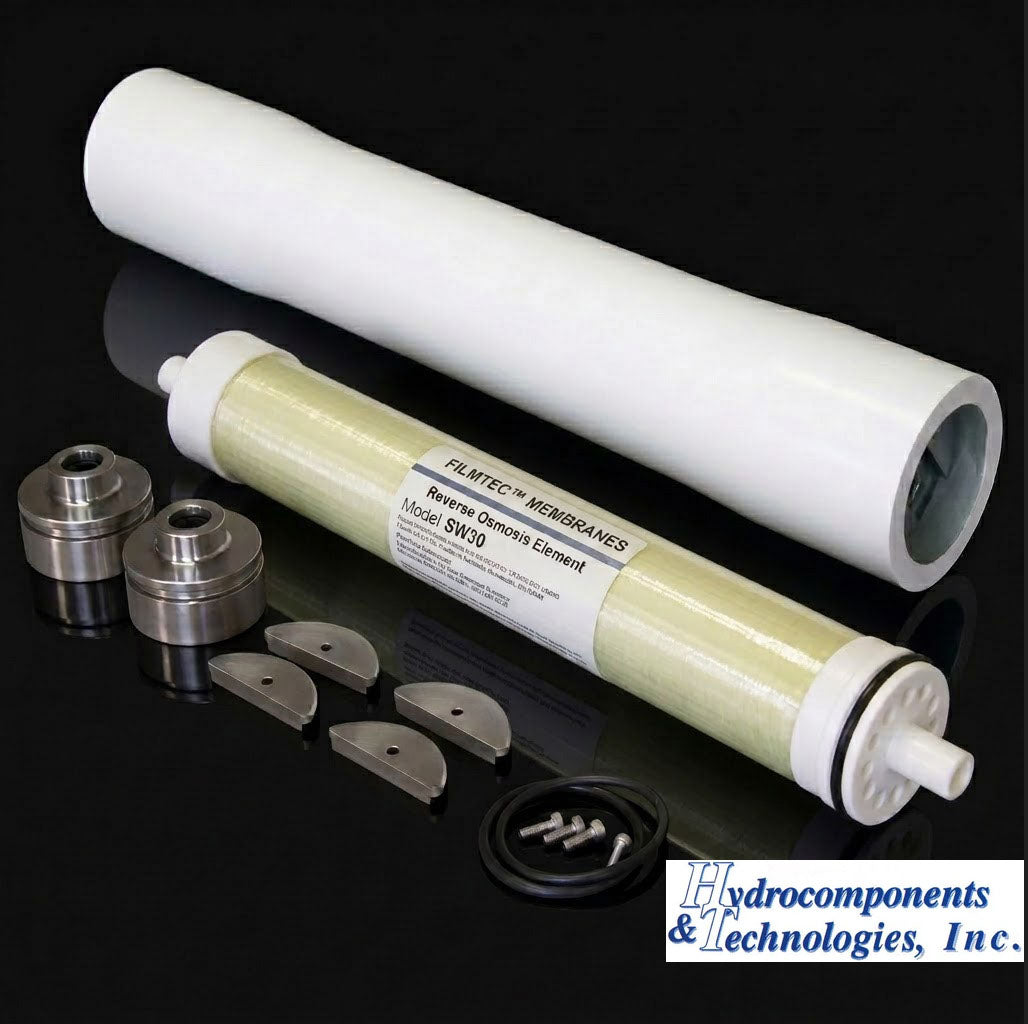

2.5" x 21" Premium Watermaker Membrane & FRP Housing Bundle
This industrial-grade seawater watermaker bundle provides a complete, high-performance filtration solution designed specifically for demanding marine desalination and off-grid freshwater systems. Combining an industry-leading seawater reverse osmosis (RO) membrane with a rugged fiberglass pressure vessel, this kit is engineered to deliver exceptional salt rejection and high productivity in continuous-duty applications. It is an ideal, turnkey replacement or upgrade for compact yacht desalination setups, offshore platforms, and land-based seawater treatment facilities that require reliable, long-term performance in high-salinity environments.
At the core of this bundle is a premium, 2.5-inch by 21-inch spiral-wound RO membrane utilizing advanced polyamide thin-film composite (TFC) technology. Designed for operational efficiency, this element delivers a nominal permeate flow rate of 300 gallons per day (GPD) with a highly stabilized salt rejection rate of 99.4%. It is optimized to achieve this impressive flux at a standard applied test pressure of 800 PSI, minimizing the energy consumption required by high-pressure booster pumps while maximizing the output of high-purity potable water.
To ensure safe and reliable operation under extreme pressure, the membrane is paired with the heavy-duty PV-FRP-2521-1000 pressure vessel. Constructed using an advanced filament winding process, this housing features a continuous fiberglass shell impregnated with a heated epoxy resin system, allowing it to safely handle a maximum operating pressure of 1,000 PSI. The clean, white-painted housing is equipped with precision-machined stainless steel end caps utilizing double O-rings for a secure, leak-proof seal. Complete with mounting straps, saddles, and standard 1/4" NPT ports, this bundle provides a highly durable and perfectly matched solution for critical watermaker processing.
| Specification | Details |
| Bundle Type | Membrane & Housing Kit |
| Membrane Type | Premium Seawater RO (Polyamide TFC) |
| Membrane Size | 2.5" x 21" |
| Permeate Flow Rate | 300 GPD (1.1 m³/d) |
| Stabilized Salt Rejection | 99.4% |
| Membrane Max Pressure | 1000 PSI (69 bar) |
| Test PSI (Applied Pressure) | 800 PSI (55 bar) |
| Housing Model | PV-FRP-2521-1000 |
| Housing Material | Filament Wound FRP (Heated Epoxy Resin) |
| Housing Max Pressure | 1000 PSI (69 bar) |
| End Cap Material | Stainless Steel (Double O-Ring Seal) |
| Overall Length (OAL) | 26.00" |
| Port Size | 1/4" NPT |
| Included Hardware | Mounting Straps and Saddles |
