Cat Pumps 67102 Duplex Stainless Steel Triplex Plunger Pump (100 GPM, 1000 PSI)
The Cat Pumps 67102 is an industrial-duty, 60-frame triplex positive displacement plunger pump engineered for ultra-high-volume, continuous-duty fluid transfer in the most demanding commercial environments. Constructed with a heavy-duty cast duplex stainless steel (SCS11) manifold and precision-machined 316 stainless steel valve assemblies, this massive pump delivers exceptional structural integrity and superior corrosion resistance. This premium metallurgy makes it perfectly suited for handling aggressive liquids in applications such as seawater reverse osmosis (SWRO) desalination, centralized cleaning systems, and massive multi-gun washdown setups where standard components would quickly degrade. Its internal wet-end utilizes highly polished, concentric solid ceramic plungers that provide a true wear surface, minimizing friction and maximizing the lifespan of the V-packings and low-pressure seals during rigorous continuous use.
Designed to maximize operational efficiency and long-term reliability, the 67102 delivers a staggering flow rate of 100 gallons per minute (GPM) at a maximum operating pressure of 1,000 PSI when driven at 680 RPM. For systems requiring higher pressure, it features an alternate specification capable of producing 80 GPM at 1,200 PSI when driven at 540 RPM. It features an exceptionally low unswept volume that maximizes volumetric efficiency, ensuring consistent flow while significantly reducing overall energy costs. The pump utilizes a high-capacity drive-end featuring oversized bearings and a 10-quart splash oil-bath crankcase design to ensure maximum load capacity and thousands of hours of trouble-free service. Equipped with high-flow 2-1/2" NPT(F) inlet and 2" NPT(F) discharge ports, this incredibly durable pump provides a highly reliable, industry-leading solution for high-capacity chemical processing, wastewater reclamation, and heavy-duty industrial washdown.

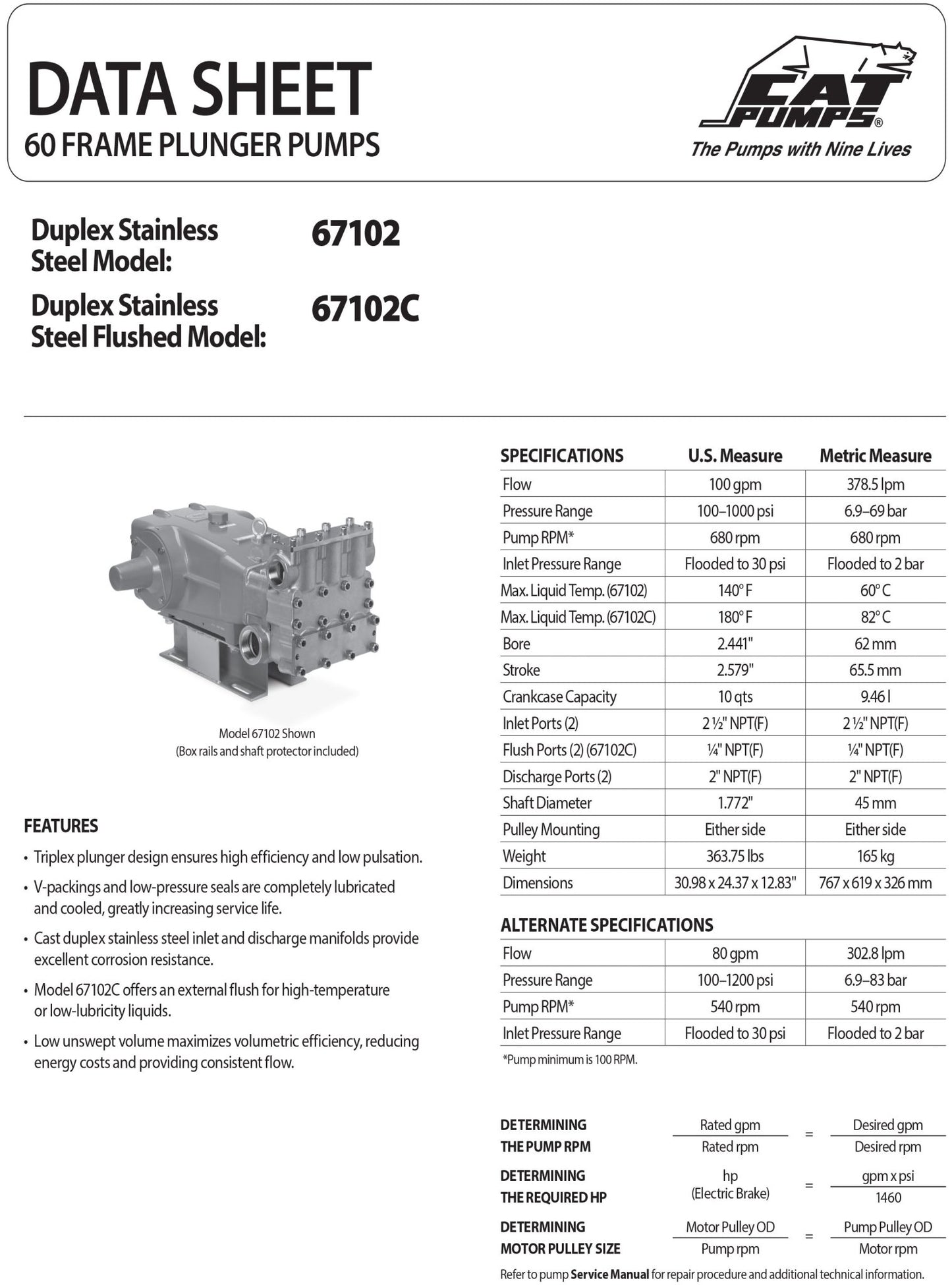

| Specification | Details |
|---|---|
| Model Number | 67102 |
| Manufacturer | Cat Pumps |
| Pump Type | Triplex Plunger Pump (Positive Displacement) |
| Frame Size | 60-Frame |
| Manifold Material | Cast Duplex Stainless Steel (SCS11) |
| Valve Assembly Material | 316 Stainless Steel |
| Seal Material | NBR (Buna-N) |
| Max Flow Rate | 100.0 GPM (378.5 LPM) |
| Alternate Flow Rate | 80.0 GPM (302.8 LPM) |
| Max Operating Pressure | 1000 PSI (69 bar) |
| Alternate Operating Pressure | 1200 PSI (83 bar) |
| Test PSI (Applied Pressure) | 1000 PSI (69 bar) |
| Max Pump Speed | 680 RPM (540 RPM Alternate) |
| Max Liquid Temp | 140°F (60°C) |
| Inlet Port Size | (2) 2-1/2" NPT(F) |
| Discharge Port Size | (2) 2" NPT(F) |
| Bore | 2.441" (62 mm) |
| Stroke | 2.579" (65.5 mm) |
| Crankcase Capacity | 10 qts (9.46 L) |
| Weight | 363.75 lbs (165 kg) |
