ESPA1-4040 Hydranautics Nitto Membranes

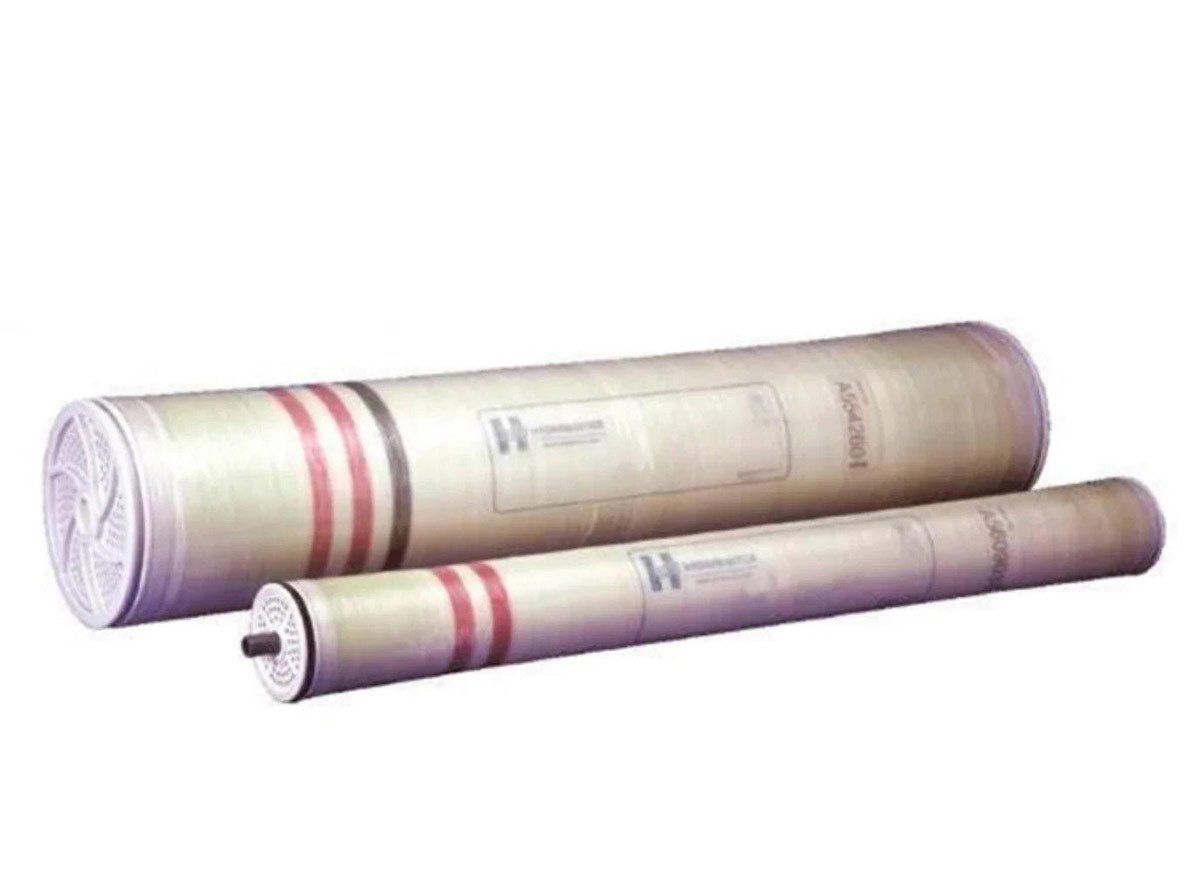

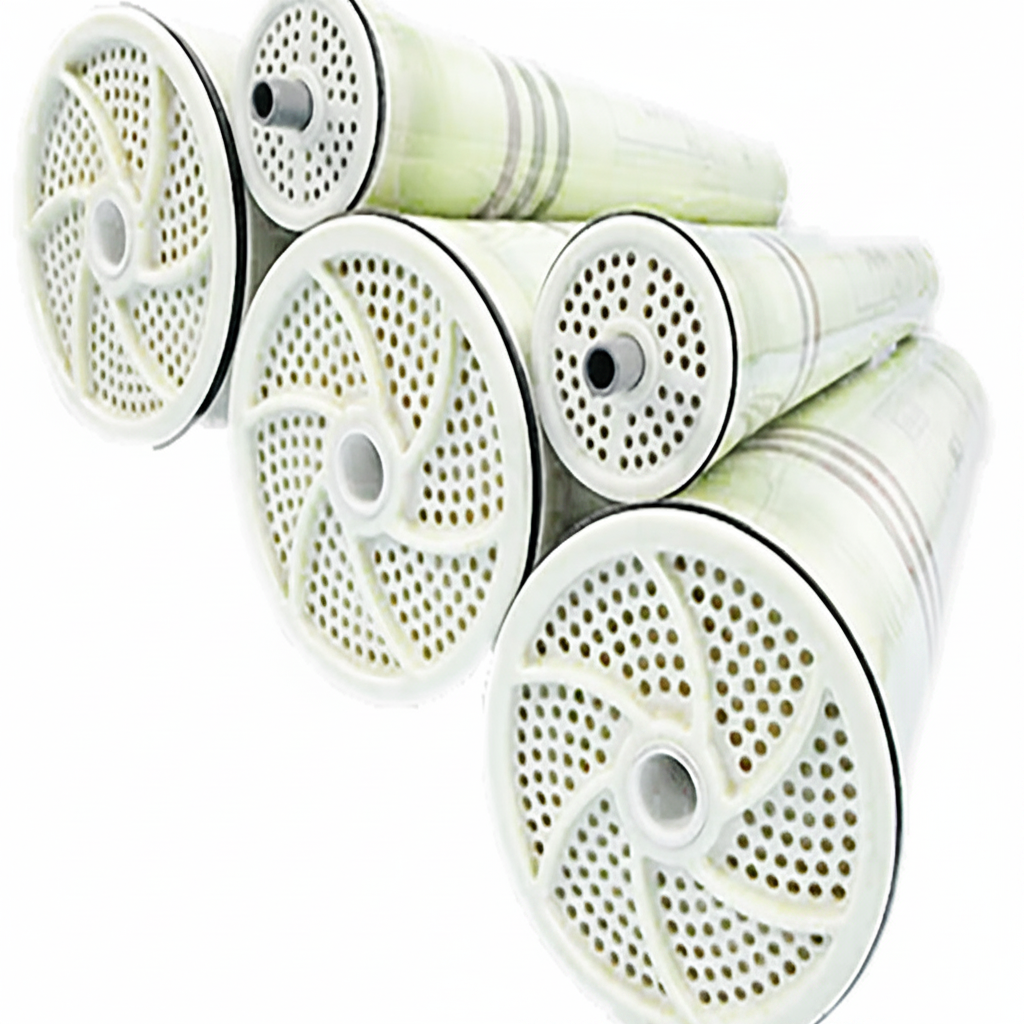

Hydranautics ESPA1-4040 RO Membrane
The Hydranautics ESPA1-4040 (manufactured by a Nitto Group Company) is a commercial-grade, Energy Saving Polyamide (ESPA) reverse osmosis membrane engineered to deliver maximum productivity and high salt rejection for water treatment systems. Utilizing advanced composite polyamide polymer technology, this 4-inch by 40-inch spiral-wound element is specifically designed for the purification of low TDS (Total Dissolved Solids) tap and brackish water sources. By maximizing membrane permeability without sacrificing structural integrity, it delivers uncompromising water purity for critical applications ranging from municipal drinking water production to light industrial process water operations.
Designed for peak efficiency in commercial reverse osmosis systems, the ESPA1-4040 yields a high permeate flow rate of 2,600 GPD (9.8 m³/d) while operating at an exceptionally low test pressure of just 150 PSI. This translates to a substantial reduction in the energy required to pressurize feed water, lowering overall operational expenditure (OPEX) by minimizing the wear and strain on high-pressure system pumps. Featuring 85 square feet of active membrane area, this element offers a nominal salt rejection rate of 99.3%, providing a consistently reliable, high-performance solution for facilities demanding both superior water quality and strict energy management.

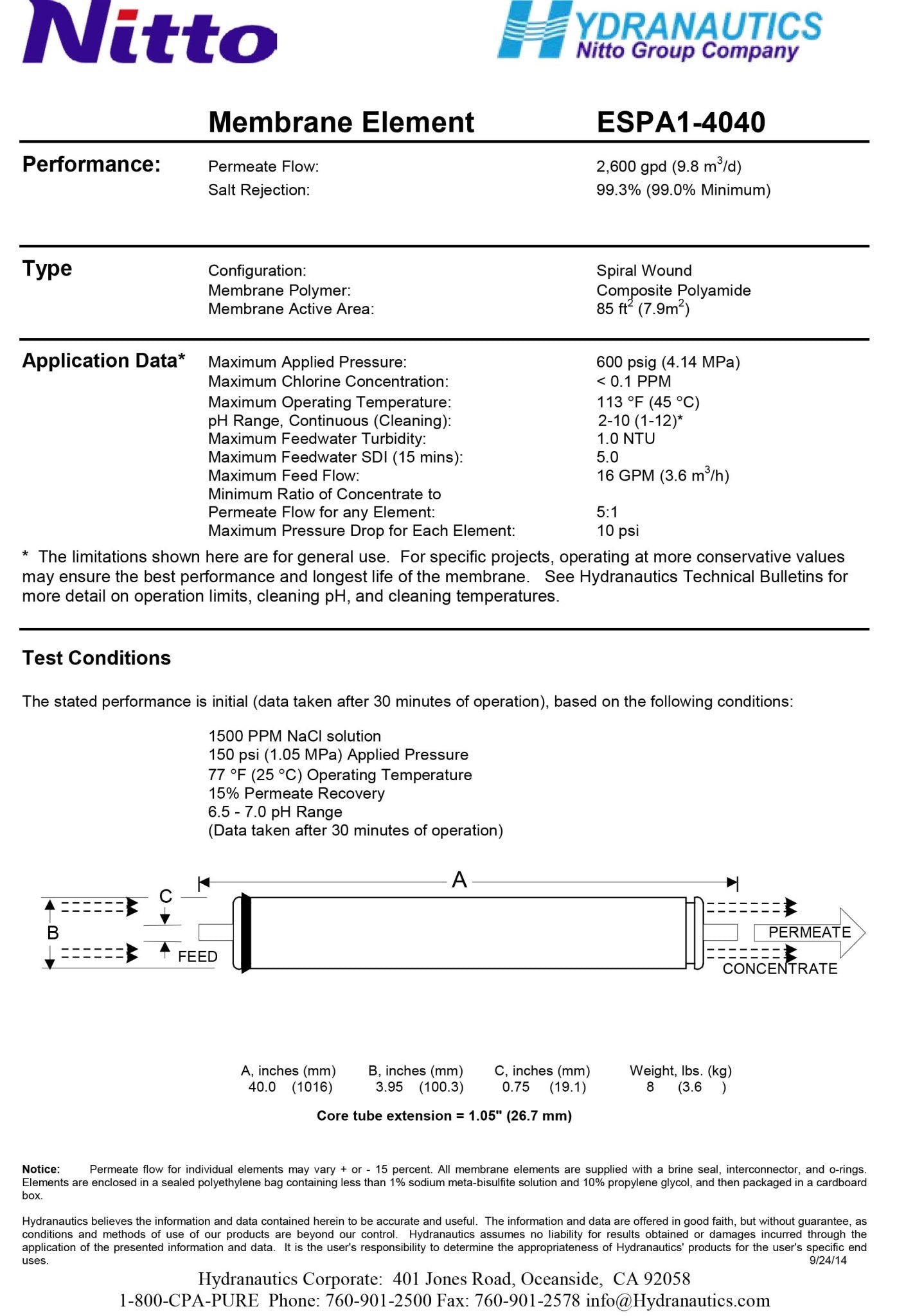

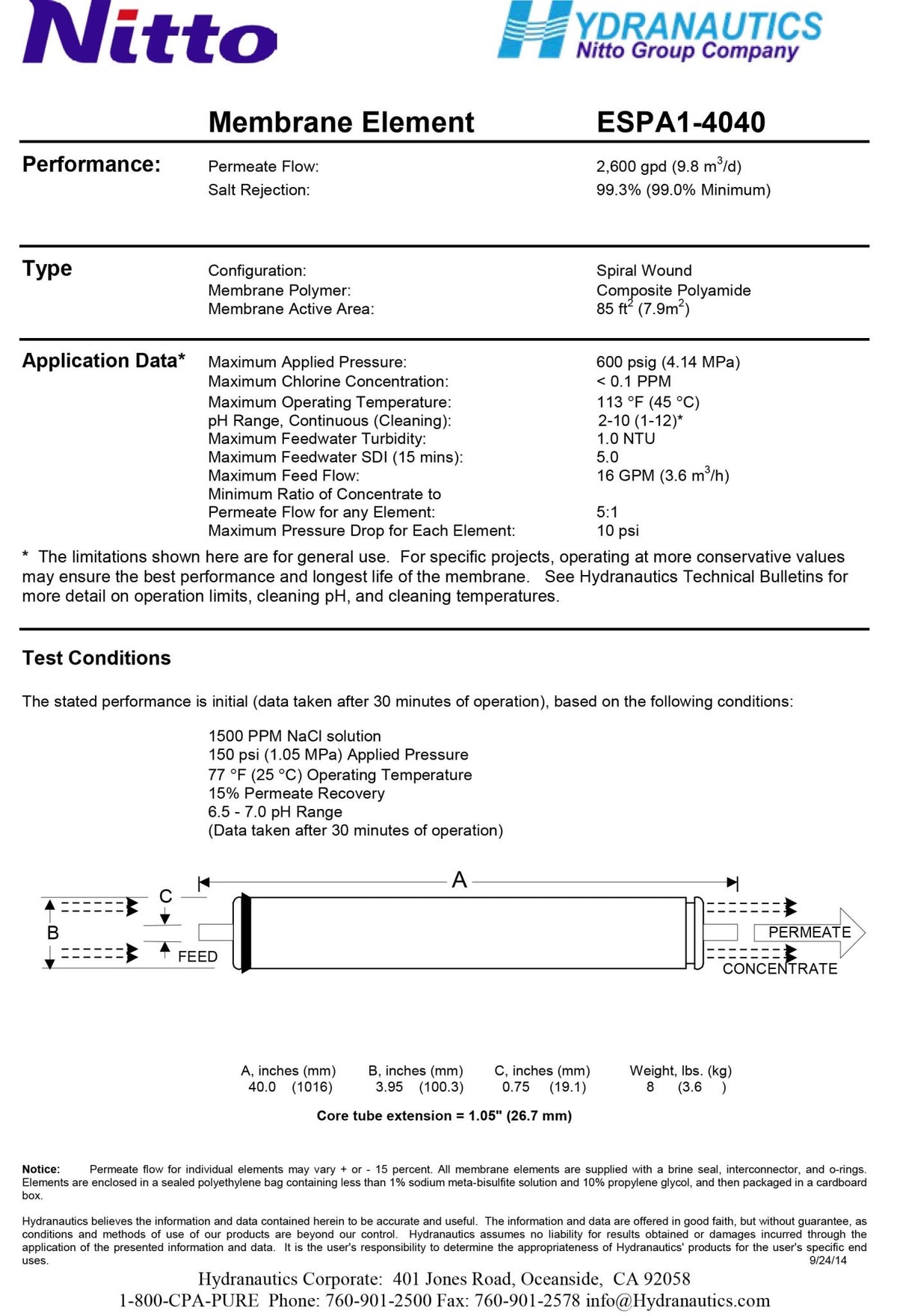

| SPECIFICATION | DETAILS |
| Model Number | ESPA1-4040 |
| Manufacturer | Hydranautics (Nitto) |
| Element Type | Energy Saving Polyamide RO Membrane |
| Membrane Technology | Composite Polyamide |
| Active Membrane Area | 85 ft² (7.9 m²) |
| Permeate Flow Rate | 2,600 GPD (9.8 m³/d) |
| Nominal Salt Rejection | 99.3% |
| Minimum Salt Rejection | 99.0% |
| Test Pressure | 150 PSI (1.05 MPa) |
| Max Applied Pressure | 600 PSI (4.14 MPa) |
| Max Operating Temp | 113°F (45°C) |
| Model # | Diameter x Length | GPD | Rejection | Typical Pressure |
| ESPA1-4040 | 4 x 40 inch | 2,600 | 99% | 150 |
