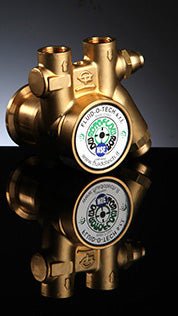

Fluid-o-Tech PA 3501 Rotoflow Rotary Vane Pump
The Fluid-o-Tech PA 3501 is a high-capacity, positive displacement rotary vane pump designed for precision fluid transfer at high pressures. As part of the renowned Rotoflow® series, this pump is engineered for continuous duty in demanding commercial and industrial environments, providing a smooth, pulse-free flow that is essential for sensitive systems.
The PA designation confirms the inclusion of an integrated, adjustable bypass valve, which provides critical over-pressure protection by recirculating fluid within the pump head when system limits are reached. Constructed with a heavy-duty brass housing and a stainless steel AISI 303 rotor, the PA 3501 utilizes self-lubricating carbon graphite vanes to ensure a long operational life with minimal maintenance. Its clamp-mount design allows for quick and secure attachment to standard motors, making it a versatile choice for high-volume reverse osmosis (RO) systems, cooling circuits, and beverage carbonation applications.
| SPECIFICATION | DETAILS |
| Model Number | PA 3501 |
| Manufacturer | Fluid-o-Tech (Rotoflow) |
| Pump Type | Rotary Vane (Positive Displacement) |
| Body Material | Brass |
| Bypass Valve | Built-in and Adjustable |
| Mounting Type | V-Band Clamp Mount |
| Max Flow Rate (1725 RPM) | 127 GPH (480 LPH) |
| Flow Rate @ 200 PSI | 117 GPH (443 LPH) |
| Max Discharge Pressure | 230 PSI (16 bar) |
| Max Static Pressure | 290 PSI (20 bar) |
| Inlet/Outlet Ports | 3/8" NPT Female |
| Internal Materials | Stainless Steel Rotor / Carbon Graphite Vanes |
| Max Operating Temp | 70∘C (158∘F) |
| Seal Material | Buna-N (NSF Approved) |
| Compliance | NSF 169, WRAS |
| Part # | Bypass | Mount | Body | 1450 RPM | 1725 RPM | Req. HP @ 200 PSI | ||||||
| 100 PSI | 200 PSI | 100 PSI | 200 PSI | |||||||||
| GPH | LPH | GPH | LPH | GPH | LPH | GPH | LPH | |||||
| PA 3501 | Yes | Clamp | Brass | 103 | 390 | 98 | 371 | 123 | 466 | 117 | 443 | 1/2 |
The PO 70-400 series positive displacement rotary vane pumps are available with brass or stainless steel housings with 3/8” GAS or NPT ports and internal relief valve. The nominal flow rates range between 70 and 400 l/h at 1450 rpm. Any vane pump of this series may be operated at 1725 rpm as well and will provide about 20% more capacity, with a maximum of 530 l/h. Maximum discharge pressure is 16 bar (230 psi). This series mounts directly to NEMA 48Y motors by means of a v-band clamp and to M71, M80 IEC and NEMA 56C motors by means of an adapter and relevant coupling.
