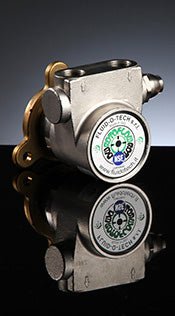

Fluid-o-Tech PA 0710 Rotary Vane Pump
The Fluid-o-Tech PA 0710 is a precision-engineered, positive displacement rotary vane pump designed for mid-range flow applications in water treatment and industrial fluid systems. As part of the reliable Rotoflow series, this pump features a robust brass body and is optimized for long-term durability and consistent performance. It is frequently utilized in commercial reverse osmosis (RO) systems, professional espresso machines, and cooling circulation loops where a steady, pulse-free flow is essential.
Designed with a clamp mount (V-band) interface, the PA 0710 is easily coupled to standard NEMA 48Y or 56C motors using the appropriate adapters. The internal pumping mechanism consists of a stainless steel rotor and high-quality carbon graphite vanes, providing excellent self-priming capabilities and a low-noise operational profile. This model also includes an integrated adjustable bypass valve, which allows users to regulate the discharge pressure and protects the system from potential over-pressurization.
| SPECIFICATION | DETAILS |
| Model Number | PA 0710 |
| Manufacturer | Fluid-o-Tech |
| Pump Type | Positive Displacement Rotary Vane |
| Body Material | Brass |
| Mounting Style | Carbonator Clamp (V-Band) |
| Port Size | 3/8" NPT Female |
| Flow Rate (1725 RPM) | 225 GPH (850 LPH) |
| Flow Rate (1450 RPM) | 190 GPH (720 LPH) |
| Test Pressure | 200 psi |
| Max Static Pressure | 290 psi (20 bar) |
| Max Discharge Pressure | 230 psi (16 bar) |
| Internal Bypass | Yes (Adjustable Relief Valve) |
| Max Operating Temp | 158°F (70°C) |
| Part # | Bypass | Mount | Body | 1450 RPM | 1725 RPM | Req. HP @ 200 PSI | ||||||
| 100 PSI | 200 PSI | 100 PSI | 200 PSI | |||||||||
| GPH | LPH | GPH | LPH | GPH | LPH | GPH | LPH | |||||
| PA 0710 | No | Clamp | Stainless steel | 25 | 95 | 20 | 76 | 30 | 114 | 24 | 91 | 1/4 |
The PO 70-400 series positive displacement rotary vane pumps are available with brass or stainless steel housings with 3/8” GAS or NPT ports and internal relief valve. The nominal flow rates range between 70 and 400 l/h at 1450 rpm. Any vane pump of this series may be operated at 1725 rpm as well and will provide about 20% more capacity, with a maximum of 530 l/h. Maximum discharge pressure is 16 bar (230 psi). This series mounts directly to NEMA 48Y motors by means of a v-band clamp and to M71, M80 IEC and NEMA 56C motors by means of an adapter and relevant coupling.
