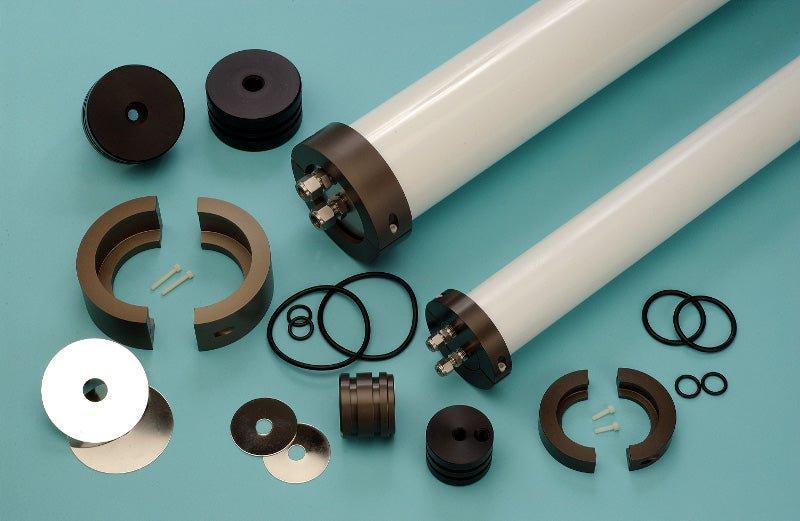

2540 Watermaker Housing 1000 PSI FRP Fiberglass (2.5" x 40")
This highly durable 2.5-inch by 40-inch membrane pressure vessel is engineered specifically for demanding seawater desalination and marine watermaker applications. Operating safely at pressures up to 1000 PSI, this universal-style housing is constructed from non-corrosive fiberglass reinforced plastic (FRP) in a natural finish. This robust FRP construction provides exceptional structural integrity and long-lasting reliability, ensuring your watermaker system remains protected against the harsh, high-salinity conditions typical of maritime and remote coastal environments.
Designed for streamlined assembly and maintenance, the housing features an end-entry configuration equipped with standard 1/4-inch feed, brine, and permeate ports. The engineering intentionally maximizes the separation between the permeate port and the feed/concentrate ports, allowing technicians to effortlessly integrate larger plumbing fittings during watermaker installation. The system is secured using anodized aluminum retaining clamp locking devices and flush-mount end plugs—available in either anodized aluminum or acetal co-polymer with stainless steel backing plates. Complete with FDA-approved ethylene propylene O-rings, this vessel guarantees a safe, leak-free seal for continuous, high-pressure watermaker operation.
| Specification | Details | Notes |
| Origin | Made in the United States | |
| Membrane Size | 2.5" x 40" | Universal style |
| Number of Membranes | 1 | |
| Housing Material | Fiberglass Reinforced Plastic (FRP) | Natural color (White optional) |
| Maximum Operating Pressure | 1000 PSI | |
| Test PSI (Applied Pressure) | Not Available | |
| Overall Length (OAL) | 43 inches | |
| Feed Port | 1/4" | |
| Brine Port | 1/4" | |
| Permeate Port | 1/4" | |
| End Plugs | Anodized Aluminum / Acetal Co-Polymer | Flush mount with SS backing plates |
| Retaining Device | Anodized Aluminum | Clamp locking devices |
| O-Rings | Ethylene Propylene | FDA approved (Silicon upon request) |
