2SF22SEEL CAT Triplex Positive Displacement Plunger Pump 2.2 GPM / 8.3 LPM 1200 PSI 3/8" NPT(F) Inlet / Discharge Port Size 1725 RPM Direct Drive 316 Stainless Steel

2SF22SEEL CAT Triplex Positive Displacement Plunger Pump 2.2 GPM / 8.3 LPM 1200 PSI 3/8" NPT(F) Inlet / Discharge Port Size 1725 RPM Direct Drive 316 Stainless Steel

• FREE SHIPPING to the Continental United States!

• Financing Options Available at Checkout Via Shop Pay & Paypal!

• For Quantity Discounts Contact Us for a Quote!

• For International Shipments Contact Us for a Quote!

• Call: 1 (760) 598-0189

• Email: hctivista@gmail.com

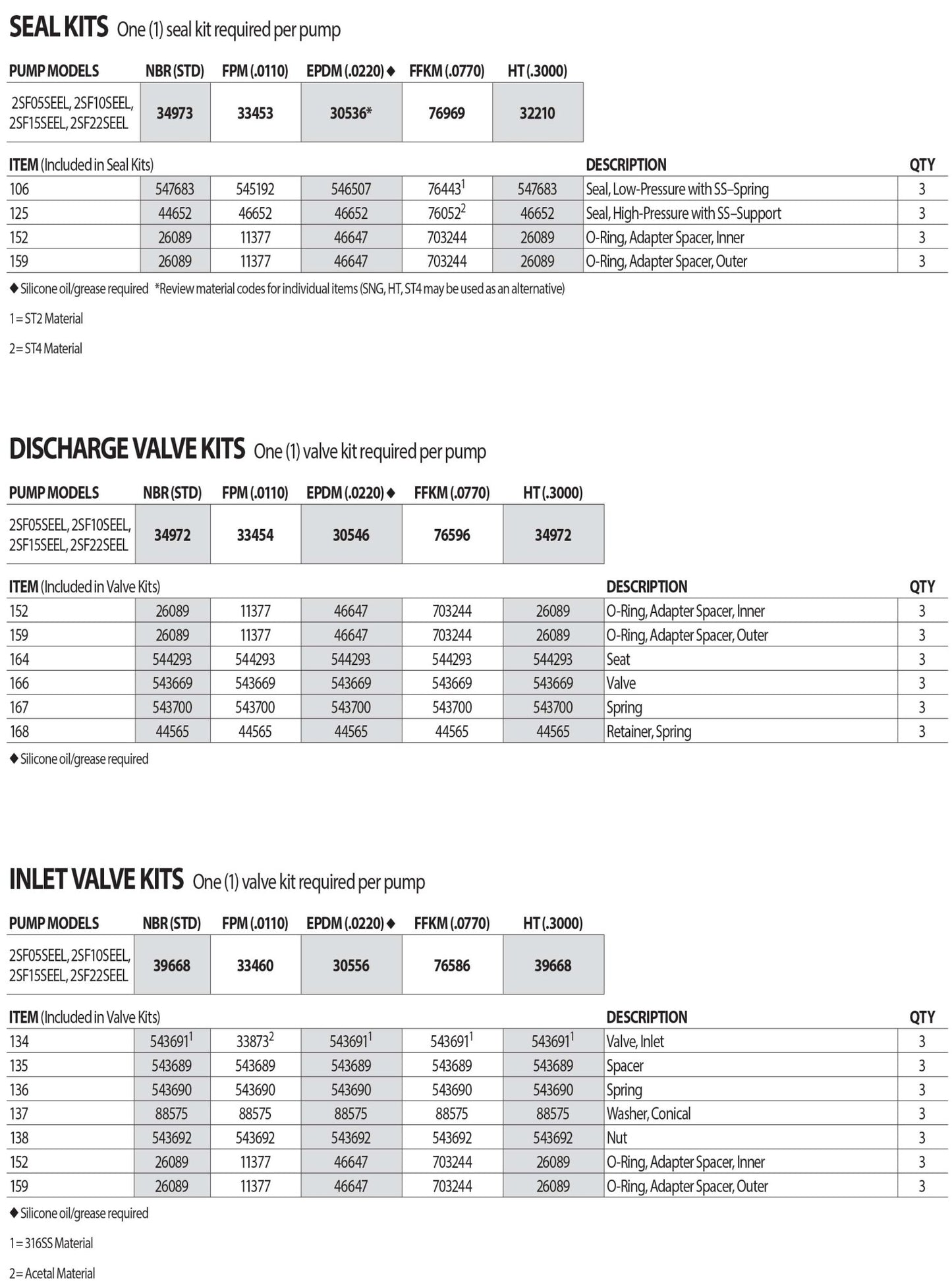

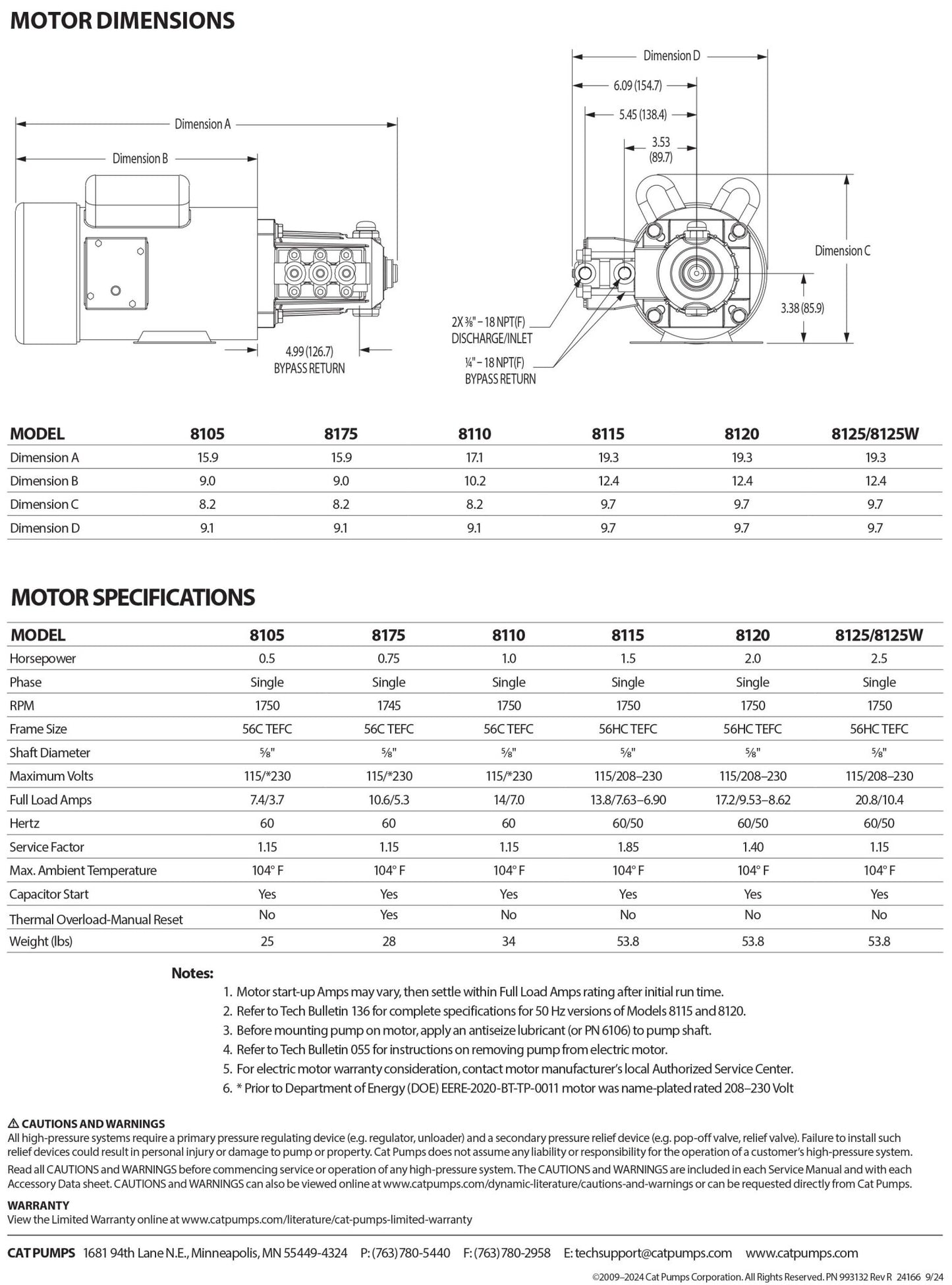

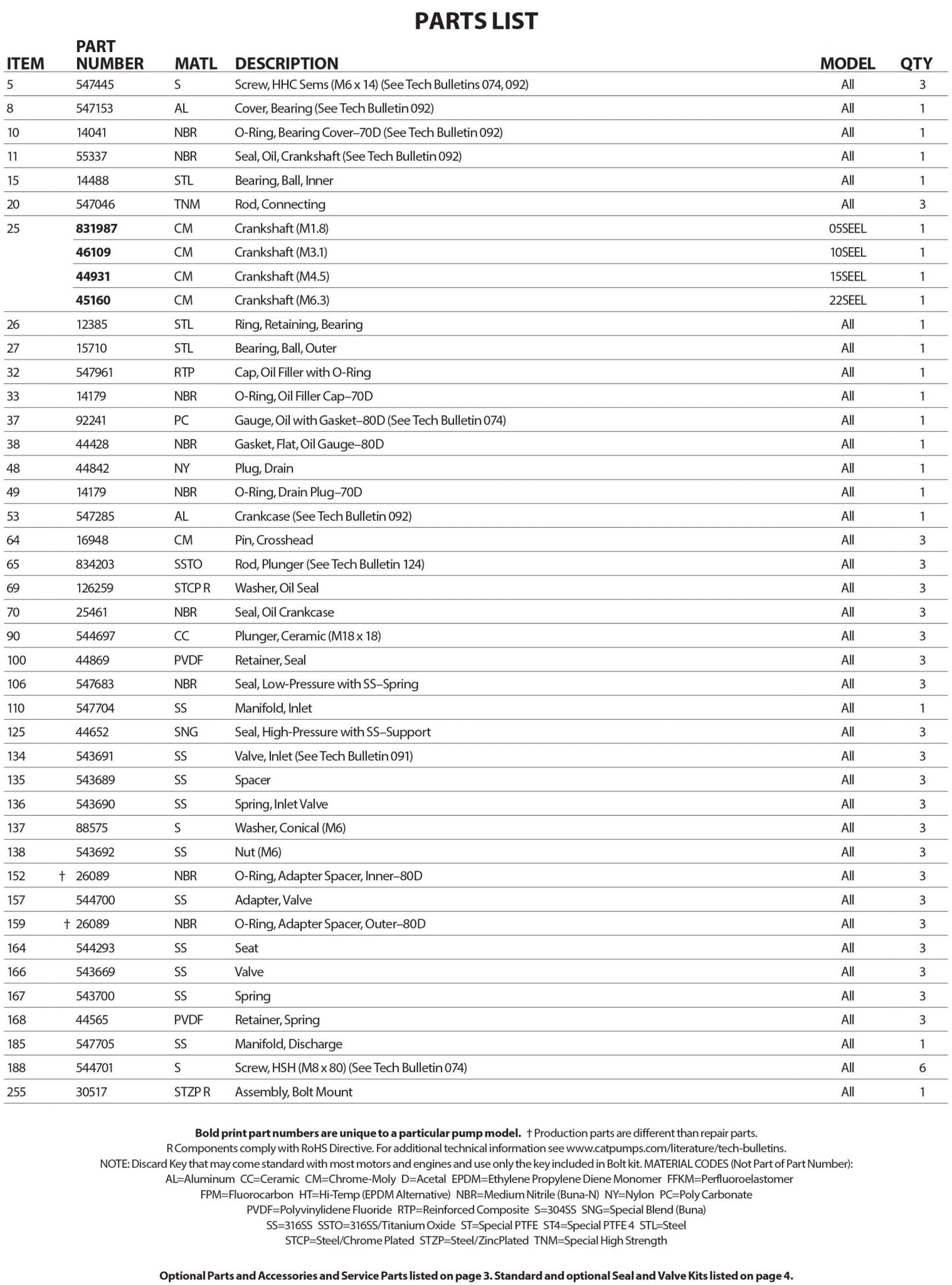

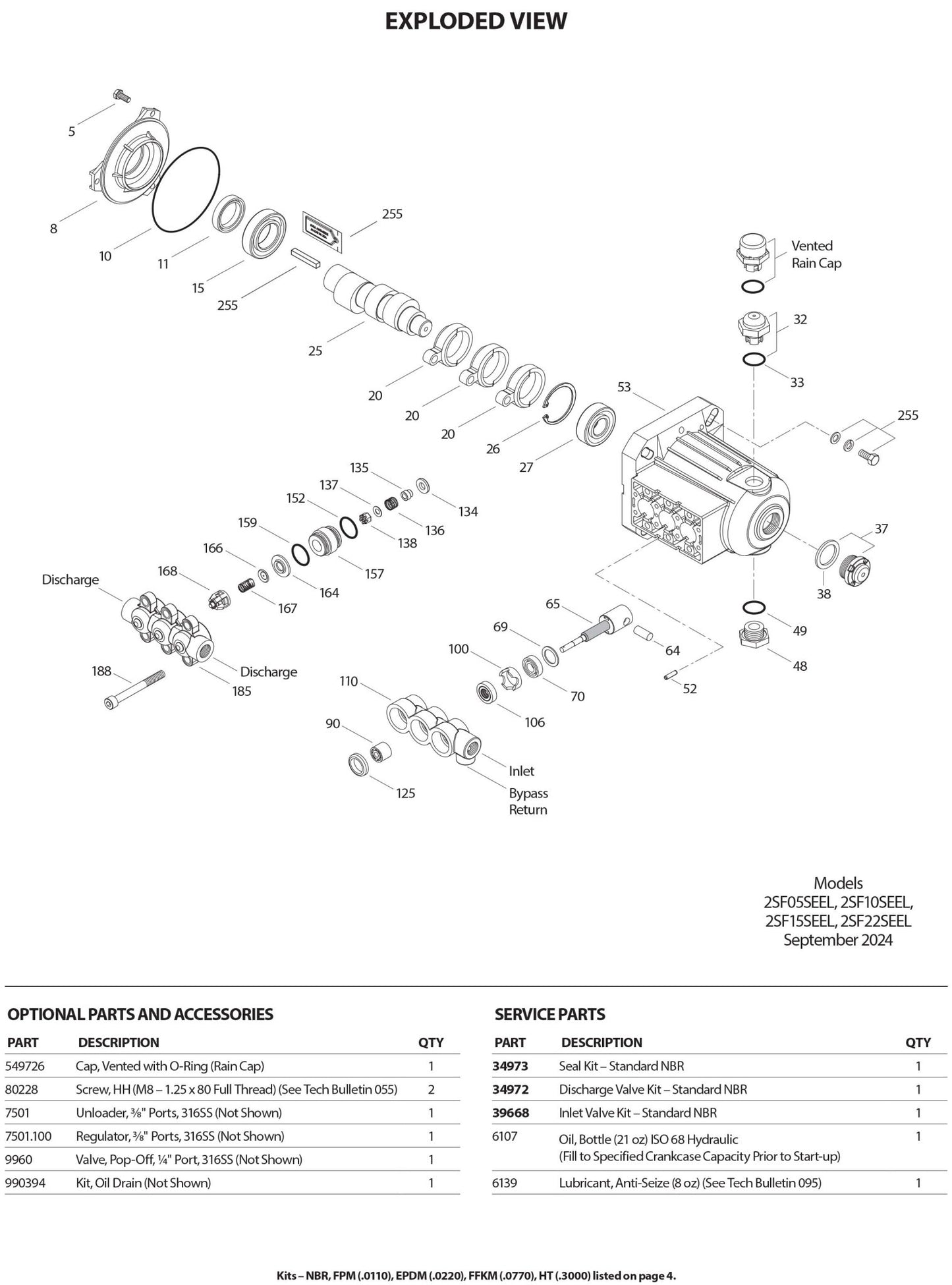

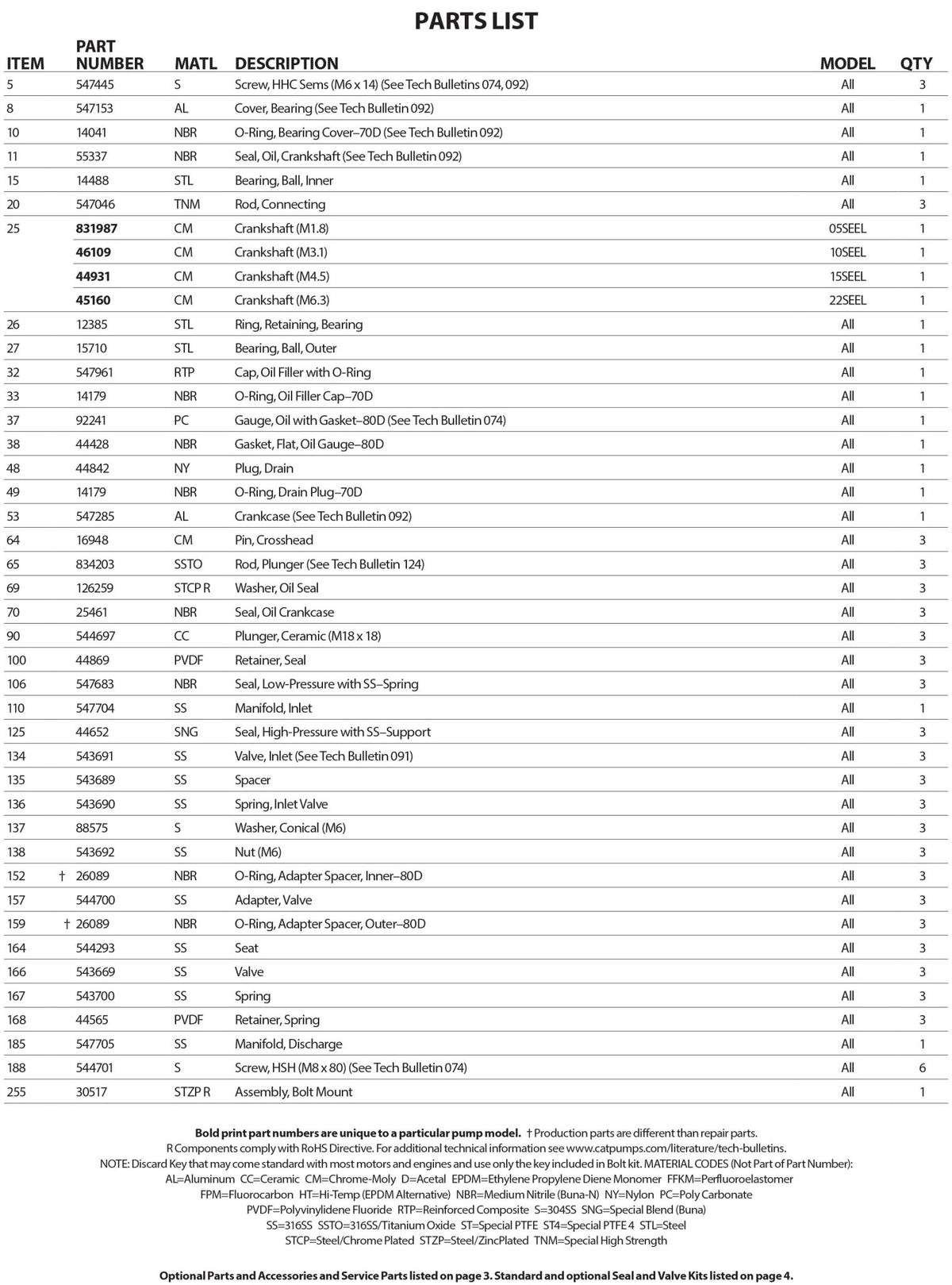

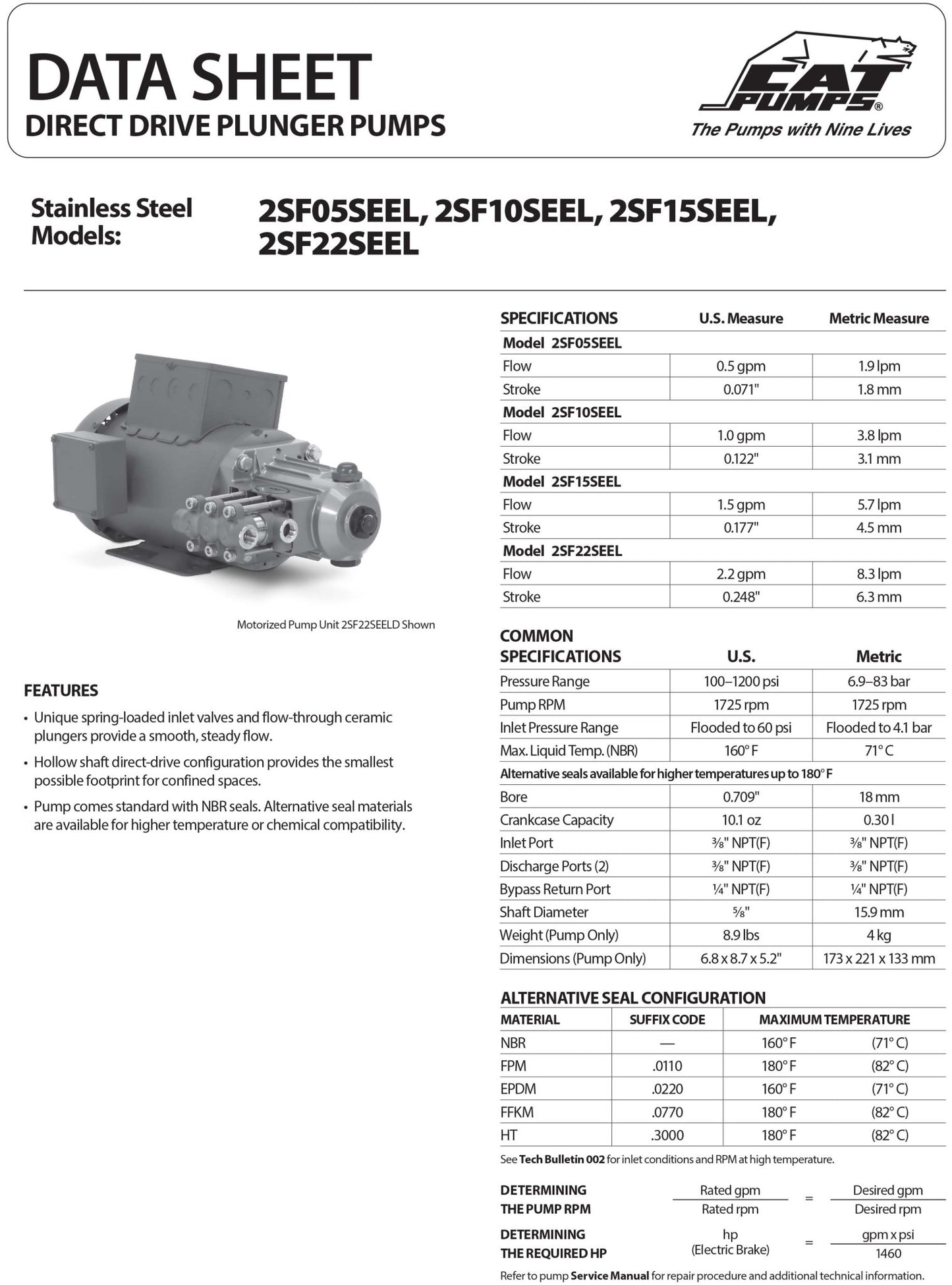

PLEASE REFERENCE DATA SHEETS AND TABLE BELOW

✨ CAT Pumps 2SF22SEEL Plunger Pump | 316 SS, 2.2 GPM / 1200 PSI

The CAT Pumps 2SF22SEEL is a robust, direct-drive triplex (three plunger rods) positive displacement plunger pump from the 2SF Series. Engineered for applications requiring high corrosion resistance, this pump features a 316 Stainless Steel manifold and solid ceramic plungers. The compact, hollow-shaft design is intended to bolt directly to a standard 56C-face electric motor, providing the smallest possible footprint for easy, compact installation.

The model suffix "SEEL" indicates a specific construction: Stainless Steel (manifold), EPDM (elastomers), EPDM (seals), and Left-hand shaft. It delivers a maximum flow of 2.2 GPM (8.3 LPM) and a maximum pressure of 1200 PSI (83 bar). Its construction makes it suitable for pumping various treated or chemically-enhanced fluids up to 160∘F (71∘C).
