311 Cat Pump Triplex Positive Displacement Plunger Pump 4 GPM / 15.1 LPM 2200 PSI 950 RPM Belt, Clutch, Flexible Coupling and Bellhousing Drive 316 Stainless Steel 1/2" NPT(F) Inlet Port 3/8" NPT(F) Discharge Port
Cat Pumps 311 5-Frame Triplex Plunger Pump
The Cat Pumps 311 is an industrial-duty, 5-frame triplex positive displacement plunger pump engineered for continuous-duty, high-pressure liquid transfer and cleaning systems. Constructed with a robust 316 stainless steel manifold and precision-machined 316 stainless steel valve assemblies, this pump offers superior corrosion resistance and durability in demanding environments. Its internal components feature high-density, polished solid ceramic plungers that provide a true wear surface to minimize friction and heat, ensuring extended seal life and reliable operation even under intense duty cycles.
Designed for consistent performance and low pulsation, the 311 delivers a flow rate of up to 4.0 GPM at a maximum operating pressure of 2,200 PSI. The pump utilizes an oil-bath crankcase design for optimal lubrication of the internal drive components, and its pre-set low-pressure seals are lubricated and cooled by the pumped liquid, providing secondary protection against external leaks. Featuring a standard 1/2" NPT(F) inlet and 3/8" NPT(F) discharge port configuration, it is highly versatile for various drive methods including belt, clutch, or direct-coupled configurations. This pump is a proven, high-efficiency solution for pressure washing, car wash systems, hydrostatic testing, and critical industrial process applications.
| Specification | Details |
| Model Number | 311 |
| Manufacturer | Cat Pumps |
| Pump Type | Triplex Plunger Pump (Positive Displacement) |
| Manifold Material | 316 Stainless Steel |
| Max Flow Rate | 4.0 GPM (15 lpm) |
| Max Operating Pressure | 2200 PSI (155 bar) |
| Test PSI (Applied Pressure) | 2200 PSI (155 bar) |
| Max Pump Speed | 950 RPM |
| Max Liquid Temp | 160°F (71°C) |
| Inlet Port Size | 1/2" NPT(F) |
| Discharge Port Size | 3/8" NPT(F) |
| Crankcase Capacity | 18 oz (0.55 L) |
| Weight | 19.8 lbs (9 kg) |
Max Volume: 4.0 GPM (15 L/M)
Max Discharge Pressure: 100 to 2200 PSI (7 to 155 Bar)
Max inlet Pressure: -5 to +60 PSI (-0.35 to +4 Bar)
Max RPM: 950 RPM
Max Horsepower: 5.5 HP
Bore: 0.787" (20 mm)
Stroke: 0.709" (18 mm)
Crankcase Capacity: 18 oz. (0.55 L)
Max Fluid Temperature: 160°F (71°C)
Inlet Ports: (2) 1/2" NPT
Discharge Ports: (2) 3/8" NPT
Shaft Diameter: 0.787" (20 mm)
Weight: 19.8 lbs (9 kg)

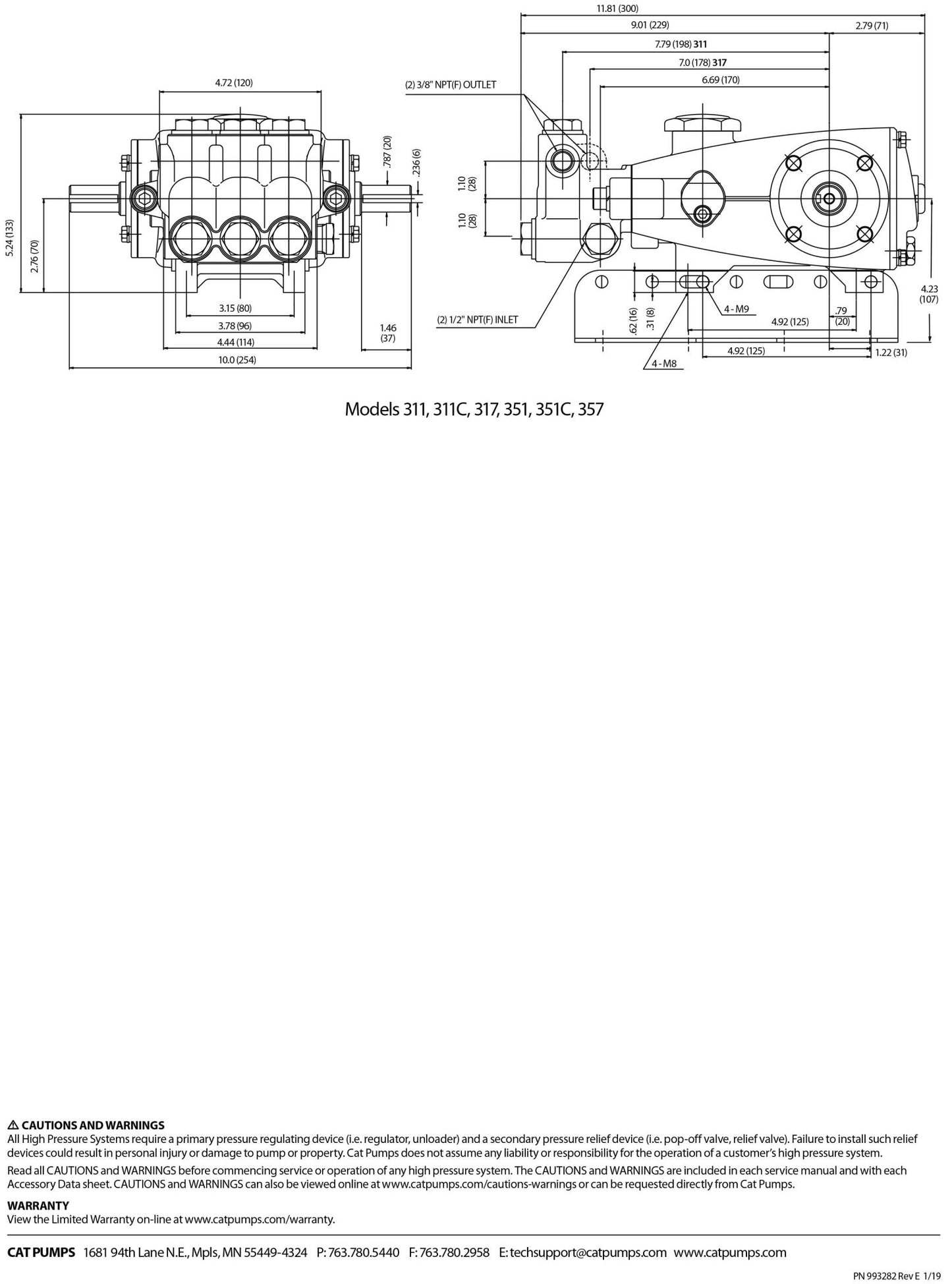

Dimensions Standard: 11.5" x 10.0 " x 5.28" (292 x 254 x 134 mm)
Dimensions OEM: 11.5" x 8.35 " x 5.28 " (292 x 212 x 134 mm)
Pulley Mounting: Either Side
| Alternate Specifications | |
|---|---|
|
Max Volume: 5 GPM (19 L/M) |
Other Models Available Upon Request
