3531CHS CAT Pump 36 gpm / 136 lpm 1200 PSI 800 RPM Belt, Flexible Coupling and Bellhousing Drive(s) 316 Stainless Steel 1 1/2" NPT(F) Inlet Port Size 1" Discharge Port Size
Couldn't load pickup availability
- FREE SHIPPING to The Contiguous United States! (Excluding Alaska & Hawaii)
- Found a Better Price? Contact Us, We'll See if We Can Get You a Better Deal!
- IN STOCK & SHIPS FAST from The United States!
- For Quantity Discounts Contact Us for a Quote!
- Customers Outside The Contiguous United States, Please Contact Us for a Quote!
- Call: 1 (760) 598-0189
- Email: hctivista@gmail.com
We are an Authorized Distributor for Cat Pumps
The CAT Pumps Model 3531CHS is an industrial-grade, 35-Frame triplex plunger pump designed for high-capacity, heavy-duty applications. It is constructed with a durable 316 Stainless Steel manifold and solid ceramic plungers, providing superior corrosion resistance for demanding tasks like high-volume reverse osmosis, saltwater injection, and chemical processing.
The key feature of the 3531CHS is its flushed inlet manifold (indicated by the 'C'), which allows for an external liquid source to provide added lubrication and cooling to the seals when pumping low-lubricity liquids (like deionized water) or high-temperature fluids. Rated for a maximum continuous flow of 36 GPM and pressure up to 1,200 PSI, this pump ensures high efficiency, low pulsation, and extended seal life, making it a reliable choice for continuous industrial operation.

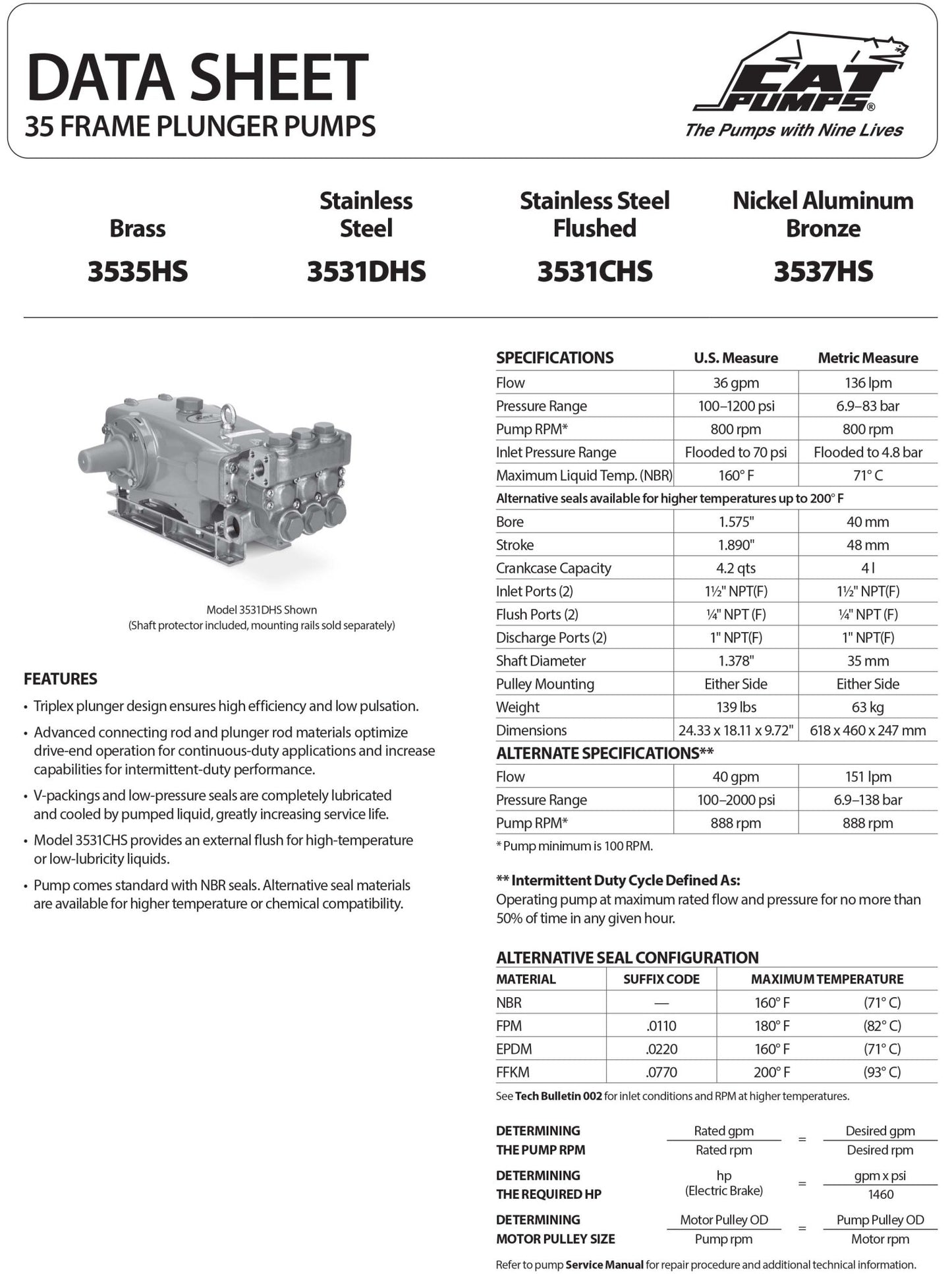

Specifications Table
| Characteristic | Specification | Units / Notes |
| Model | 3531CHS | 35-Frame Plunger Pump |
| Pump Type | Triplex Plunger Pump | Flushed Inlet Manifold |
| Manifold Material | 316 Stainless Steel (SS) | Excellent Corrosion Resistance |
| Max Flow Rate (Nominal) | 36 (136) | GPM (L/min) |
| Max Discharge Pressure | 1,200 (83) | PSI (Bar) |
| Max RPM (Nominal) | 800 | RPM |
| Max Liquid Temperature | 160 (71) | F (C) with standard NBR seals |
| Inlet Ports | (2) 1−1/2 inch NPT(F) | - |
| Discharge Ports | (2) 1 inch NPT(F) | - |
| Plungers | Solid Ceramic | - |
| Weight | 139 (63) | lbs (kg) |
