Cat Pumps

5CPQ6221G1.0220 CAT Pumps Quiet 5-Frame Plunger Pump Direct Drive integral Gearbox with a 1-inch input shaft size 316 Stainless Steel Right-Hand shaft rotation Block-style manifold 7.4 GPM 1,500 PSI EPDM Seals

5CPQ6221G1.0220 CAT Pumps Quiet 5-Frame Plunger Pump Direct Drive integral Gearbox with a 1-inch input shaft size 316 Stainless Steel Right-Hand shaft rotation Block-style manifold 7.4 GPM 1,500 PSI EPDM Seals

$3,999.99 USD
$3,999.99 USD
Sale Sold out

5CPQ6221G1.0220 CAT Pumps Quiet 5-Frame Plunger Pump Direct Drive integral Gearbox with a 1-inch input shaft size 316 Stainless Steel Right-Hand shaft rotation Block-style manifold 7.4 GPM 1,500 PSI EPDM Seals

  • FREE SHIPPING to the Continental United States!

  • For Quantity Discounts Contact Us for a Quote!

  • For International Shipments Contact Us for a Quote!

  • Call: 1 (760) 598-0189

  • Email: hctivista@gmail.com

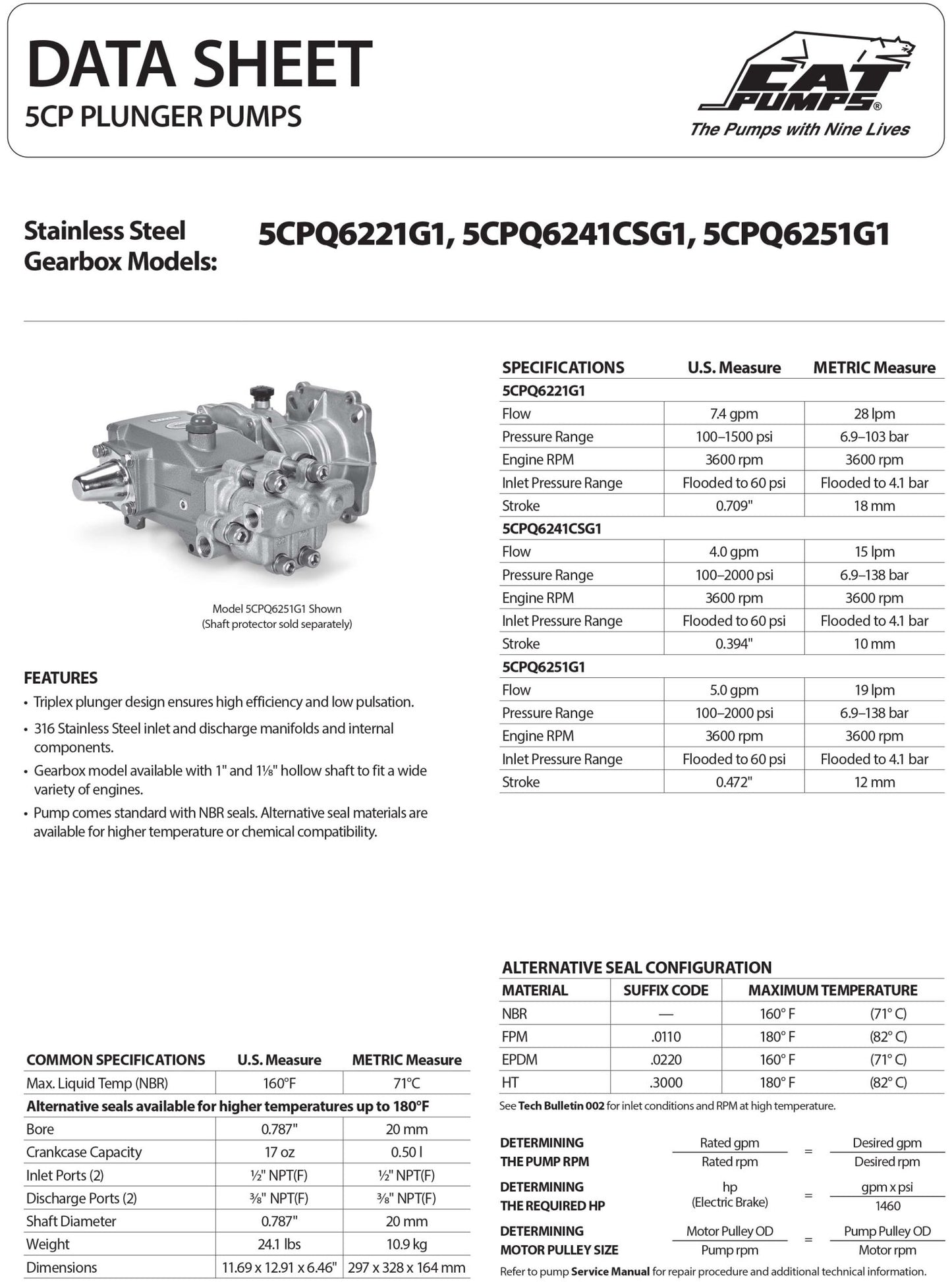

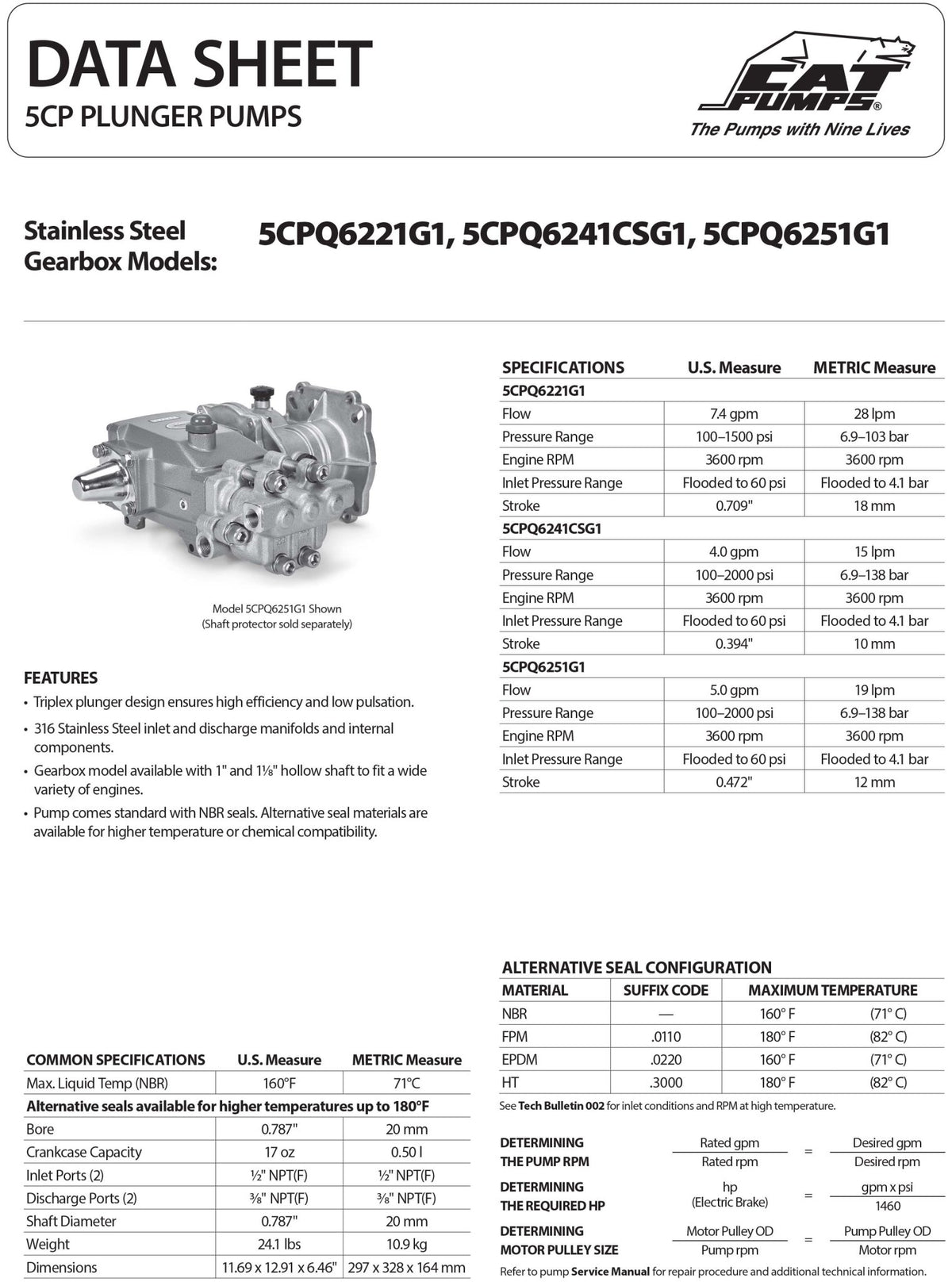

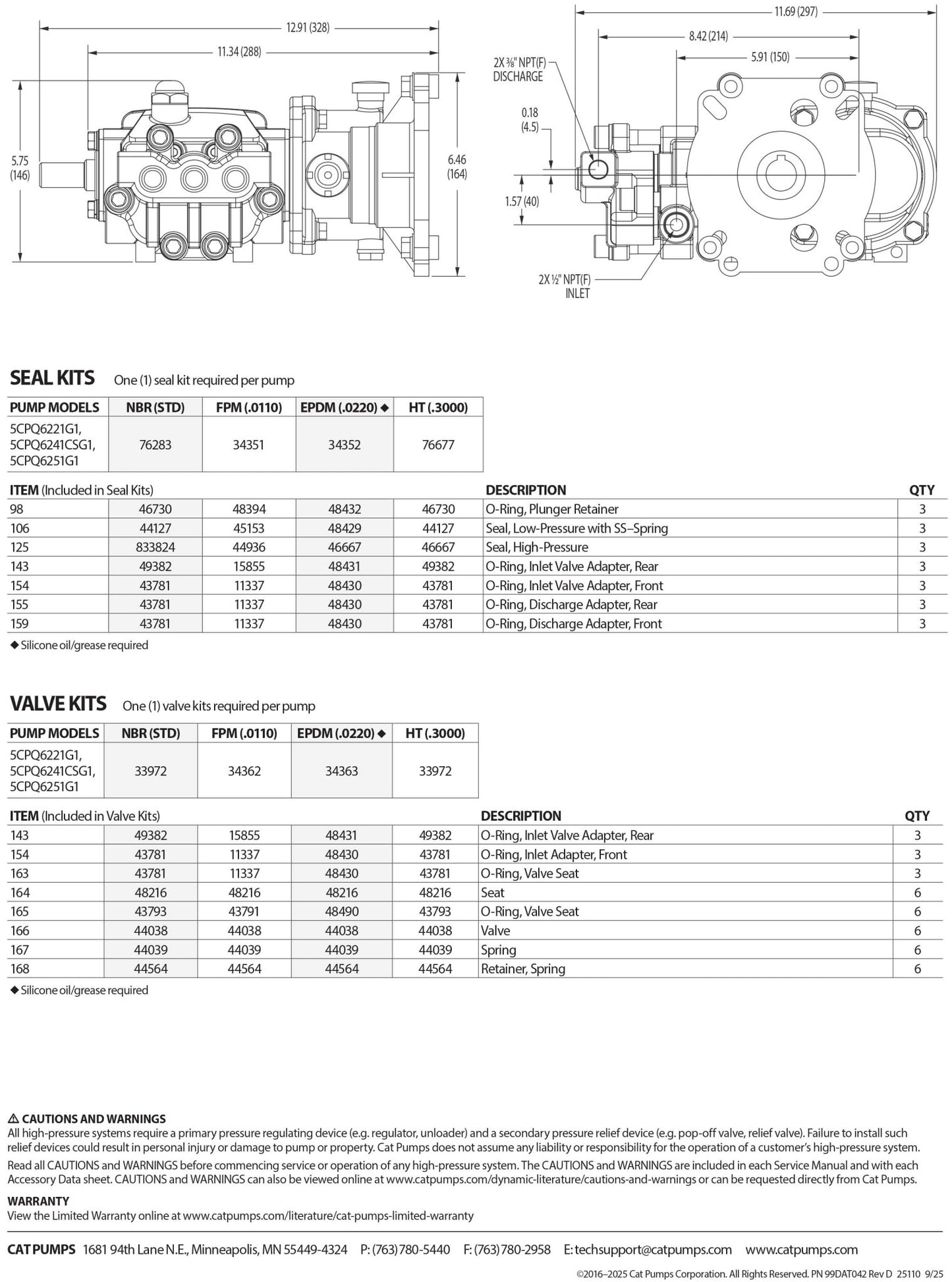

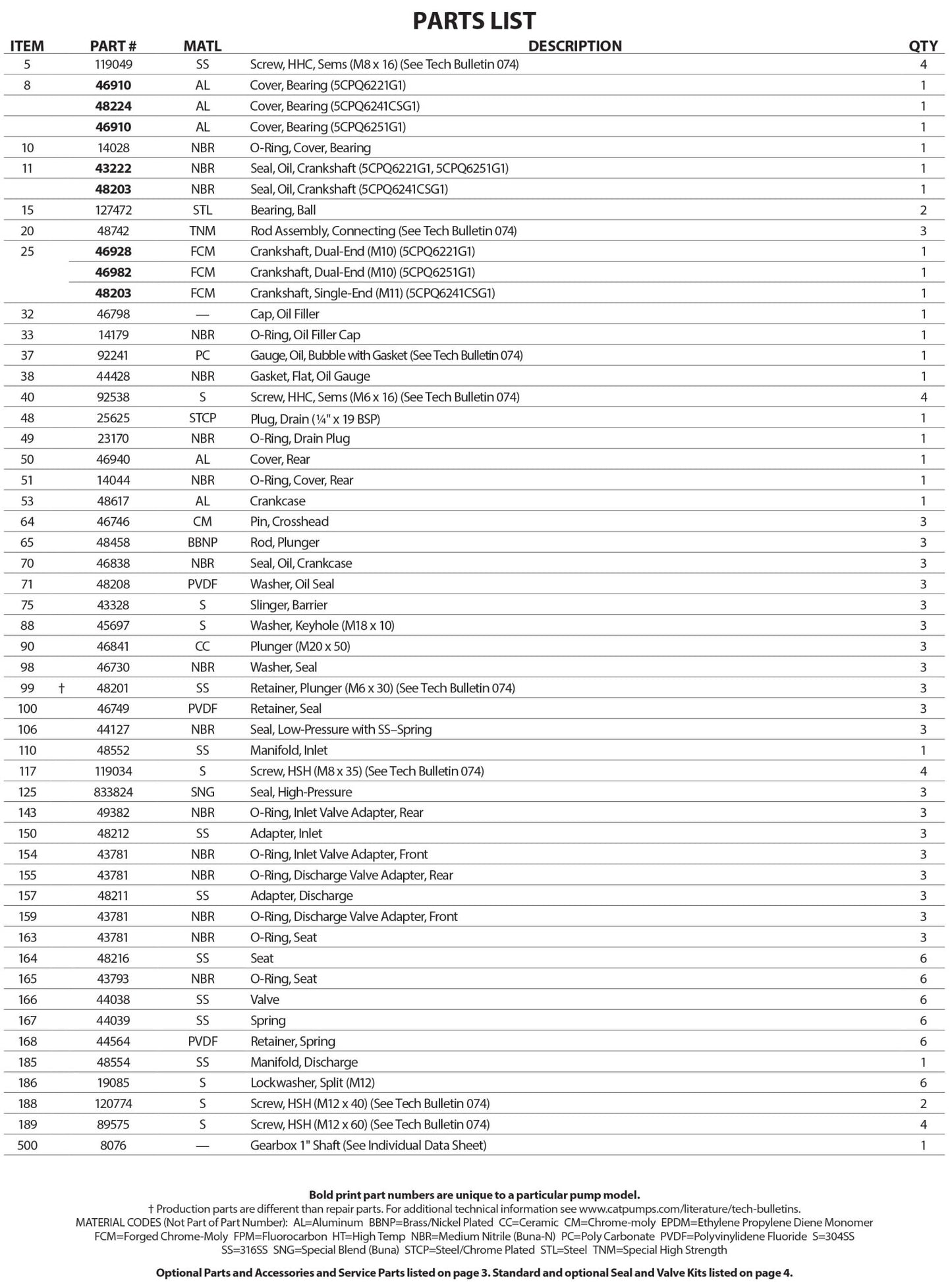

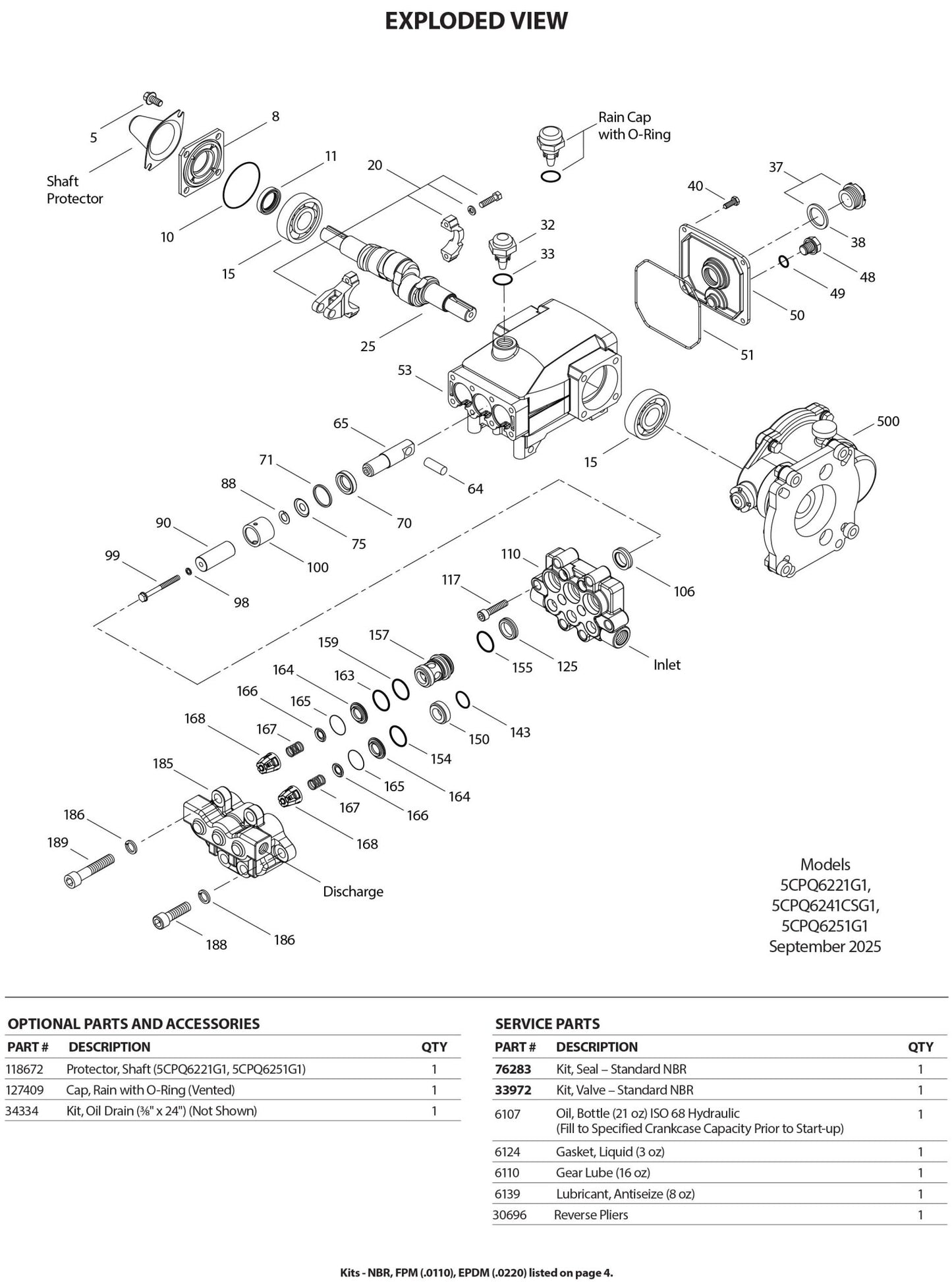

PLEASE REFERENCE DATA SHEETS AND TABLE BELOW



CAT Pumps 5CPQ6221G1.0220 Plunger Pump



Product Description



The CAT Pumps 5CPQ6221G1.0220 is a highly durable, industrial-duty 5-Frame triplex Plunger Pump specifically configured for high-flow, medium-pressure applications, such as large-scale pressure washing, reverse osmosis injection, and municipal cleaning systems.

Engineered with a robust construction, this pump features a 316 Stainless Steel Manifold for superior resistance to corrosive liquids and a Gearbox (G1) configuration designed for direct mounting to gas engines with a 1-inch straight horizontal shaft. This design simplifies installation and ensures optimal power transfer.

The pump delivers an outstanding flow rate of at a maximum pressure of . Crucially, this specific model uses the .0220 suffix, which confirms the use of EPDM (Ethylene Propylene Diene Monomer) seals and O-rings, providing excellent resistance to specific chemicals like ketones, hot water, and steam, while being rated for liquid temperatures up to . The "Q" designation indicates that this is a Quiet model, reducing sound levels by -6 dBa compared to non-"Q" models.



Specifications Table



Characteristic Specification Units / Notes
Manufacturer CAT Pumps -
Model Number 5CPQ6221G1.0220 "Q" Quiet Model, G1 Gearbox
Pump Type Triplex Plunger Pump -
Max Flow Rate 7.4 (28) GPM (LPM)
Max Pressure 1500 (103) PSI (Bar)
Inlet Port Size 1/2" NPT(F) -
Discharge Port Size 3/8" NPT(F) -
Max Engine RPM 3600 RPM (Engine Side)
Manifold Material 316 Stainless Steel Corrosion Resistance
Plunger Material Solid Ceramic Standard
Seal Material (Code .0220) EPDM Max Temp
Drive Type Gearbox Direct Engine Mount



TO VIEW DATA SHEETS LARGER RIGHT CLICK SHEET AND SELECT OPEN IMAGE IN NEW TAB
