6078 1/2 HP 115/230 Volt U.S. Motors Nidec 1800 RPM 48YZ Frame Carbonator Pump Motors
6078 1/2 HP 115/230 Volt U.S. Motors Nidec 1800 RPM 48YZ Frame Carbonator Pump Motors
Couldn't load pickup availability
6078 U.S. Motors Nidec 1/2 HP 115/230 Volt 1800 RPM 48YZ Frame Carbonator Pump Motors

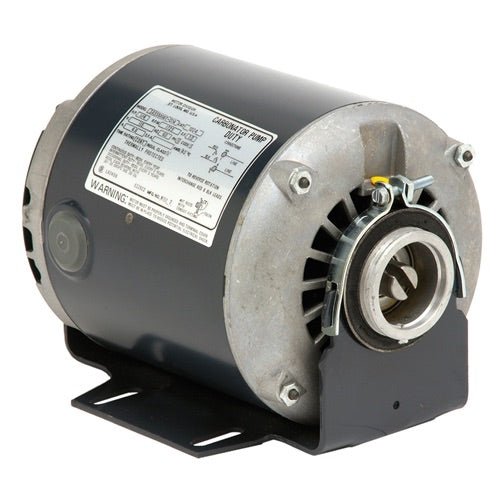

Nidec U.S. Motors 6078 Carbonator Pump Motor
The Nidec / U.S. Motors 6078 is a heavy-duty, 1/2 HP split-phase motor specifically engineered for continuous-duty carbonator and fluid delivery applications. Designed to handle the rigorous demands of commercial beverage dispensers, reverse osmosis (RO) systems, and specialized industrial water treatment loops, this motor utilizes a specialized 48YZ Frame with an extended hub and a short slotted shaft. This unique configuration allows for seamless, direct close-coupling to standard rotary vane pumps—such as the Fluid-o-Tech PO/PA series or Procon pumps—using a standard stainless steel V-band clamp.
Built for reliable performance, the 6078 operates at a base speed of 1725 RPM (1800 RPM synchronous) and features a versatile dual-voltage capacity of 120/240V. To ensure operational longevity and protect against stall conditions, it is equipped with an Automatic Reset Thermal Overload Protector and Class B insulation. Its Open Drip-Proof (ODP) enclosure is complemented by a resilient base mount, which effectively dampens harmonic vibration during operation, ensuring quiet, steady performance in both commercial and industrial environments.
| SPECIFICATION | DETAILS | NOTES | |
|---|---|---|---|
| Model Number | 6078 (S055NSW7302022J) | ||
| Manufacturer | Nidec / U.S. Motors | ||
| Motor Type | Split-Phase / Carbonator Pump | ||
| Horsepower | 1/2 HP | ||
| Speed (Base/Sync) | 1725 / 1800 RPM | ||
| Voltage | 120/240V (Single Phase) | ||
| Full Load Amps | 7.5 / 3.6 A | ||
| Frequency | 50/60 Hz | ||
| Frame Size | 48YZ | ||
| Enclosure Type | ODP (Open Drip-Proof) | ||
| Mounting Style | Resilient Base | ||
| Shaft Type | Special Slotted (Carbonator) | ||
| Thermal Protection | Automatic Reset | ||
| Rotation | Reversible |
| Part # | HP | Volts | Hz |
| 6078 | 1/2 | 115/230 | 50/60 |
