781.4410 5000 PSI 4.7 GPM CAT Pump , 8PFR1 (8-Frame Plunger Pump) , 316 Stainless Steel , Right-Hand Shaft Rotation , Block-Style Manifold, PTFE / Viton Seals
781.4410 5000 PSI 4.7 GPM CAT Pump , 8PFR1 (8-Frame Plunger Pump) , 316 Stainless Steel , Right-Hand Shaft Rotation , Block-Style Manifold, PTFE / Viton Seals
Couldn't load pickup availability
781.4410 5000 PSI 4.7 GPM CAT Pump , 8PFR1 (8-Frame Plunger Pump) , 316 Stainless Steel , Right-Hand Shaft Rotation , Block-Style Manifold , PTFE / Viton Seals
-
FREE SHIPPING to the Continental United States!
-
For Quantity Discounts Contact Us for a Quote!
-
For International Shipments Contact Us for a Quote!
-
Call: 1 (760) 598-0189
-
Email: hctivista@gmail.com

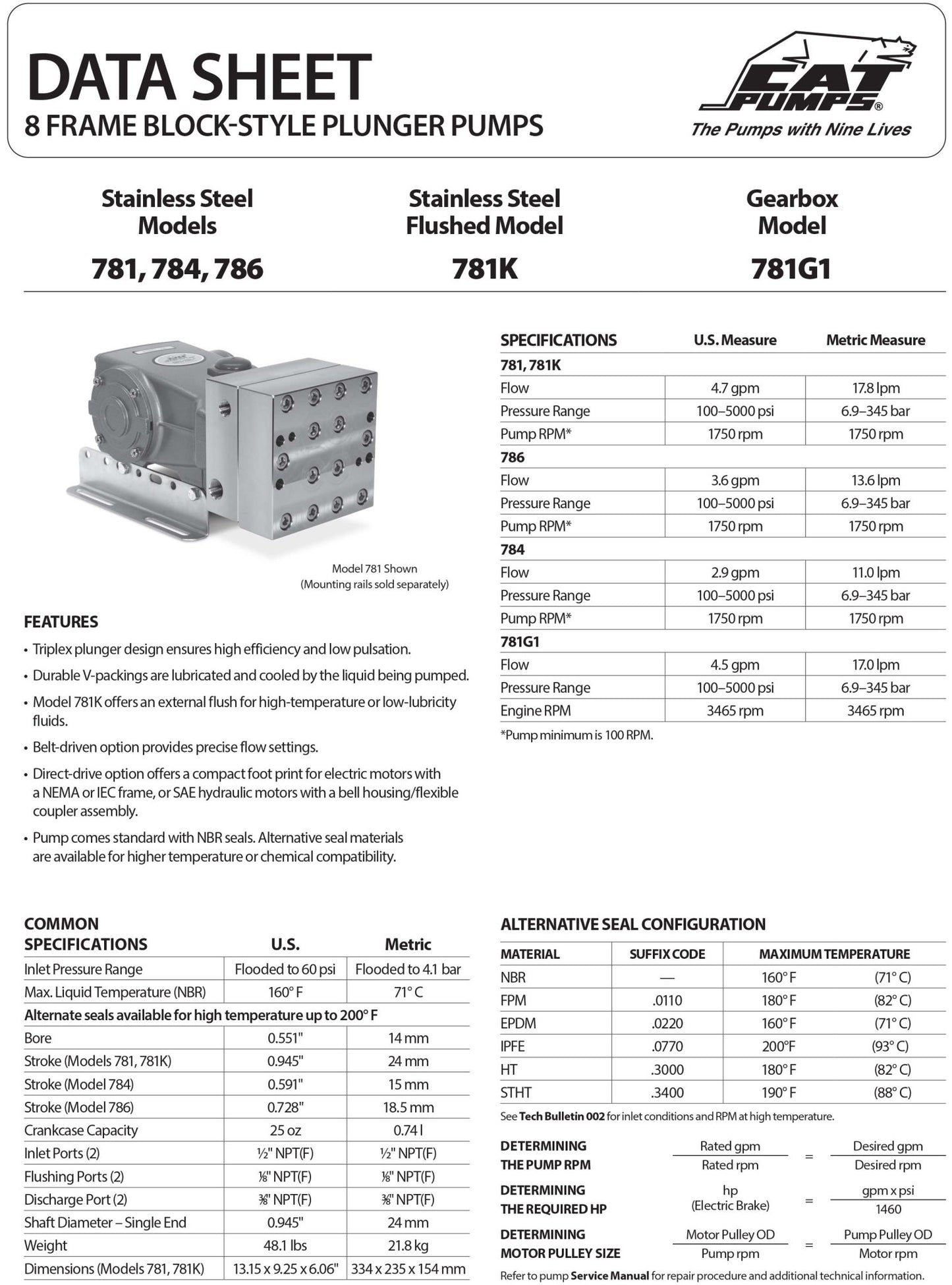

PLEASE REFERENCE DATA SHEETS AND TABLE BELOW
CAT Pumps 781.4410 8PFR1 Plunger Pump
Product Description
The CAT Pumps 781.4410 is an 8-Frame Triplex Plunger Pump built for rugged industrial applications requiring high pressure and moderate flow. As a Model 781 variant, this pump delivers a maximum flow of 4.7 GPM at a powerful maximum pressure of 5,000 PSI.
The pump features a highly corrosion-resistant fluid end constructed with a 316 Stainless Steel block-style manifold, 316 Stainless Steel valve assemblies, and durable Solid Ceramic Plungers. This configuration is ideal for use with aggressive liquids, including saltwater, industrial chemicals, and high-purity water systems.
Crucially, the .4410 suffix denotes an upgrade to the seal material for enhanced chemical resistance: it utilizes Special Blend PTFE high and low-pressure seals with FPM (Viton) O-Rings, allowing for maximum fluid temperatures up to 200∘F (93∘C). The triplex plunger design ensures high efficiency, low pulsation, and extended seal life, making it a dependable choice for demanding industrial and mobile applications.
Specifications Table
| Characteristic | Specification | Units / Notes |
| Part Number | 781.4410 | - |
| Model | 8PFR1 Plunger Pump | 8-Frame, Block-Style |
| Max Flow Rate | 4.7 (17.8) | GPM (LPM) |
| Max Pressure | 5,000 (345) | PSI (Bar) |
| Pump Speed | 1,750 | RPM |
| Manifold Material | 316 Stainless Steel | Corrosion Resistant |
| Plunger Material | Solid Ceramic | - |
| Seal Material | PTFE / FPM (Viton) | .4410 Suffix |
| Max Liquid Temp | 200 (93) | ∘F(∘C) |
| Inlet Port Size | 1/2 | " NPT(F) |
| Discharge Port Size | 3/8 | " NPT(F) |
| Crankcase Capacity | 25 (0.74) | oz. (L) |

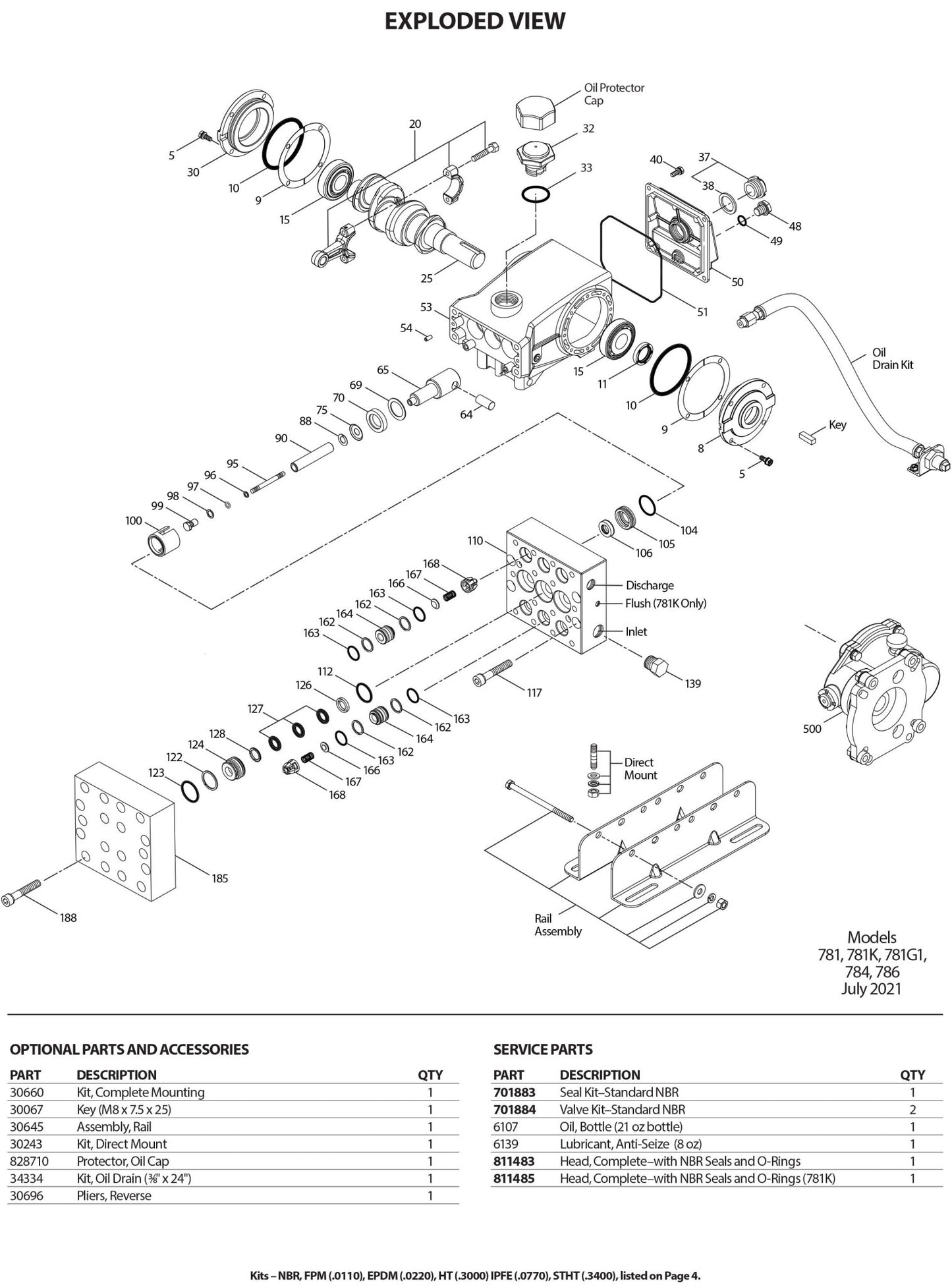

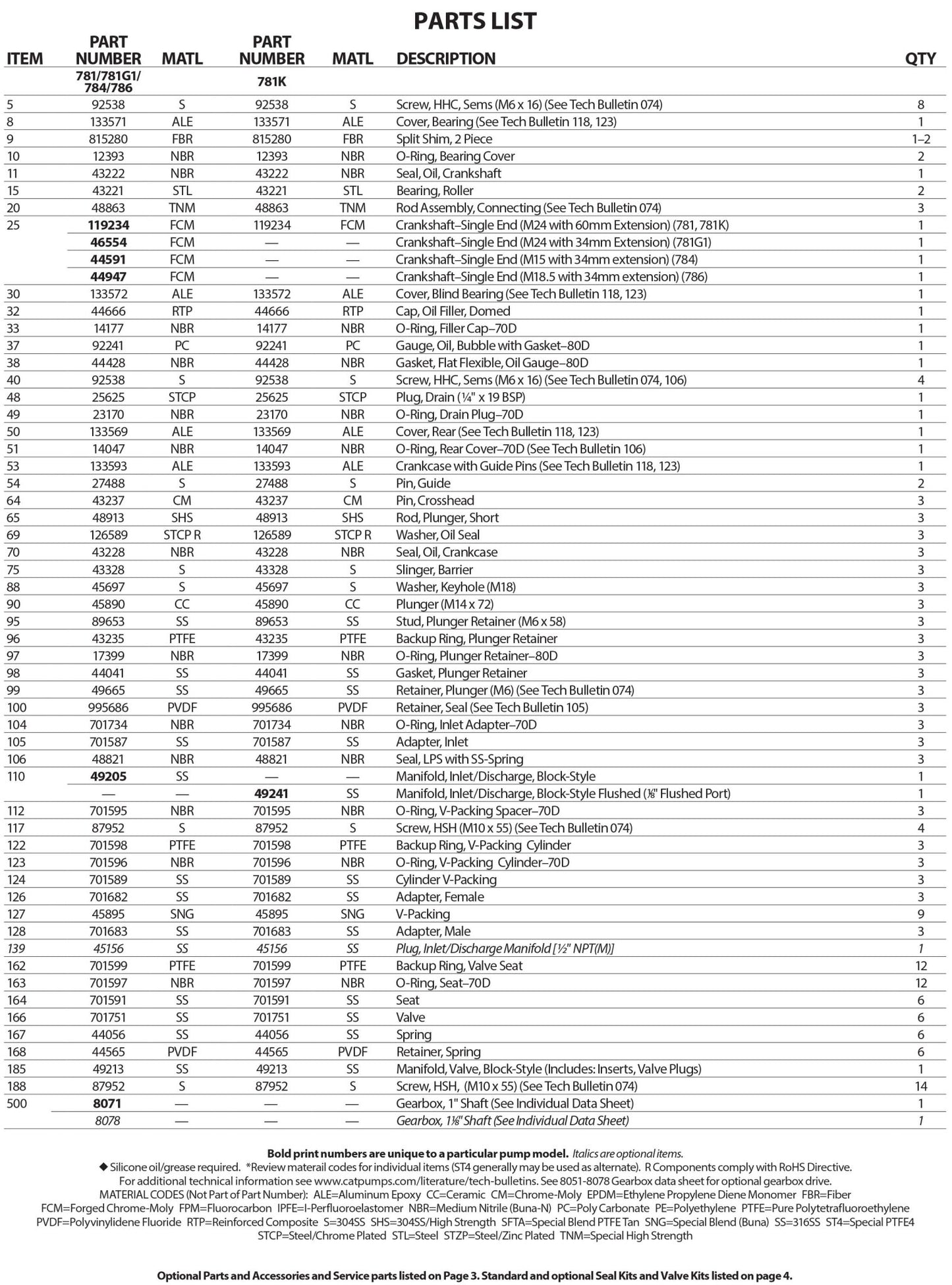

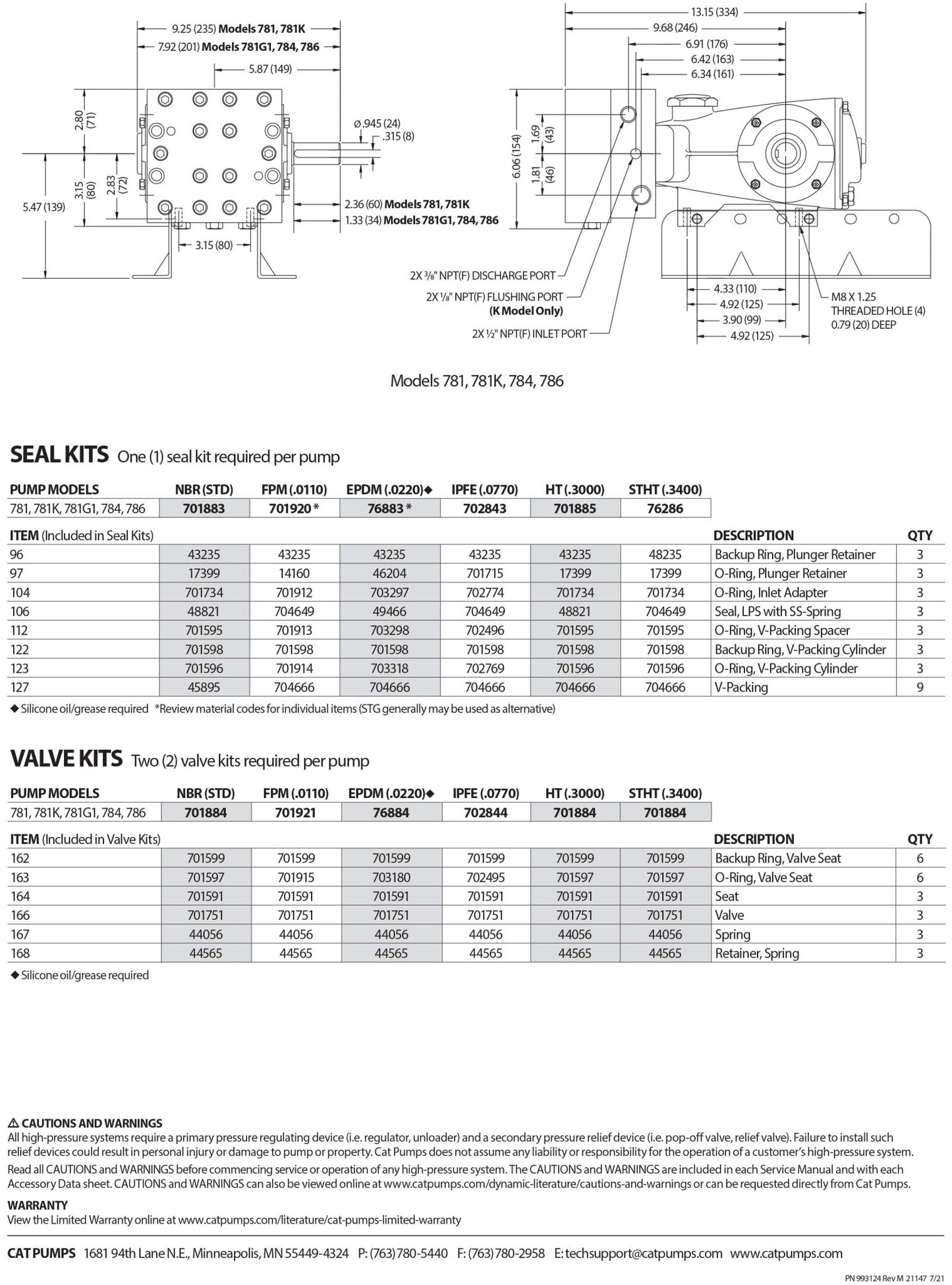

TO VIEW DATA SHEETS LARGER RIGHT CLICK SHEET AND SELECT OPEN IMAGE IN NEW TAB
