PLEASE REFERENCE DATA SHEETS AND TABLE BELOW

DuPont FilmTec BW30-400/34 Short Brackish Water RO Membrane Element

The DuPont FilmTec BW30-400/34 is a high-rejection Brackish Water Reverse Osmosis (RO) membrane element designed for applications where vessel space is restricted. While carrying the BW30-400 designation, the $/34$ suffix indicates a specialized 34-inch length ("stubby" element) rather than the standard 40 inches. This shorter length provides flexibility for specific system designs or retrofitting vessels that require shorter elements at the end of a series.

Utilizing FilmTec's advanced polyamide thin-film composite chemistry, the BW30-400/34 delivers superior performance, achieving a high nominal salt rejection of 99.5% for brackish water sources. The element maintains high productivity, offering a nominal permeate flow of 10,000 GPD, making it a powerful solution for commercial and industrial water treatment despite its reduced size.

Technical Specifications Summary

SPECIFICATION	DETAILS
Model Number	BW30-400/34
Manufacturer	DuPont Water Solutions (FilmTec)
Membrane Type	Reverse Osmosis (RO), Brackish Water
Membrane Polymer	Polyamide Thin-Film Composite
Nominal Permeate Flow	10,000 GPD (37 $\text{m}^3/\text{d}$ )
Nominal Rejection ( $\text{NaCl}$ )	99.5%
Test Conditions	2,000 ppm NaCl, 225 psi, $77^\circ\text{F}$
Active Area	$340 \text{ft}^2$ (31.6 $\text{m}^2$ )
Element Size	8.0 in D x 34 in L
Max Applied Pressure	600 psi (41 bar)
Max Operating Temp	$113^\circ\text{F}$ ( $45^\circ\text{C}$ )

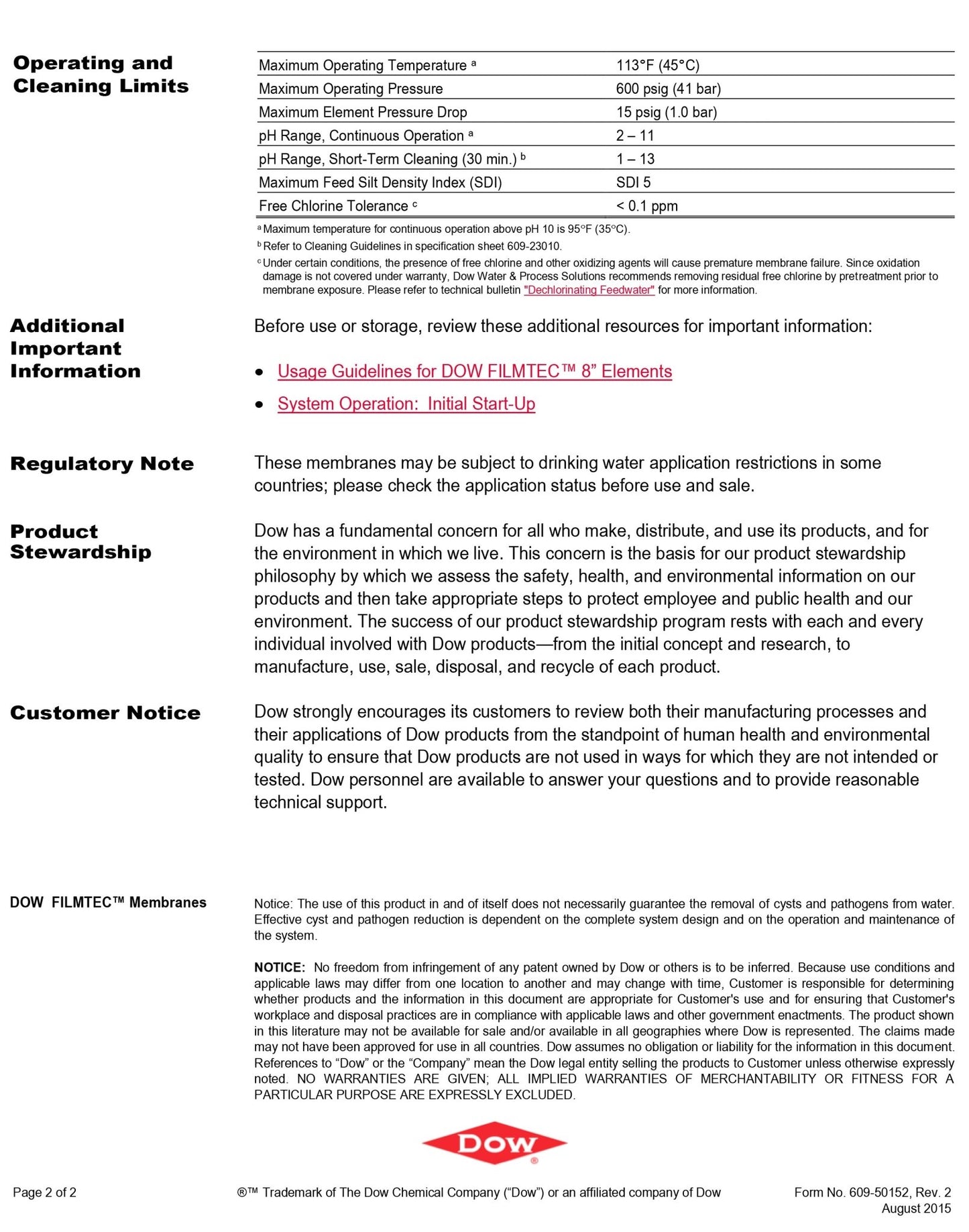

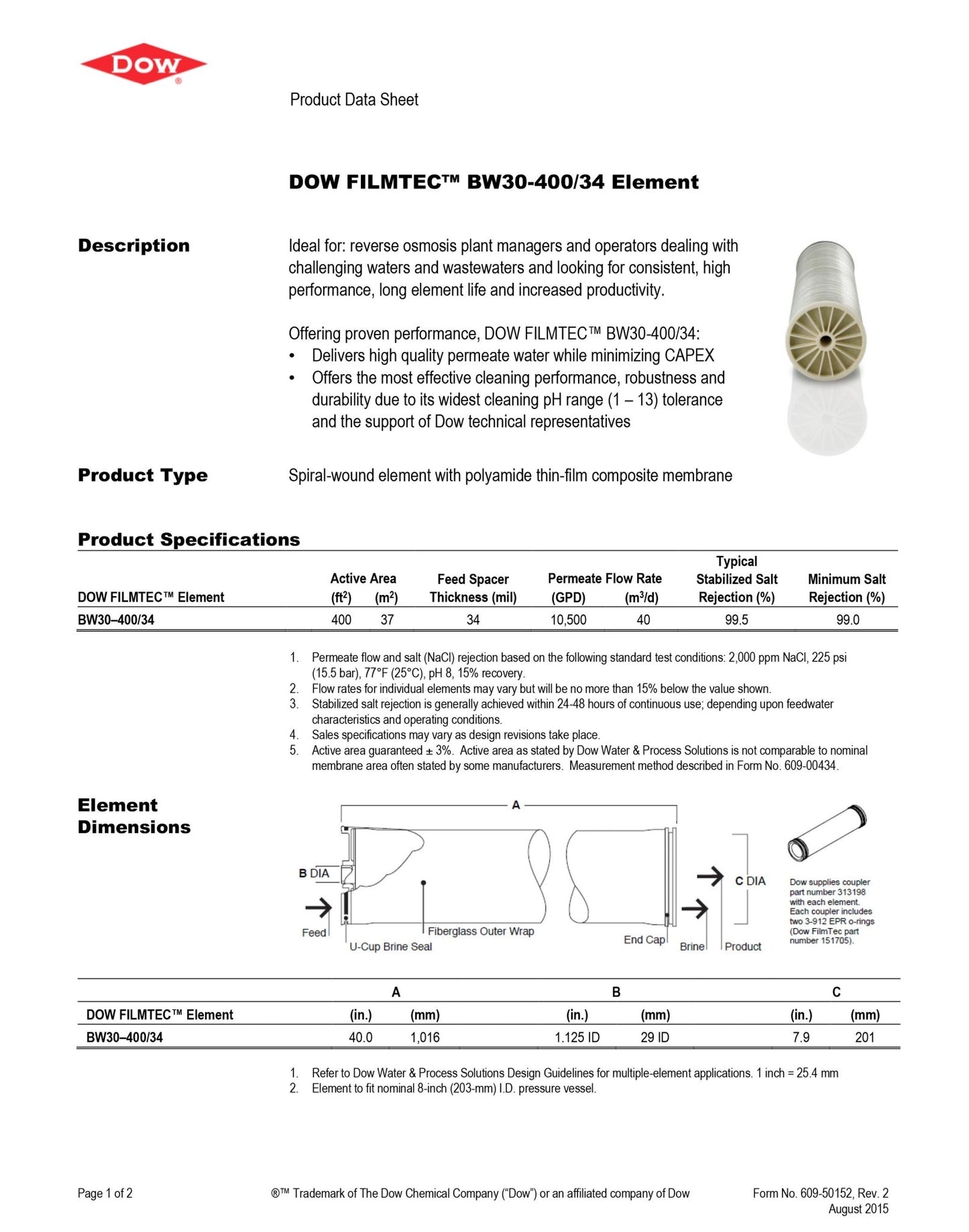

TO VIEW DATA SHEET LARGER RIGHT CLICK SHEET AND SELECT OPEN IMAGE IN NEW TAB
